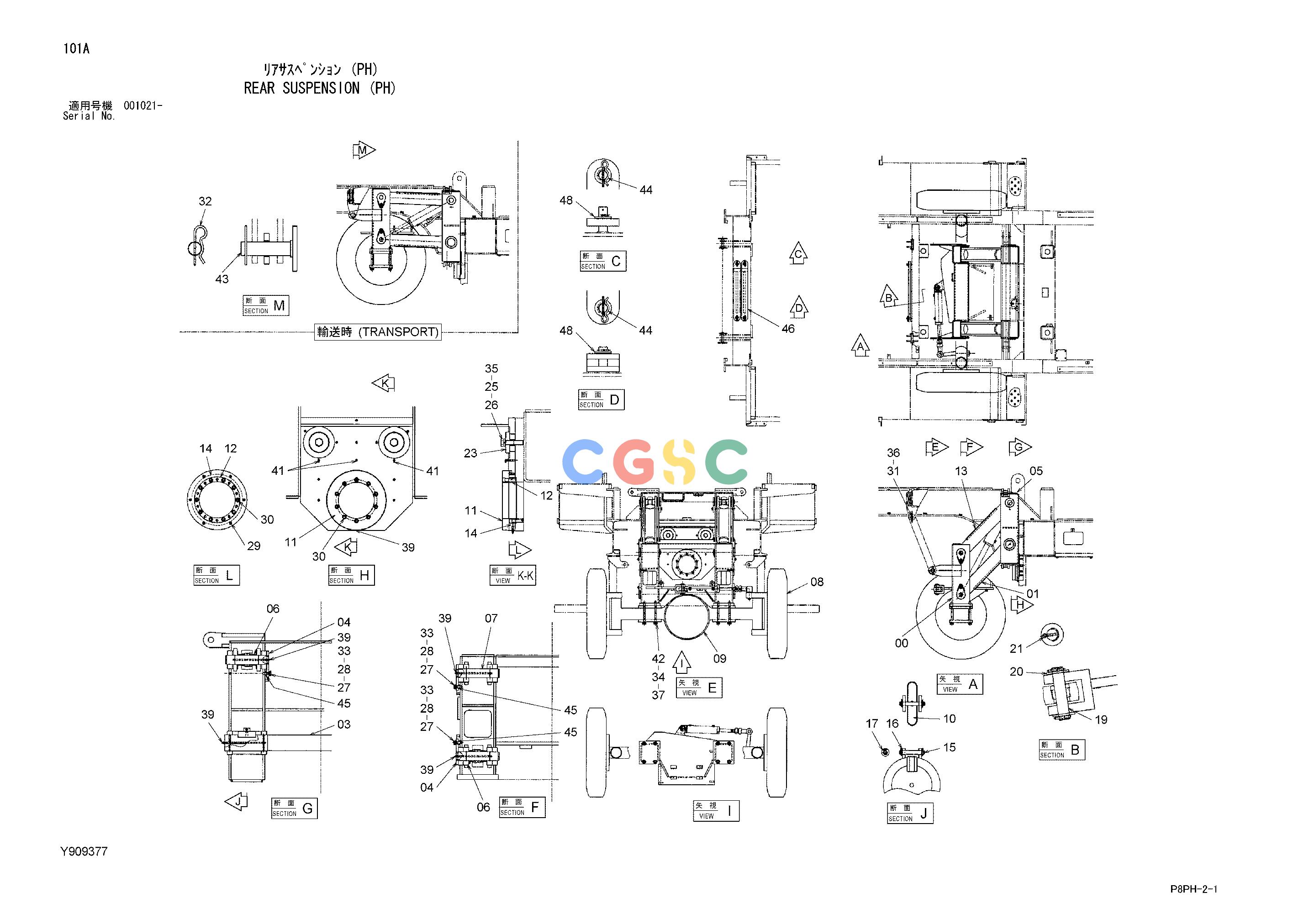

日立零件查询（AR2000）REAR SUSPENSION (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y600435 | [1] | FRAME;REAR | |
| 01. | Y802013 | [2] | LINK | |
| 03. | Y301724 | [1] | SHAFT | |
| 04. | Y971297 | [4] | PIN | |
| 05. | Y600420 | [1] | FRAME | |
| 06. | Y411706 | [8] | RING | |
| 07. | Y971296 | [2] | PIN | |
| 08. | Y909123 | [2] | TIRE ASS'Y | |
| 0800. | Y411243 | [2] | RIM;WHEEL | |
| 0801. | Y411226 | [2] | TIRE | |
| 09. | Y411237 | [1] | AXLE;DRIVESTEER | |
| 10. | Y409192 | [2] | KEY | |
| 11. | Y301415 | [1] | FLANGE | |
| 12. | Y301416 | [1] | RING | |
| 13. | Y802014 | [2] | LINK | |
| 14. | Y301417 | [1] | RING | |
| 15. | Y411588 | [2] | PIN | |
| 16. | A590108 | [4] | WASHER;PLANE | |
| 17. | A763020 | [4] | PIN;SPLIT | |
| 19. | Y411407 | [1] | PIN | |
| 20. | A590127 | [2] | WASHER;PLANE | |
| 21. | A765050 | [2] | PIN;SPLIT | |
| 23. | Y411768 | [2] | WASHER | |
| 25. | A590124 | [2] | WASHER;PLANE | |
| 26. | J922402 | [2] | BOLT | |
| 27. | J901240 | [6] | BOLT | |
| 28. | A590112 | [6] | WASHER;PLANE | |
| 29. | J780820 | [6] | BOLT;SOCKET | |
| 30. | J781460 | [20] | BOLT;SOCKET | |
| 31. | Y970884 | [2] | PIN | |
| 31. | Y970973 | [2] | PIN | |
| 32. | K422098 | [2] | PIN;LOCK | |
| 32. | 4080985 | [2] | PIN;LOCK | |
| 33. | A590912 | [6] | WASHER;SPRING | |
| 34. | A590922 | [8] | WASHER;SPRING | |
| 35. | A590924 | [2] | WASHER;SPRING | |
| 36. | K422098 | [2] | PIN;LOCK | |
| 36. | 4080985 | [2] | PIN;LOCK | |
| 37. | J222022 | [8] | WASHER | |
| 39. | J75481 | [19] | FITTING;GREASE | |
| 41. | J75581 | [3] | FITTING;GREASE | |
| 42. | J922219 | [8] | BOLT | |
| 43. | Y970884 | [2] | PIN | |
| 43. | Y970973 | [2] | PIN | |
| 44. | 4077248 | [4] | PIN;LOCK | |
| 44. | K422098 | [4] | PIN;LOCK | |
| 45. | Y410787 | [6] | SPACER | |
| 46. | Y802304 | [2] | SUPPORT | |
| 46. | Y801726 | [2] | SUPPORT | |
| 48. | A590120 | [4] | WASHER;PLANE | |
| 48. | A590127 | [4] | WASHER;PLANE | |
