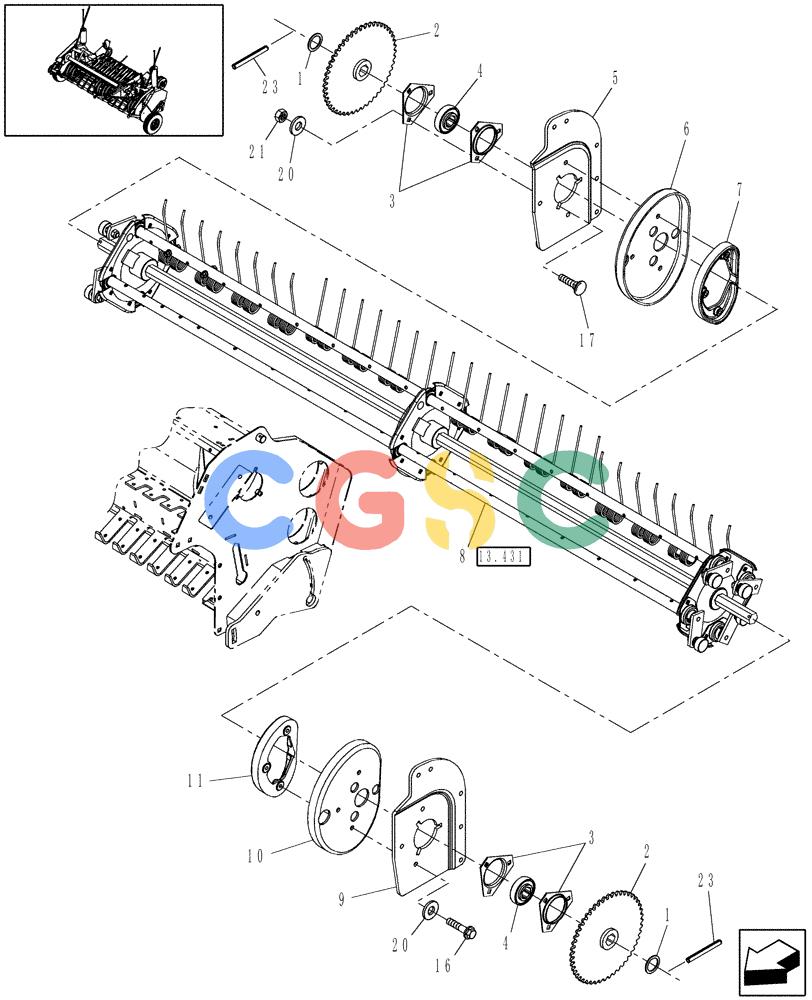

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (13.436) - 2M WIDE PICKUP, REEL DRIVE, ROTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87022926
|
[2] |
WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk
|
PA
.075" Thick
|
| 2. |
86624713
|
[2] |
SPROCKET
|
NH
48T, RC 50 Superseded by part number: 87641160
|
| 3. |
86620026
|
[4] |
FLANGED BEARING
|
NH
|
| 4. |
156816C91
|
[2] |
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
|
IH
Superseded by part number: 84330069
|
| 5. |
86606411
|
[1] |
SUPPORT
|
NH
RH Superseded by part number: 87641813
|
| 6. |
86637746
|
[1] |
CAM
|
NH
RH, Outer Superseded by part number: 87023408
|
| 7. |
86637695
|
[1] |
CAM
|
NH
RH, Inner Superseded by part number: 87023407
|
| 8. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Reel
|
| 9. |
86606410
|
[1] |
SUPPORT
|
NH
LH Superseded by part number: 87641822
|
| 10. |
86636966
|
[1] |
CAM
|
NH
LH, Outer
|
| 11. |
86636967
|
[1] |
CAM
|
NH
LH, Inner
|
| 16. |
844-10030
|
[6] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 17. |
811-10030
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 20. |
140045
|
[12] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 21. |
829-1410
|
[6] |
NUT,M10 x 1.5, Cl 10.9
|
CAS
Superseded by part number: 86500689
|
| 23. |
88529
|
[2] |
LOCK PIN,5.56mm OD x 44.45mm L, Slotted
|
NH
|
