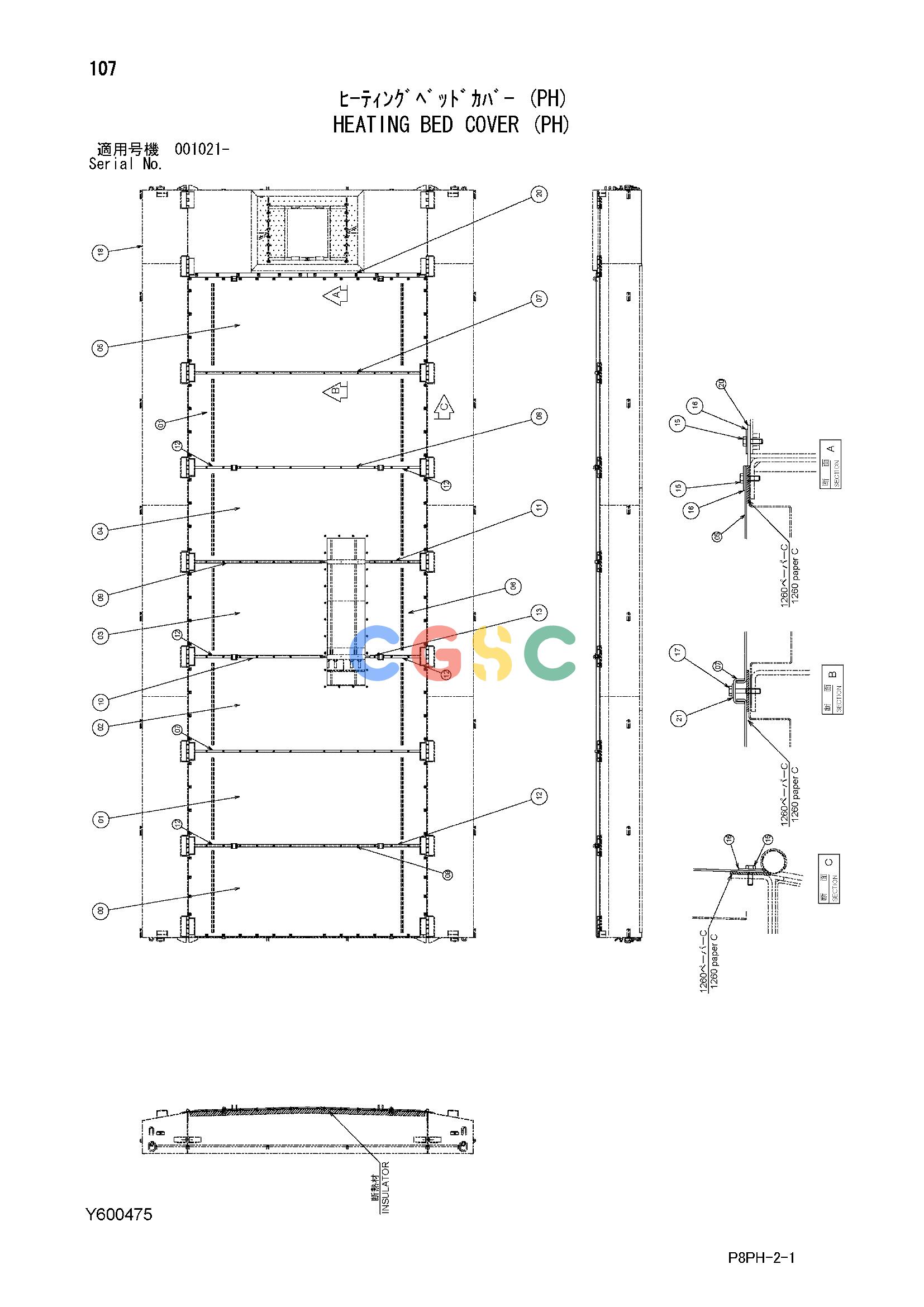

日立零件查询（AR2000）HEATING BED COVER (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
797 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802082 | [1] | SHEET-METAL | |
| 01. | Y802083 | [2] | SHEET-METAL | |
| 02. | Y802084 | [1] | SHEET-METAL | |
| 03. | Y802085 | [1] | SHEET-METAL | |
| 04. | Y802086 | [1] | SHEET-METAL | |
| 05. | Y802087 | [1] | SHEET-METAL | |
| 06. | Y802092 | [1] | SHEET-METAL | |
| 07. | Y411877 | [2] | C-CHANNEL | |
| 08. | Y411878 | [2] | C-CHANNEL | |
| 09. | Y411879 | [1] | C-CHANNEL | |
| 10. | Y411880 | [1] | C-CHANNEL | |
| 11. | Y411881 | [1] | C-CHANNEL | |
| 12. | Y411882 | [6] | C-CHANNEL | |
| 13. | Y411883 | [1] | C-CHANNEL | |
| 15. | J900620 | [94] | BOLT | |
| 16. | Y407646 | [94] | WASHER | |
| 17. | J900635 | [68] | BOLT | |
| 18. | Y500279 | [1] | MAIN BED | |
| 20. | Y412663 | [2] | FLAT BAR | |
| 21. | A590108 | [68] | WASHER;PLANE | |
