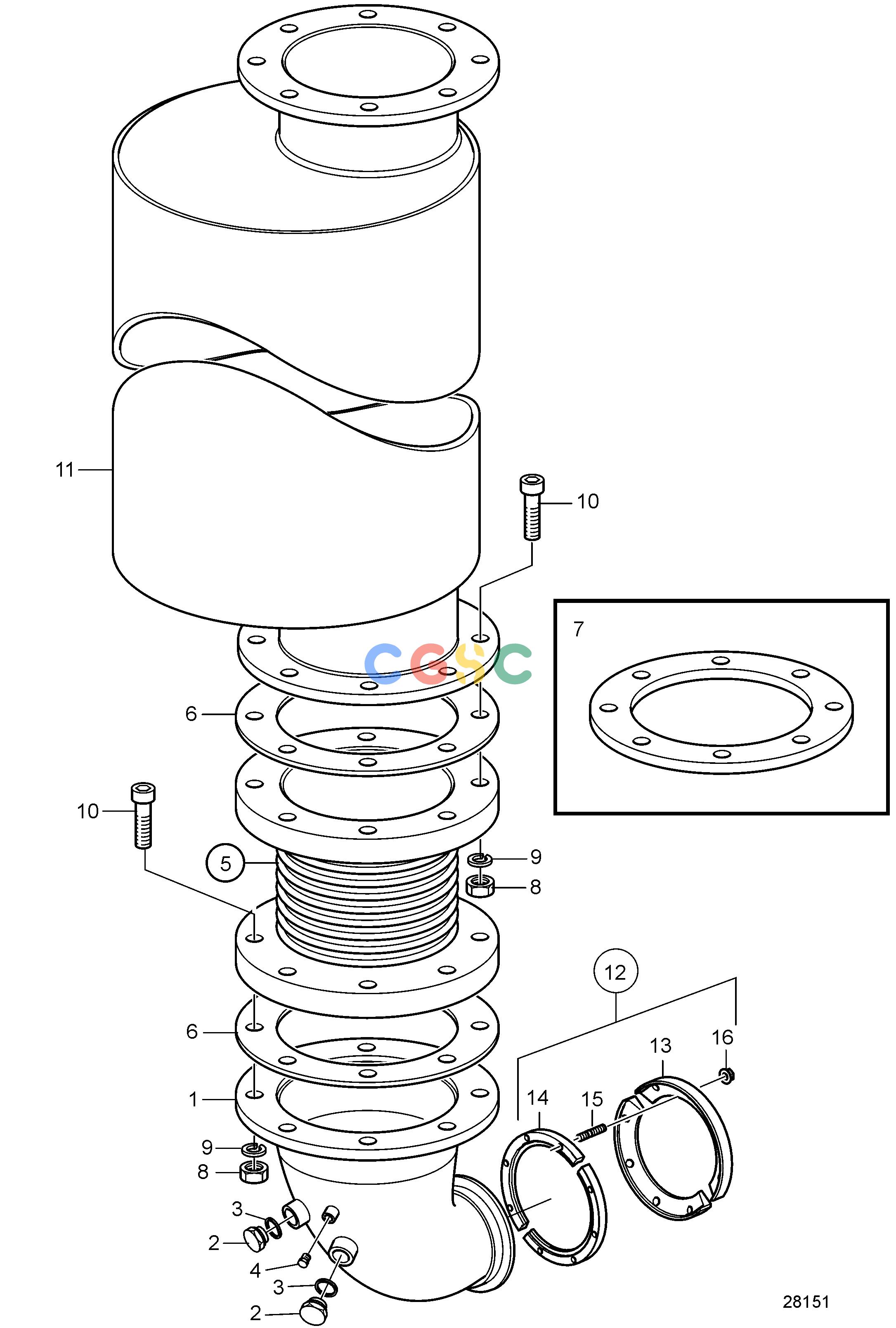

沃尔沃零件查询D16C-D MHIntake and Exhaust SystemDry Exhaust LineEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808218
|
[1] |
Exhaust outlet
|
|
| 2. |
914392
|
[2] |
Plug
|
|
| 3. |
947626
|
[2] |
Gasket
|
|
| 4. |
479979
|
[1] |
Plug
|
|
| 5. |
865300
|
[1] |
Compensator
|
|
| 6. |
862950
|
[2] |
Gasket
|
|
| 7. |
849981
|
[1] |
Flange
|
|
| 8. |
990972
|
[16] |
Hexagon nut
|
|
| 9. |
941912
|
[16] |
Spring washer
|
|
| 10. |
994411
|
[16] |
Hexagon screw
|
|
| 11. |
3886131
|
[1] |
Silencer
|
7'', for dry exhaust
|
| 11. |
3886134
|
[1] |
Silencer
|
7'', for dry exhaust, With spark arrestor
|
| 11. |
|
|
|
8'', for dry exhaust, With spark arrestor
|
| 12. |
22583885
|
[1] |
Exhaust pipe clamp
|
|
| 13. |
22478838
|
[2] |
Guide
|
|
| 14. |
22556925
|
[2] |
Exhaust pipe clamp
|
|
| 15. |
924064
|
[4] |
Stud
|
|
| 16. |
990940
|
[8] |
Flange nut
|
|
