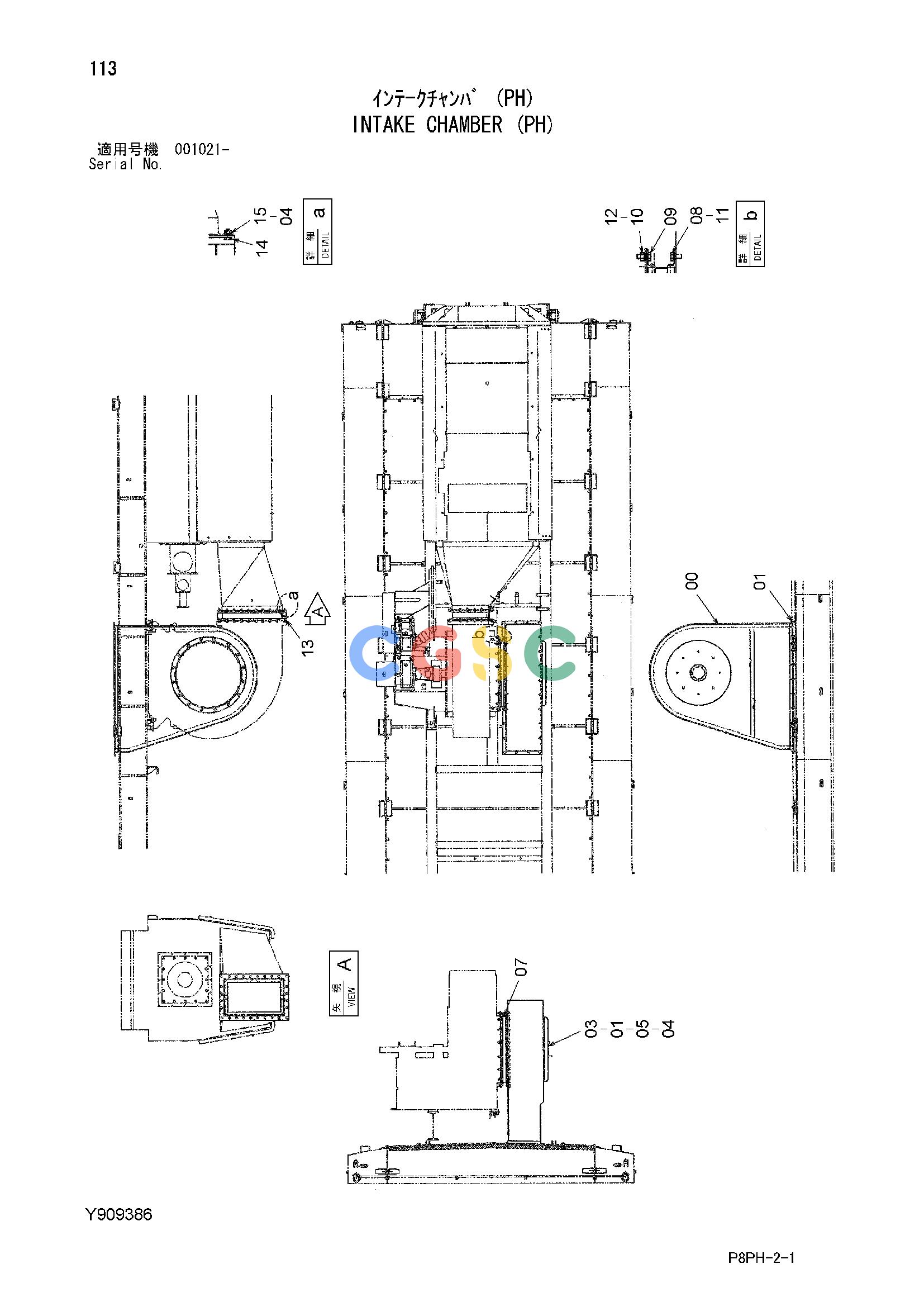

日立零件查询（AR2000）INTAKE CHAMBER (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y600437 | [1] | INTAKE CHAMBER | |
| 01. | J921225 | [25] | BOLT | |
| 03. | Y971308 | [1] | COVER | |
| 04. | A590112 | [57] | WASHER;PLANE | |
| 05. | A590912 | [1] | WASHER;SPRING | |
| 07. | Y802029 | [1] | DUCT | |
| 08. | J921630 | [16] | BOLT | |
| 09. | J921640 | [16] | BOLT | |
| 09. | J901440 | [16] | BOLT | |
| 10. | J950016 | [16] | NUT | |
| 10. | J950014 | [16] | NUT | |
| 11. | A590116 | [16] | WASHER;PLANE | |
| 12. | A590116 | [16] | WASHER;PLANE | |
| 12. | A590114 | [16] | WASHER;PLANE | |
| 13. | Y802031 | [1] | DUCT | |
| 14. | J921230 | [56] | BOLT | |
| 15. | J950012 | [56] | NUT | |
