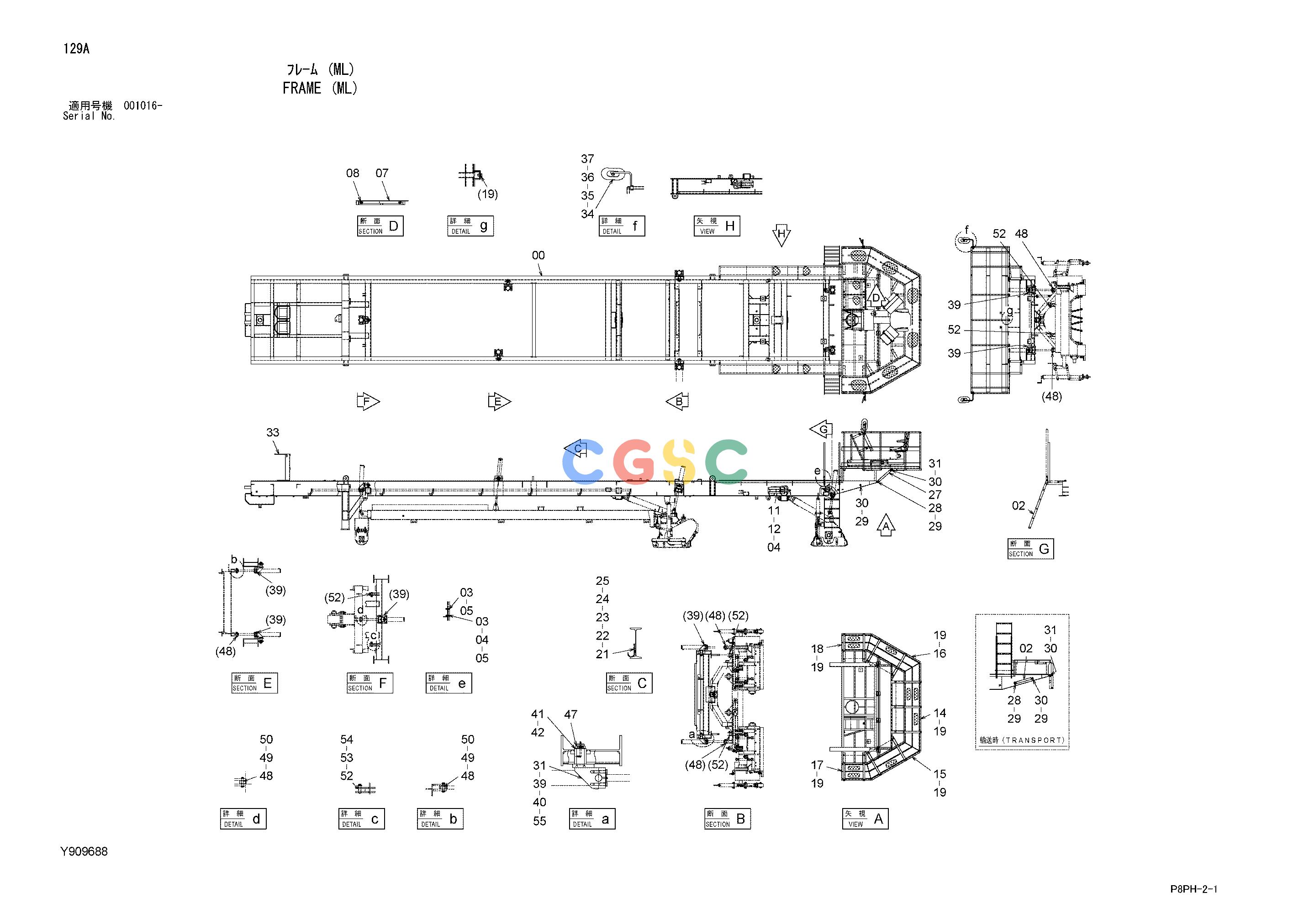

日立零件查询（AR2000）FRAME (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
381 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500287 | [1] | FRAME;MAIN | |
| 02. | Y801588 | [2] | LADDER | |
| 03. | J901035 | [8] | BOLT | |
| 04. | A590110 | [20] | WASHER;PLANE | |
| 05. | J950010 | [16] | NUT | |
| 07. | Y801991 | [1] | COVER | |
| 07. | Y802330 | [2] | COVER | |
| 08. | J271025 | [3] | BOLT;SEMS | |
| 08A. | J901025 | [1] | BOLT | |
| 08B. | J222010 | [1] | WASHER | |
| 08. | J271025 | [8] | BOLT;SEMS | |
| 08A. | J901025 | [1] | BOLT | |
| 08B. | J222010 | [1] | WASHER | |
| 11. | 4623183 | [2] | EXTINGUISHER | |
| 12. | J901020 | [12] | BOLT | |
| 14. | Y700881 | [1] | HANDRAIL | |
| 15. | Y700883 | [1] | HANDRAIL | |
| 16. | Y700884 | [1] | HANDRAIL | |
| 17. | Y700885 | [1] | HANDRAIL | |
| 18. | Y700886 | [1] | HANDRAIL | |
| 19. | J271020 | [22] | BOLT;SEMS | |
| 19A. | J901020 | [1] | BOLT | |
| 19B. | J222010 | [1] | WASHER | |
| 21. | Y970967 | [7] | BRACKET | |
| 22. | Y409142 | [7] | CLAMP | |
| 23. | 4116300 | [7] | PIN;SPRING | |
| 24. | J900816 | [14] | BOLT | |
| 25. | A590908 | [14] | WASHER;SPRING | |
| 27. | Y971078 | [2] | BAR | |
| 28. | J781670 | [2] | BOLT;SOCKET | |
| 29. | J950016 | [6] | NUT | |
| 30. | J901650 | [4] | BOLT | |
| 31. | A590916 | [30] | WASHER;SPRING | |
| 33. | Y408943 | [2] | RING;CLAMP | |
| 34. | 4416704 | [2] | MIRROR | |
| 35. | 8077521 | [2] | STAY | |
| 36. | 4425481 | [2] | CLAMP | |
| 37. | J260855 | [4] | BOLT;SEMS | |
| 37A. | J900855 | [1] | BOLT | |
| 37B. | A590108 | [1] | WASHER;PLANE | |
| 39. | Y802131 | [7] | BRACKET | |
| 40. | J75481 | [21] | FITTING;GREASE | |
| 41. | Y410823 | [7] | SHIM | |
| 42. | Y412451 | [14] | SHIM | |
| 47. | Y971423 | [7] | CLAMP | |
| 48. | Y412450 | [7] | PIN | |
| 49. | A590124 | [26] | WASHER;PLANE | |
| 50. | A764040 | [14] | PIN;SPLIT | |
| 52. | Y970973 | [6] | PIN;COMPLETE | |
| 53. | A590130 | [6] | WASHER;PLANE | |
| 54. | 4080985 | [6] | PIN;LOCK | |
| 55. | J921680 | [28] | BOLT | |
