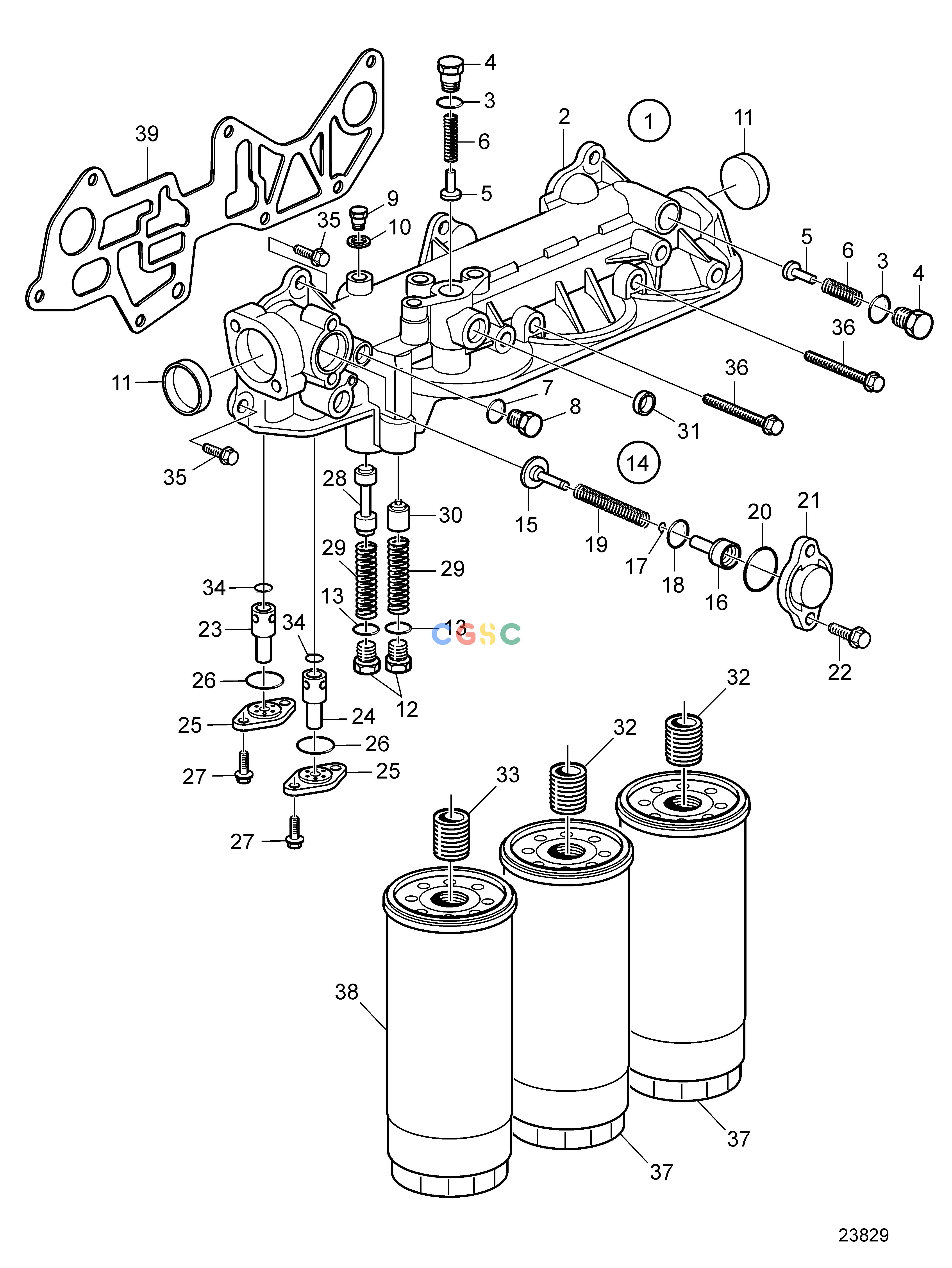

沃尔沃零件查询D16C-D MHLubricating SystemOil Filter Housing and Oil FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
302 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20586031
|
[1] |
Oil filter housing
|
|
| 2. |
|
|
|
|
| 3. |
947627
|
[2] |
Gasket
|
|
| 4. |
471598
|
[2] |
Plug
|
|
| 5. |
471085
|
[2] |
Valve cone
|
|
| 6. |
466653
|
[2] |
Compression spring
|
|
| 7. |
11998
|
[2] |
Gasket
|
|
| 8. |
960632
|
[2] |
Plug
|
|
| 9. |
960628
|
[1] |
Plug
|
|
| 10. |
947281
|
[1] |
Gasket
|
|
| 11. |
967962
|
[2] |
Cap plug
|
|
| 12. |
21235758
|
[2] |
Plug
|
|
| 13. |
947629
|
[2] |
Gasket
|
|
| 14. |
3169687
|
[1] |
Relief valve
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
955964
|
[1] |
Snap ring
|
|
| 18. |
976039
|
[1] |
O-ring
|
|
| 19. |
|
|
|
|
| 20. |
949659
|
[1] |
O-ring
|
|
| 21. |
3184806
|
[1] |
Cover
|
|
| 22. |
984727
|
[2] |
Flange screw
|
|
| 23. |
22416685
|
[1] |
Reduction valve
|
|
| 24. |
21068158
|
[1] |
Reduction valve
|
|
| 25. |
471648
|
[2] |
Cover
|
|
| 26. |
949659
|
[2] |
O-ring
|
|
| 27. |
984725
|
[4] |
Flange screw
|
|
| 28. |
20440781
|
[1] |
Piston
|
|
| 29. |
20464676
|
[2] |
Spring
|
|
| 30. |
20440779
|
[1] |
Valve cone
|
|
| 31. |
946778
|
[1] |
Cap plug
|
|
| 32. |
466623
|
[2] |
Nipple
|
|
| 33. |
469904
|
[1] |
Nipple
|
|
| 34. |
469846
|
[2] |
Sealing ring
|
|
| 35. |
984735
|
[5] |
Flange screw
|
|
| 36. |
984747
|
[2] |
Flange screw
|
|
| 37. |
21707133
|
[2] |
Oil filter
|
|
| 38. |
21707132
|
[1] |
Oil filter
|
|
| 39. |
21497512
|
[1] |
Gasket
|
|
