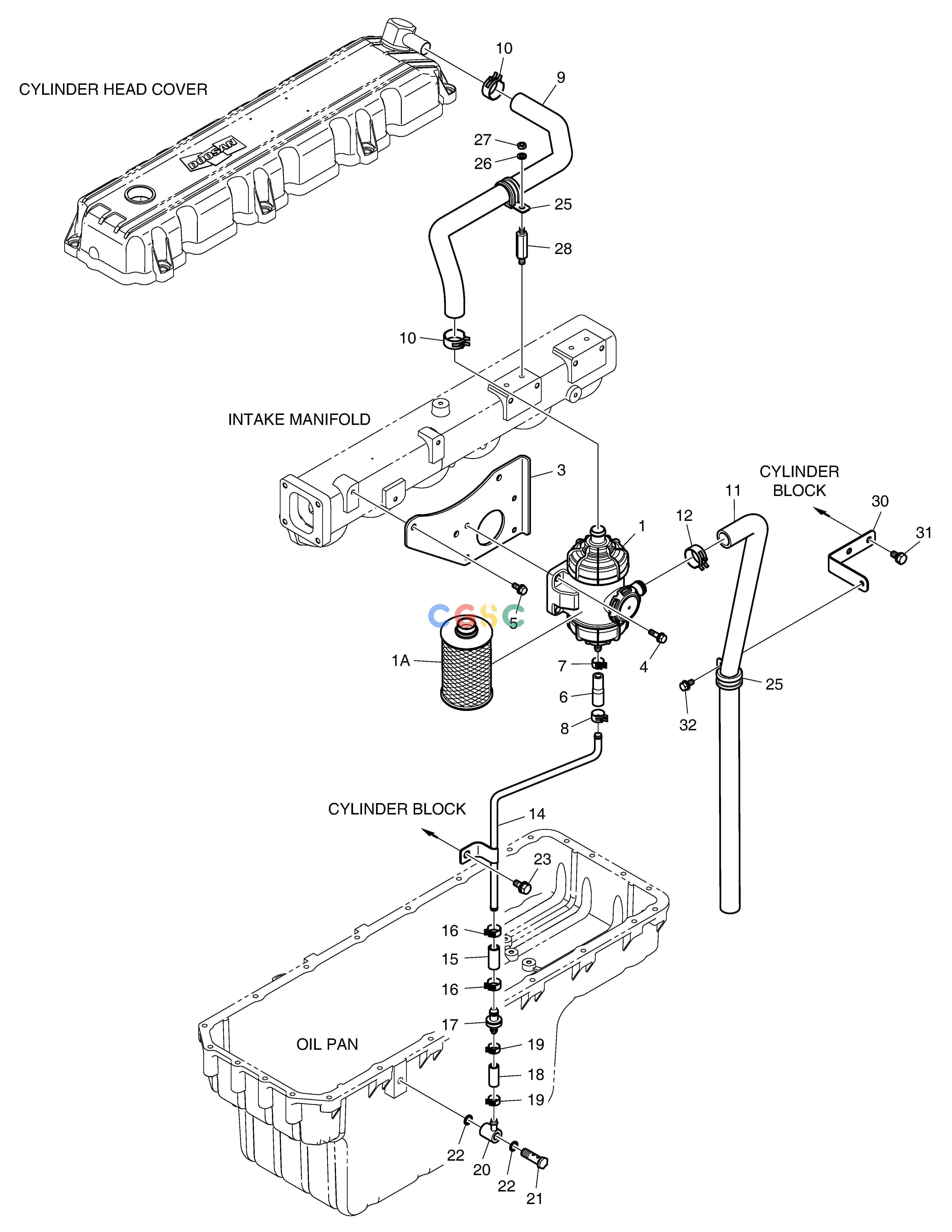

斗山零件查询BREATHER SYSTEM DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
799 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
110972-00040
|
[1] |
|
|
| 10. |
65.97402-0042
|
[2] |
|
|
| 11. |
420101-00516
|
[1] |
|
|
| 12. |
65.97402-0042
|
[1] |
|
|
| 14. |
420215-00026
|
[1] |
|
|
| 15. |
65.96301-0422A
|
[1] |
HOSE;RUBBER
|
|
| 16. |
65.97402-0025
|
[1] |
CLAMP
|
|
| 17. |
410104-00025
|
[1] |
CHECK VALVE ASS'Y
|
|
| 18. |
65.96301-0535
|
[2] |
HOSE;RUBBER
|
|
| 19. |
65.97402-0015
|
[1] |
CLIP;HOSE
|
|
| 1A. |
400406-00160
|
[1] |
|
|
| 20. |
420215-00010
|
[1] |
|
|
| 21. |
65.98150-0071
|
[1] |
SCREW;HOLLOW
|
|
| 22. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 23. |
06.01943-3215
|
[1] |
BOLT ASS'Y M10X1.25X25
|
|
| 25. |
65.97401-5019
|
[2] |
CLIP;PIPE
|
|
| 26. |
06.16731-2107
|
[1] |
WASHER
|
|
| 27. |
06.11063-8214
|
[1] |
. NUT
|
|
| 28. |
65.90201-0122
|
[1] |
BOLT;STUD
|
|
| 3. |
110436-00130
|
[1] |
|
|
| 30. |
110440-00013
|
[1] |
|
|
| 31. |
06.01913-3213
|
[2] |
BOLT ASS'Y M10X20
|
|
| 32. |
06.01923-3113
|
[1] |
BOLT ASS`Y M8X20
|
|
| 4. |
06.01923-3117
|
[4] |
. BOLT ASS`Y M8X30
|
|
| 5. |
06.01923-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 6. |
420101-00515
|
[1] |
|
420101-00515A
|
| 6. |
420101-00515A
|
[1] |
|
|
| 7. |
65.97402-0020
|
[1] |
|
65.97402-0015
|
| 7. |
65.97402-0015
|
[1] |
CLIP;HOSE
|
|
| 8. |
65.97402-0025
|
[1] |
CLAMP
|
65.97402-0023
|
| 8. |
65.97402-0023
|
[1] |
CLIP,HOSE
|
|
| 9. |
420101-00514
|
[1] |
|
|
