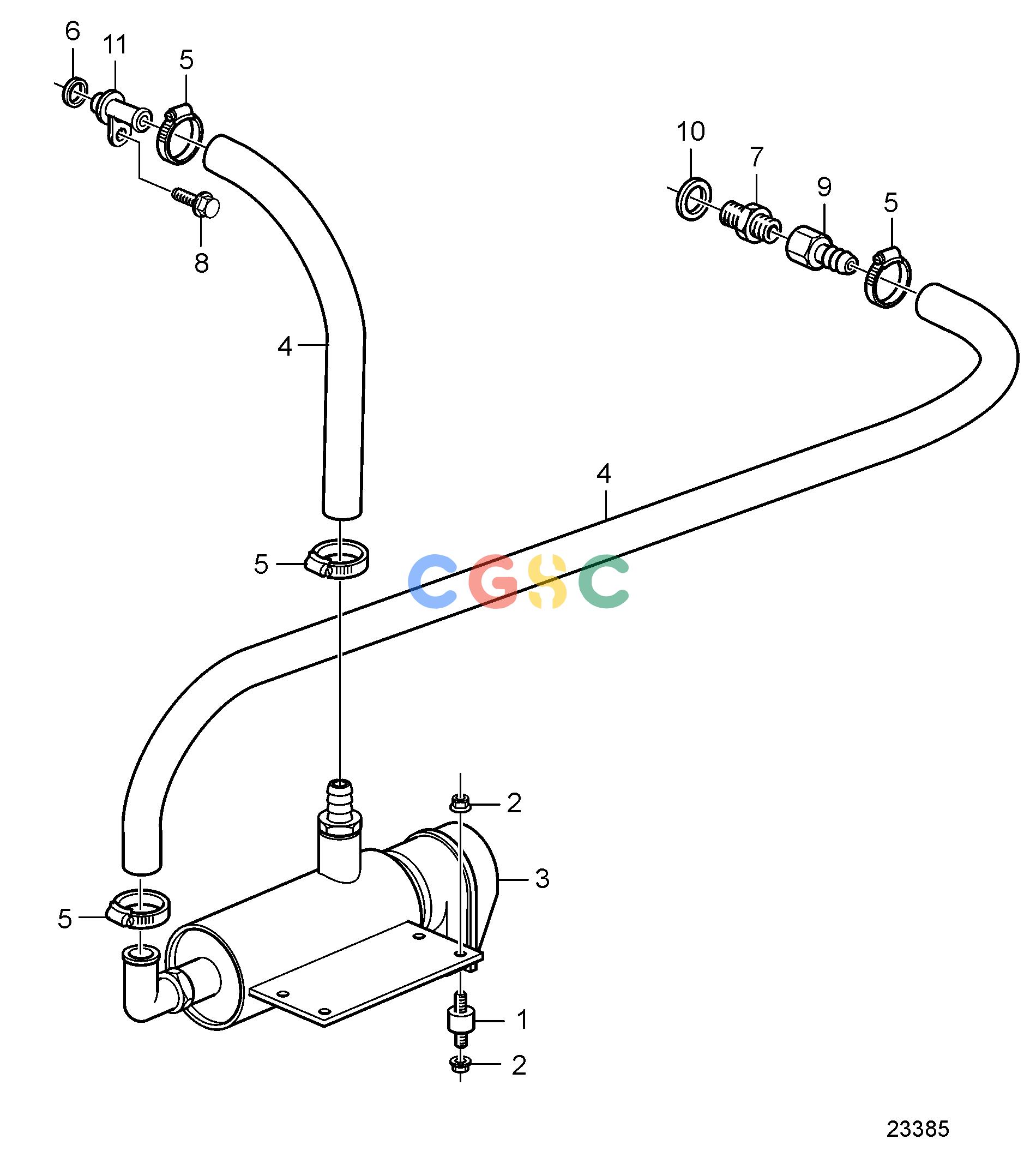

沃尔沃零件查询D16C-D MHMiscellaneous EquipmentEngine Heater, Separately MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
871 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866461
|
[4] |
Vibration damper
|
|
| 2. |
990939
|
[8] |
Flange nut
|
|
| 3. |
3828447
|
[1] |
Engine heater
|
220-240V, 750W
|
| 3. |
3828643
|
[1] |
Engine heater
|
220-240V, 2000W
|
| 4. |
943369
|
[1] |
Rubber hose
|
19.5x4mm, 2000mm
|
| 5. |
994559
|
[4] |
Hose clamp
|
|
| 6. |
1547252
|
[1] |
Sealing ring
|
|
| 7. |
982254
|
[1] |
Nipple
|
|
| 8. |
984733
|
[1] |
Flange screw
|
|
| 9. |
3886698
|
[1] |
Nipple
|
|
| 10. |
957185
|
[1] |
Gasket
|
|
| 11. |
3886065
|
[1] |
Hose connection
|
|
