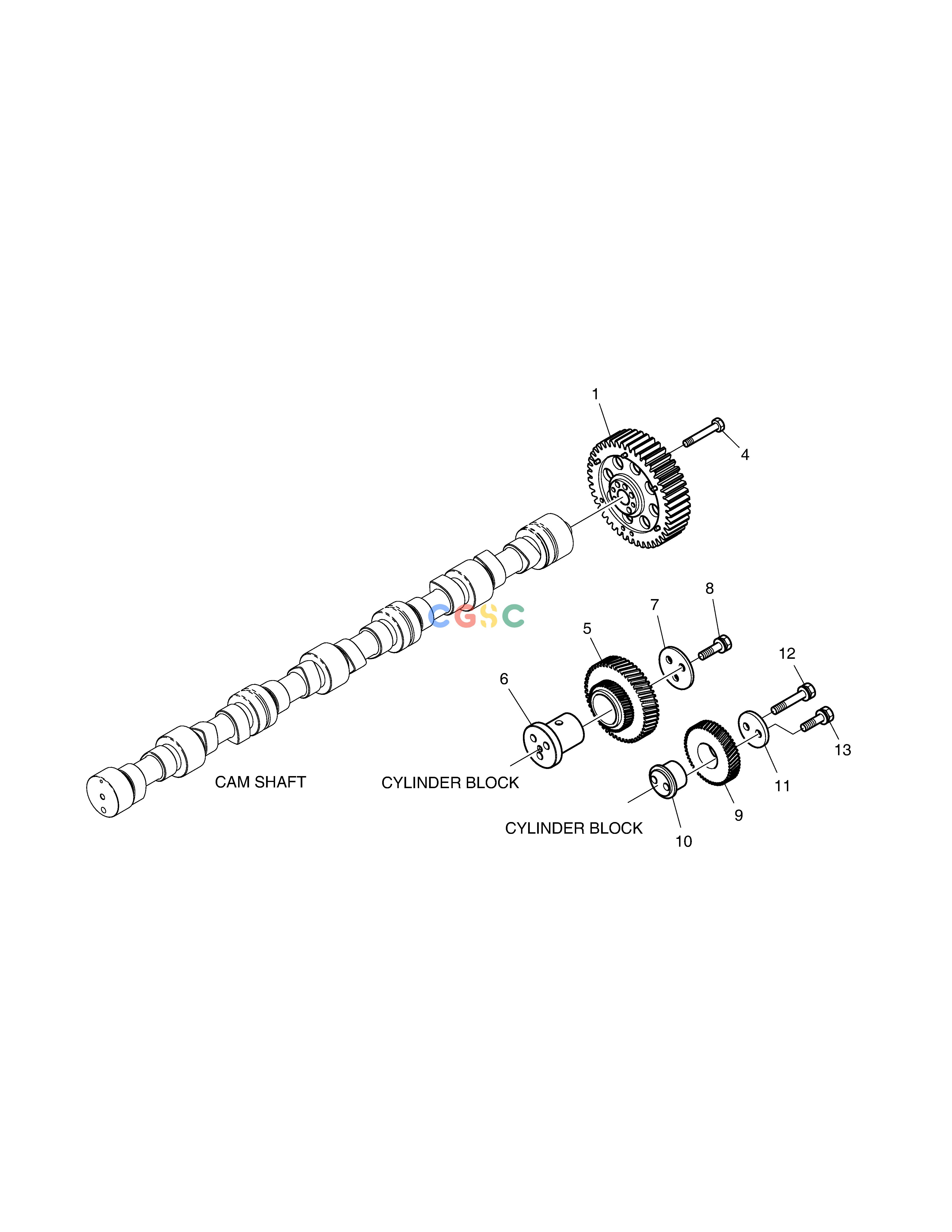

斗山零件查询CAM SHAFT DRIVE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04501-6002A
|
[1] |
GEAR;CAM SHAFT
|
|
| 10. |
65.54131-0001A
|
[1] |
PIN;AIR COM.
|
|
| 11. |
65.90720-0029B
|
[1] |
WASHER,THRUST
|
|
| 12. |
65.90020-0090
|
[1] |
BOLT;COLLARED HEX.
|
|
| 13. |
65.90020-0091
|
[1] |
BOLT,COLLARD HEX
|
|
| 4. |
65.90020-0086
|
[4] |
BOLT;COLLARED HEX.
|
|
| 5. |
130428-00075
|
[1] |
|
|
| 6. |
65.04506-0012A
|
[1] |
PIN;IDEL GEAR
|
|
| 7. |
65.90720-0028C
|
[1] |
WASHER;THRUST
|
|
| 8. |
65.90020-0085
|
[3] |
BOLT;COLLARED HEX
|
|
| 9. |
65.54130-5001B
|
[1] |
GEAR,IDLE
|
|
