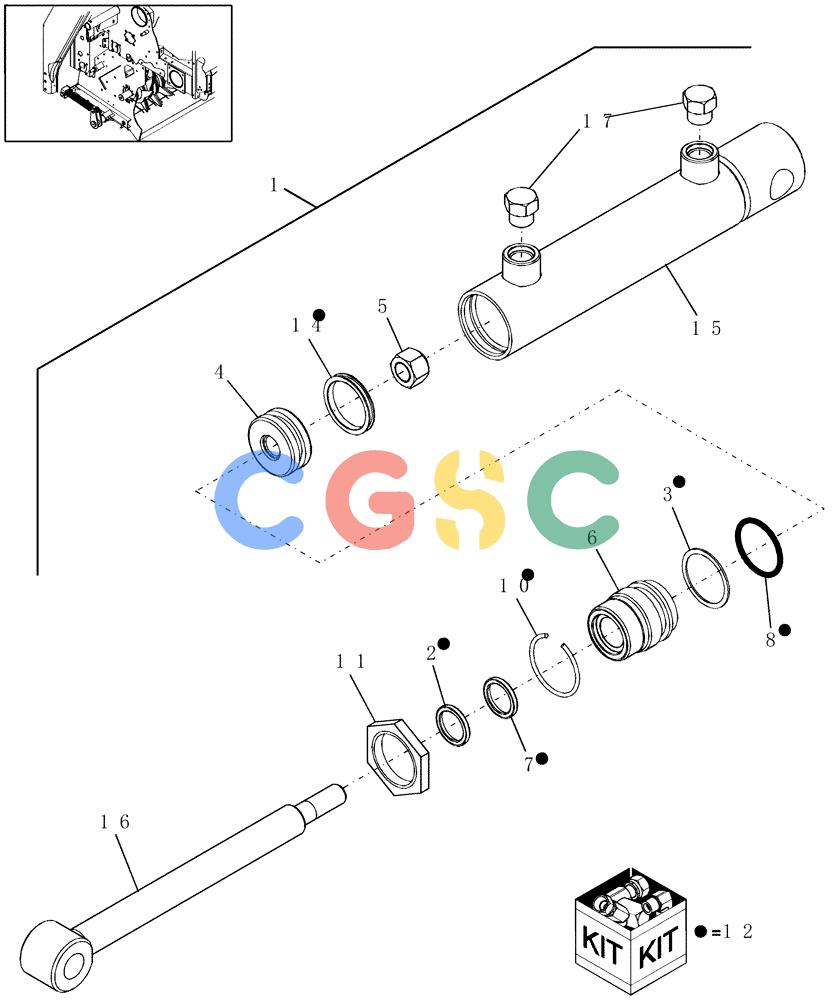

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (13.766[1]) - ROTOR KNIFE, HYDRAULIC CYLINDER, 87023411 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
482 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87023411
|
[1] |
HYDRAULIC CYLINDER
|
NH
Rotor Knife Superseded by part number: 87029395
|
| 2. |
272471
|
[1] |
WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk
|
NH
Wiper
|
| 3. |
514099
|
[1] |
WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk
|
NH
Back-Up, 1.266" ID x .043" Thk
|
| 4. |
596215
|
[1] |
PISTON
|
NH
|
| 5. |
231-4648
|
[1] |
LOCK NUT,1/2"-20, GB
|
CON
Superseded by part number: 85802684
|
| 6. |
9826106
|
[1] |
CYLINDER HEAD
|
NH
|
| 7. |
9826108
|
[1] |
SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk
|
NH
|
| 8. |
238-5218
|
[1] |
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
|
IH
Superseded by part number: 14463680
|
| 10. |
86516844
|
[1] |
SNAP RING,1-19/32" OD
|
NH
Int, 1.5"
|
| 11. |
86516845
|
[1] |
BEARING LOCK NUT,Hex, 1-3/8" - 18
|
NH
Bearing, 1-3/8"-18
|
| 12. |
86518284
|
[1] |
SEAL KIT
|
NH
|
| 14. |
86605608
|
[1] |
SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk
|
GI
Piston
|
| 15. |
86620204
|
[1] |
CYLINDER,38.1mm Bore Dia
|
NH
|
| 16. |
86620206
|
[1] |
PISTON ROD
|
NH
|
| 17. |
76349
|
[2] |
PLUG,9/16" - 18 ORB
|
NH
|
