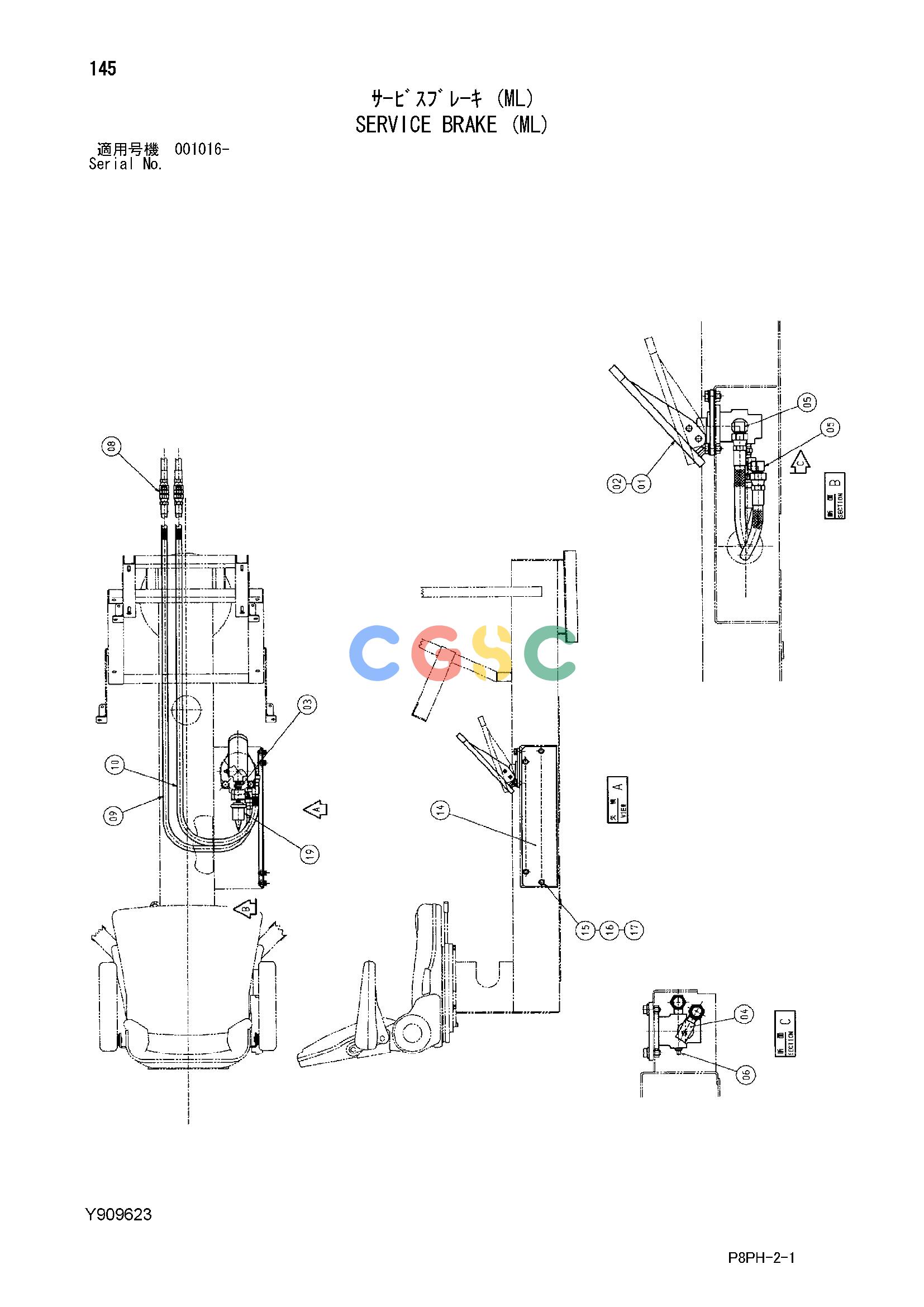

日立零件查询（AR2000）SERVICE BRAKE (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
256 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4216550 | [1] | VALVE;BRAKE | |
| 02. | J271025 | [3] | BOLT;SEMS | |
| 02A. | J901025 | [1] | BOLT | |
| 02B. | J222010 | [1] | WASHER | |
| 03. | 94-1702 | [1] | ADAPTER;S | |
| 04. | Y412420 | [1] | DIVIDER | |
| 05. | 4200315 | [2] | ELBOW;S | |
| 06. | 94-2022 | [1] | PLUG | |
| 08. | 4277889 | [2] | ADAPTER;S | |
| 09. | Y411639 | [1] | HOSE | |
| 10. | Y411640 | [1] | HOSE | |
| 14. | Y408911 | [1] | COVER | |
| 15. | J900820 | [4] | BOLT | |
| 16. | A590908 | [4] | WASHER;SPRING | |
| 17. | A590108 | [4] | WASHER;PLANE | |
| 19. | 4168339 | [2] | UNIT | |
