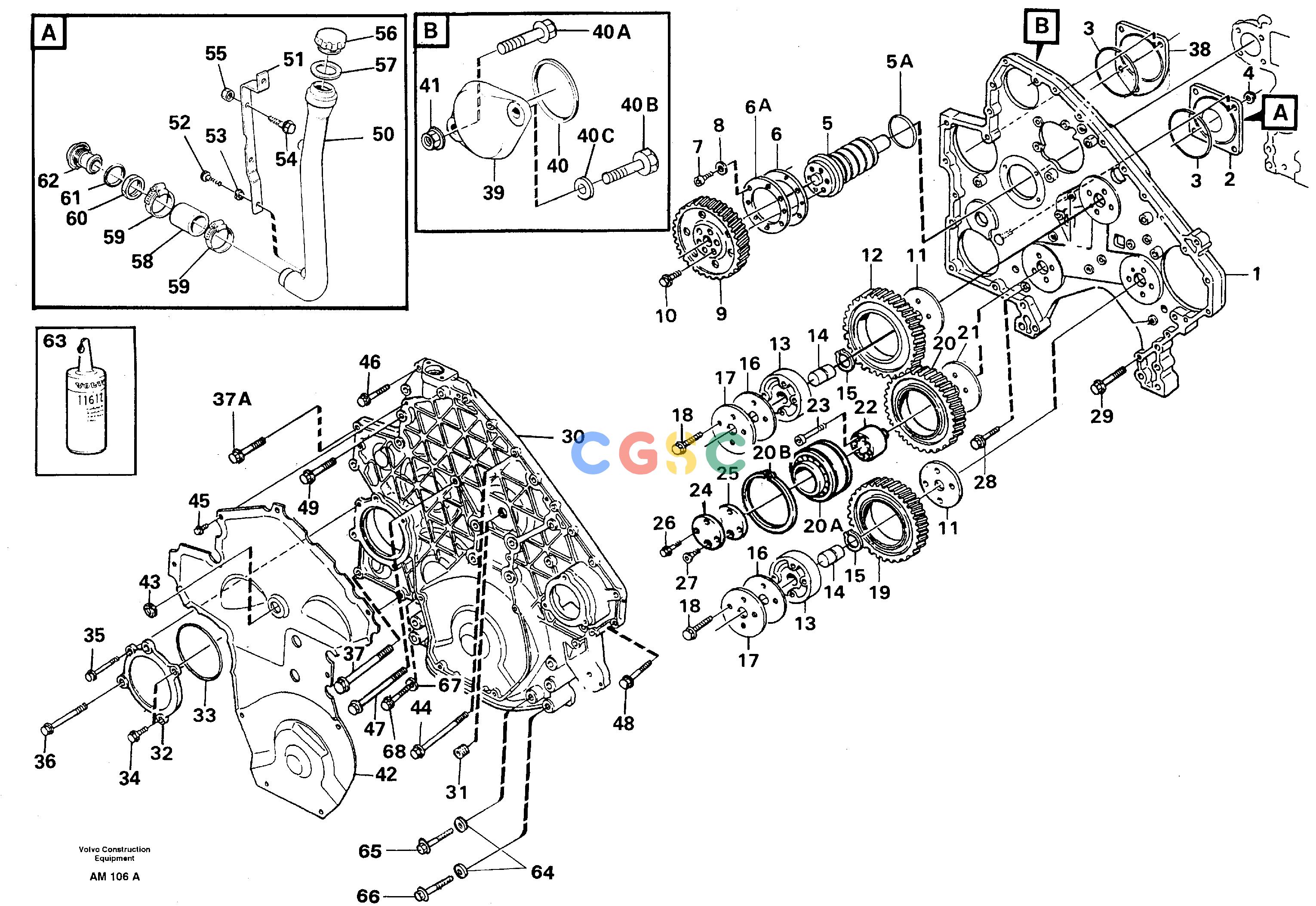

沃尔沃零件查询L330C VOLVO BM Timing gear casing and gearsVOLVO BM L330C SER NO - 601871556640-1556660NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1556640
|
[1] |
Timing gear casing
|
ENG - 16319
|
| |
VOE1556660
|
|
Timing gear casing
|
ENG 16320 -
|
| 2. |
VOE1556209
|
[1] |
Cover
|
ENG - 17437
|
| |
VOE11032078
|
|
Cover
|
ENG 17438 -
|
| 3. |
VOE13948888
|
[2] |
O-ring
|
|
| 4. |
VOE971096
|
[3] |
Flange nut
|
|
| 5. |
VOE1638201
|
[1] |
Injection timing device
|
|
| 5A. |
VOE13980236
|
[1] |
O-ring
|
|
| 6. |
VOE11999704
|
[1] |
Thrust washer
|
|
| |
VOE1556700
|
|
Thrust washer
|
|
| 6A. |
VOE11999824
|
|
Washer
|
|
| 7. |
VOE959223
|
[4] |
Hex. socket screw
|
|
| |
VOE1556747
|
|
Screw
|
ENG - 20558
|
| |
VOE1556747
|
|
Screw
|
ENG 20559 -
|
| 8. |
VOE13941907
|
[4] |
Washer
|
|
| 9. |
VOE1556635
|
[1] |
Gear
|
|
| 10. |
VOE13975204
|
[6] |
Flange screw
|
|
| 11. |
VOE1543598
|
[2] |
Thrust washer
|
|
| 12. |
VOE1543897
|
[1] |
Idler
|
|
| 13. |
VOE11999702
|
[2] |
Hub
|
|
| 14. |
VOE1543597
|
[2] |
Pin
|
|
| 15. |
VOE914459
|
[2] |
Snap ring
|
|
| 16. |
VOE11999703
|
[2] |
Thrust washer
|
|
| 17. |
VOE1543901
|
[2] |
Bearing shield
|
|
| 18. |
VOE471513
|
[8] |
Screw
|
|
| 19. |
VOE1543445
|
[1] |
Idler
|
|
| 20. |
VOE1556170
|
[1] |
Idler gear
|
|
| |
VOE1556652
|
|
Idler gear
|
|
| 20A. |
VOE1556440
|
[1] |
Roller bearing
|
|
| 20B. |
VOE13943467
|
[1] |
Snap ring
|
|
| 21. |
VOE1543598
|
|
Thrust washer
|
|
| 22. |
VOE1556545
|
[1] |
Hub
|
|
| |
VOE1556649
|
|
Hub
|
|
| 23. |
VOE13974113
|
[4] |
Allen Hd Screw
|
|
| |
VOE13974111
|
|
Allen Hd Screw
|
|
| 24. |
VOE1556386
|
[1] |
Bearing shield
|
|
| |
VOE1556650
|
|
Bearing shield
|
|
| 25. |
VOE1556651
|
|
Thrust washer
|
|
| 26. |
VOE13969986
|
[3] |
Flange screw
|
|
| |
VOE13975204
|
|
Flange screw
|
|
| 27. |
VOE1556539
|
[1] |
Allen Head Screw
|
|
| |
VOE13944830
|
|
Allen Head Screw
|
|
| 28. |
VOE13978266
|
[14] |
Flange screw
|
|
| 29. |
VOE13978267
|
[1] |
Flange screw
|
|
| 30. |
VOE1556413
|
[1] |
Timing gear cover
|
|
| 31. |
VOE1543941
|
[1] |
Plug
|
|
| 32. |
VOE1556347
|
[1] |
Hatch
|
|
| 33. |
VOE1556612
|
[1] |
O-ring
|
|
| 34. |
VOE13946173
|
[2] |
Screw
|
|
| 35. |
VOE13965182
|
[1] |
Screw
|
|
| 36. |
VOE13946474
|
[2] |
Flange screw
|
M12x120
|
| |
VOE997955
|
|
Hexagon screw
|
M12x140
|
| 37. |
VOE946473
|
[2] |
Flange screw
|
M12x90
|
| 37A. |
VOE965197
|
[3] |
Flange screw
|
M12x100
|
| 38. |
VOE1556208
|
[1] |
Cover
|
|
| 39. |
VOE468093
|
[1] |
Cover
|
|
| 40. |
VOE468094
|
[1] |
Sealing ring
|
|
| 40A. |
VOE13965189
|
[1] |
Screw
|
|
| 40B. |
VOE970961
|
[1] |
Hexagon screw
|
|
| 40C. |
VOE190509
|
[1] |
Washer
|
|
| 41. |
VOE13971095
|
[2] |
Flange nut
|
|
| 42. |
VOE1556176
|
[1] |
Noise shield
|
|
| 43. |
VOE943920
|
[1] |
Plug
|
|
| 44. |
VOE13965182
|
[2] |
Screw
|
|
| 45. |
VOE13946501
|
[9] |
Screw
|
|
| 46. |
VOE13947760
|
[6] |
Screw
|
|
| 47. |
VOE13947790
|
[3] |
Screw
|
|
| 48. |
VOE13948217
|
[1] |
Screw
|
|
| 49. |
VOE13965220
|
[1] |
Screw
|
|
| 50. |
VOE822885
|
[1] |
Filler pipe
|
|
| 51. |
VOE11031693
|
[1] |
Bracket
|
|
| 52. |
VOE13955523
|
[2] |
Screw
|
|
| 53. |
VOE13941907
|
[2] |
Washer
|
|
| 54. |
VOE13946173
|
[2] |
Screw
|
|
| 55. |
VOE13945408
|
[2] |
Nut
|
|
| 56. |
VOE3547599
|
[1] |
Oil filler cap
|
(721753)
|
| 57. |
VOE1275379
|
[1] |
Gasket
|
|
| 58. |
VOE942711
|
[REQ] |
Hose
|
L=45 MM
|
| 59. |
VOE943478
|
[2] |
Hose clamp
|
|
| 60. |
VOE468948
|
[1] |
Nut
|
|
| 61. |
VOE468947
|
[1] |
Sealing ring
|
|
| 62. |
VOE468940
|
[1] |
Hose connection
|
|
| 63. |
VOE11713514
|
[REQ] |
Sealant
|
|
| 64. |
VOE941911
|
|
Spring washer
|
|
| 65. |
VOE13971010
|
|
Hexagon screw
|
|
| 66. |
VOE13971012
|
|
Hexagon screw
|
|
| 67. |
VOE13969011
|
|
Gasket
|
|
| 68. |
VOE13970993
|
|
Hexagon screw
|
|
