沃尔沃零件查询D16C-D MHTransmissionsConnecting Components MG 5170EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
225 次

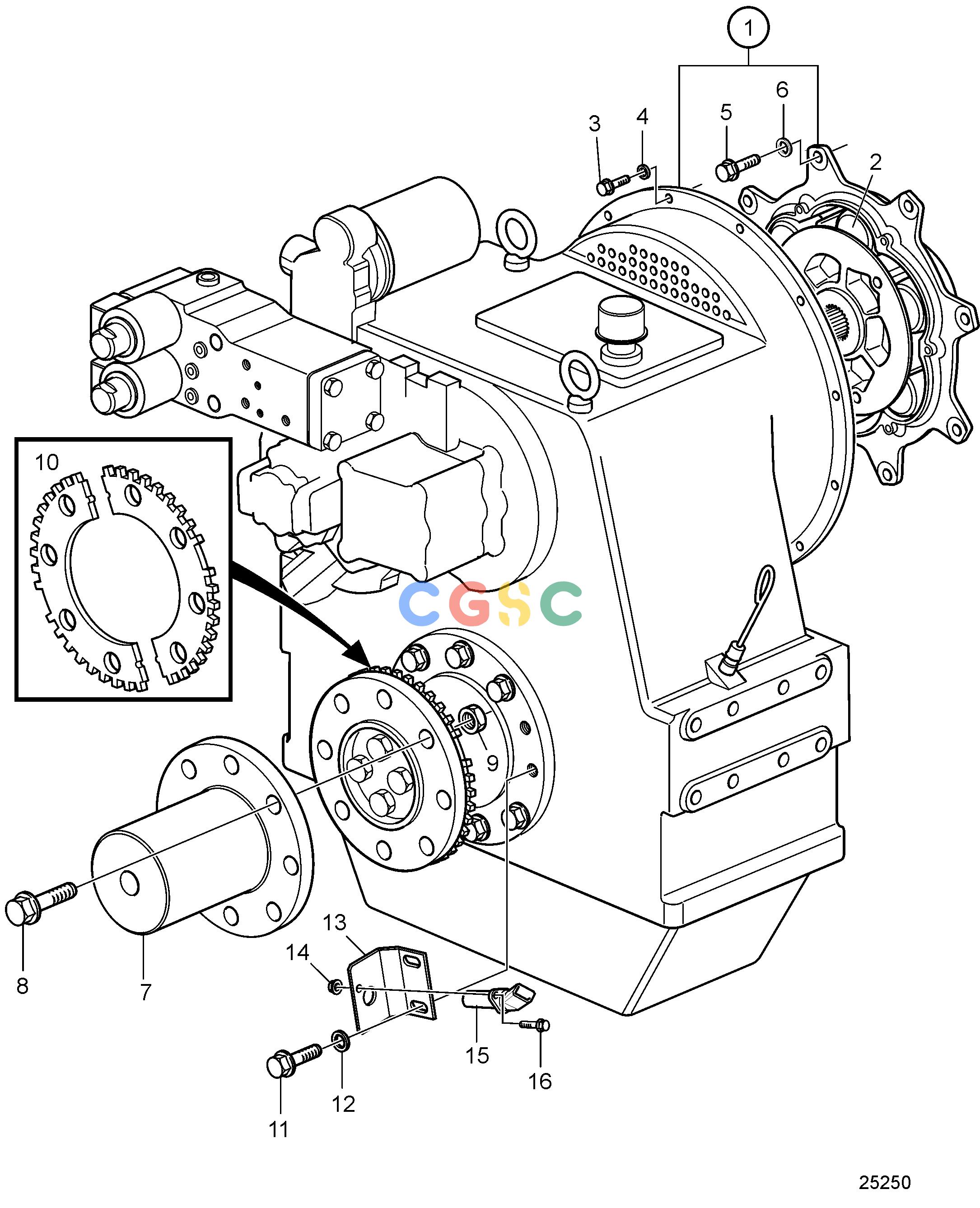

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Utv 6.95:1
|
| 2. |
21509621
|
[1] |
Roller kit
|
Kit include 8pcs rubber rollers
|
| 3. |
965185
|
[12] |
Flange screw
|
|
| 4. |
941908
|
[12] |
Spring washer
|
|
| 5. |
965194
|
[8] |
Flange screw
|
|
| 6. |
940280
|
[8] |
Spring washer
|
|
| 7. |
3883414
|
[1] |
Shaft coupling
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
3843686
|
[2] |
Sprocket wheel
|
|
| 11. |
984733
|
[2] |
Flange screw
|
|
| 12. |
941907
|
[2] |
Spring washer
|
|
| 13. |
3843689
|
[1] |
Bracket
|
|
| 14. |
990949
|
[1] |
Flange lock nut
|
|
| 15. |
21426987
|
[1] |
Speed monitor
|
|
| 16. |
984725
|
[1] |
Flange screw
|
|
