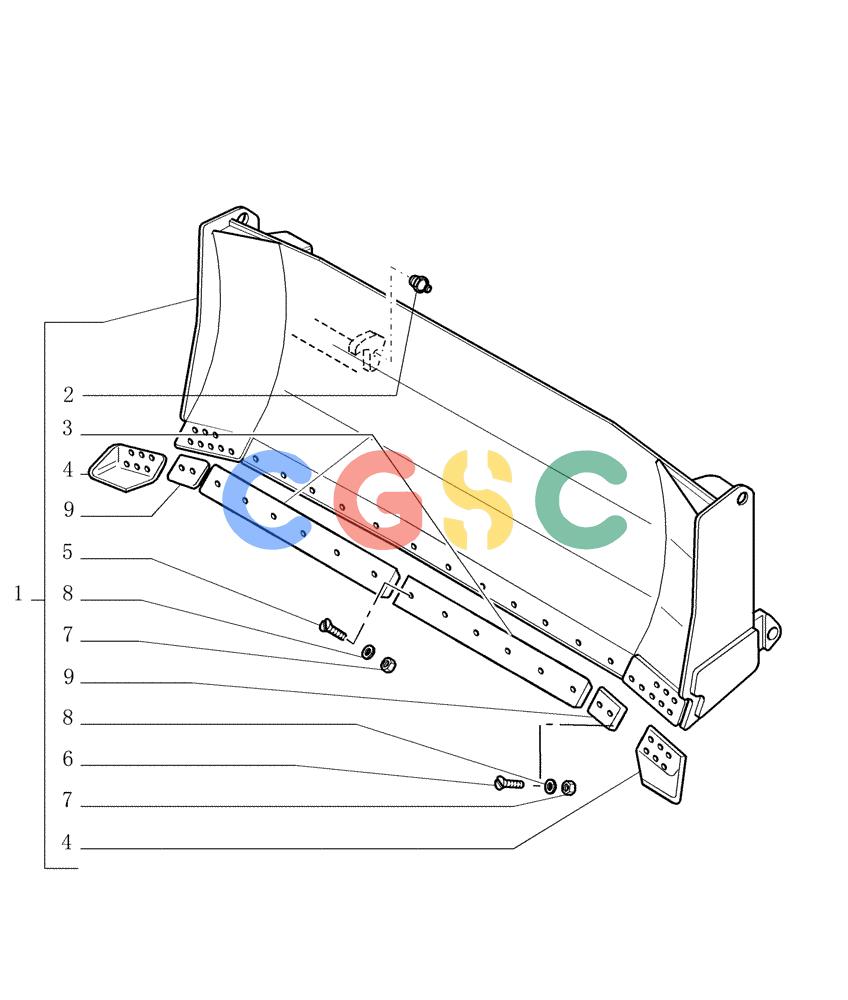

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.468[01]) - SEMI-U MOLDBOARD (HSU) - OPTIONAL CODE 774179021 - VERSION(04) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069846 | [1] | DOZER BLADE | LEC- U MOLDBOARD (HSU) L=3180 ASSY |
| 2. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 3. | 76069847 | [2] | CUTTING EDGE | LEC- CENTRAL |
| 4. | 76005120 | [1] | CUTTING EDGE | LEC- RIGHT |
| 4. | 76005121 | [1] | CUTTING EDGE | LEC- LEFT |
| 5. | 8273211 | [12] | PLOW BOLT,Plow, M20 x 1.5 x 62mm, Cl 10.9 | LEC |
| 6. | 8282270 | [16] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 7. | 86015195 | [28] | NUT,M20 x 1.5, Cl 10 | RAC |
| 8. | 14497131 | [28] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 9. | 76072327 | [1] | CUTTING EDGE | LEC- RIGHT |
| 10. | 76073183 | [1] | CUTTING EDGE | LEC- LEFT |
