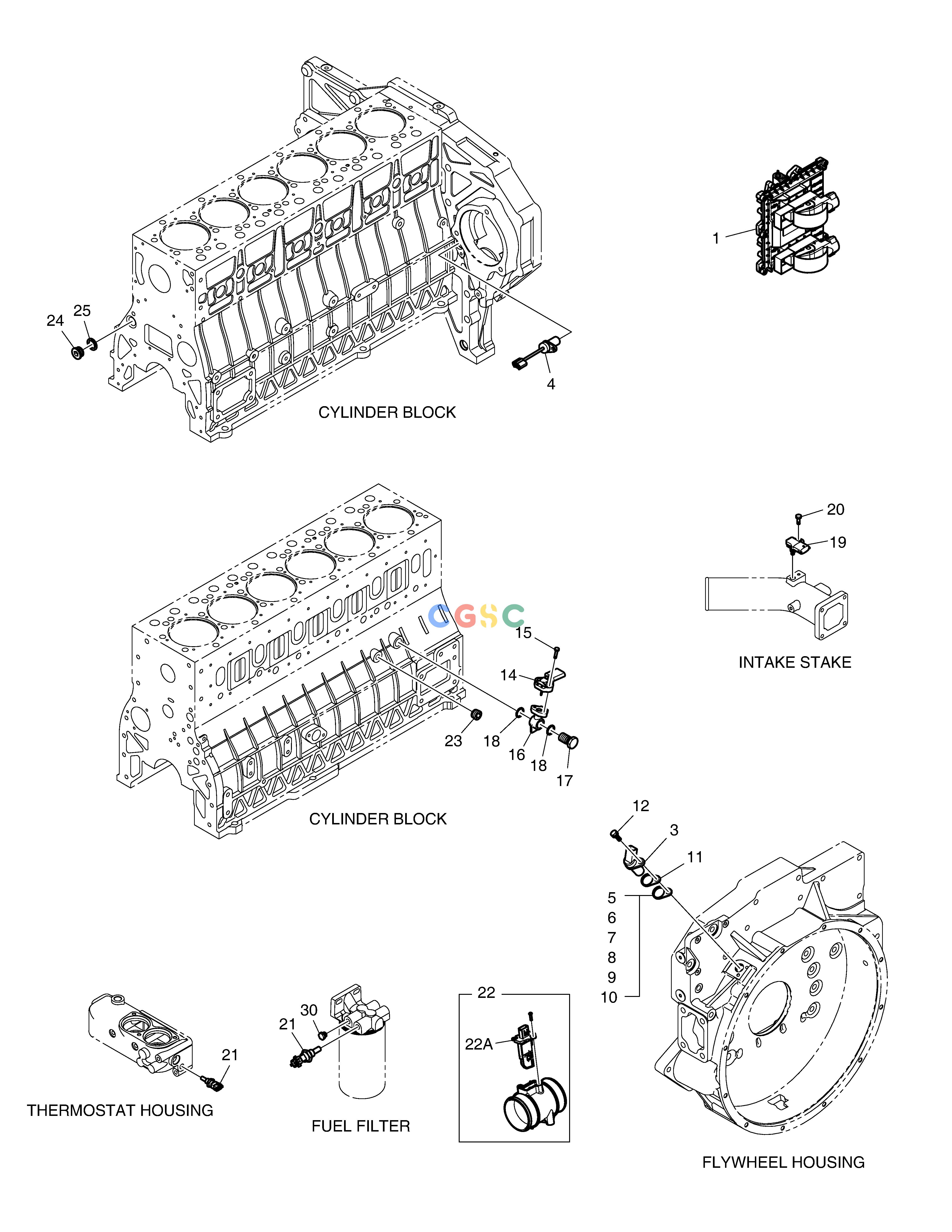

斗山零件查询ENGINE CONTROL UNIT DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
970301-00631
|
[1] |
|
|
| 10. |
65.11308-0018
|
[1] |
SHIM
|
|
| 11. |
65.91701-0229A
|
[1] |
SPACER
|
|
| 12. |
06.01923-2915
|
[1] |
BOLT ASS'Y M6X25
|
|
| 14. |
65.27427-7001
|
[1] |
SENSOR;OIL PRESSURE
|
|
| 15. |
06.01923-2913
|
[2] |
BOLT ASS`Y M6X20
|
|
| 16. |
65.98130-0247
|
[1] |
ADAPTER
|
|
| 17. |
65.98150-0088
|
[1] |
SCREW;HOLLOW
|
|
| 18. |
06.56190-0718
|
[2] |
RING;SEAL
|
|
| 19. |
301318-00007
|
[1] |
|
|
| 20. |
06.01923-2912
|
[1] |
BOLT ASS'Y M6X18
|
|
| 21. |
65.27423-7003
|
[2] |
SENSOR;TEMP
|
|
| 22. |
301308-00036
|
[1] |
|
|
| 22A. |
65.27405-6008
|
[1] |
|
|
| 23. |
65.90320-0022
|
[1] |
PLUG SCREW
|
|
| 24. |
65.90310-0132
|
[1] |
SCREW;PLUG
|
|
| 25. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 3. |
65.27103-7008
|
[1] |
SENSOR;CRANK CAM SPEED
|
|
| 30. |
65.90310-0036A
|
[1] |
. PLUG;SCREW
|
|
| 4. |
65.27103-7014
|
[1] |
SENSOR;CRANK CAM SPEED
|
|
| 5. |
65.11308-0005
|
[1] |
SHIM
|
|
| 6. |
65.11308-0006
|
[1] |
SHIM
|
|
| 7. |
65.11308-0007
|
[1] |
SHIM
|
|
| 8. |
65.11308-0008
|
[1] |
SHIM
|
|
| 9. |
65.11308-0009
|
[1] |
SHIM
|
|
