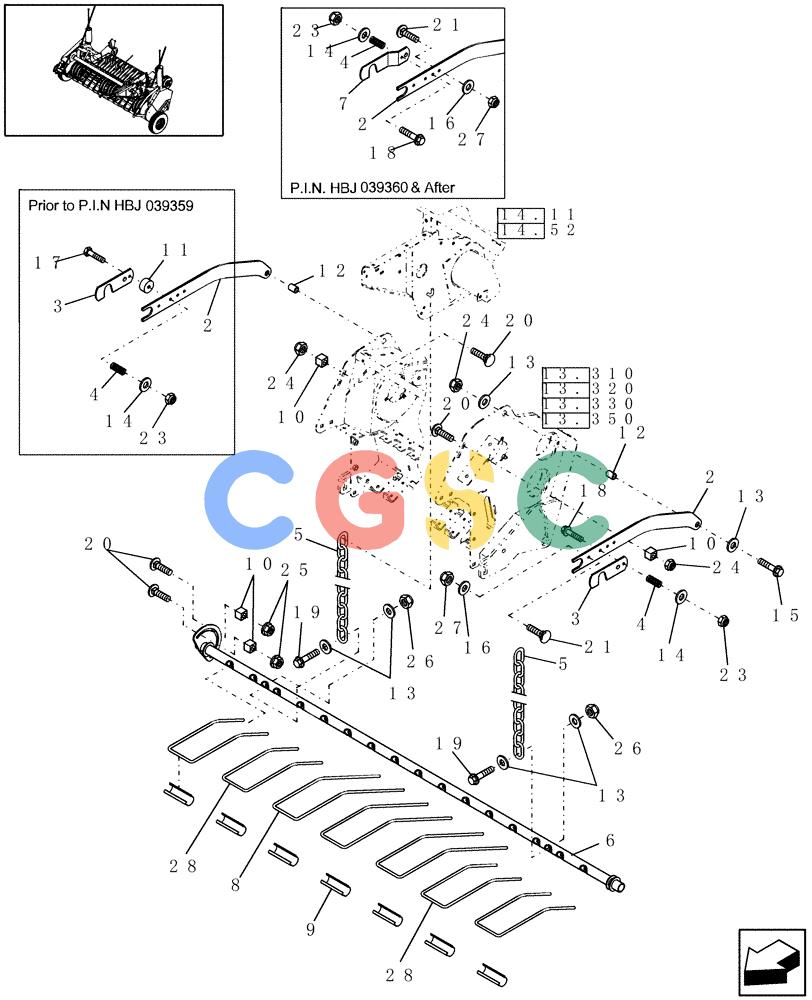

| 2. |
86624816
|
[2] |
ARM
|
NH
Superseded by part number: 87043779
|
| 2. |
87043779
|
[2] |
ARM
|
PA
|
| 3. |
86621461
|
[2] |
RETAINER
|
NH
Superseded by part number: 87043776
|
| 3. |
87043776
|
[2] |
RETAINER
|
PA
|
| 4. |
86635755
|
[2] |
SPRING,15.88mm OD x 28.58mm L
|
NH
Compression
|
| 5. |
86631509
|
[2] |
CHAIN
|
NH
26-3/4" Superseded by part number: 87055684
|
| 6. |
87043830
|
[1] |
WINDGUARD
|
PA
|
| 7. |
87038214
|
[1] |
RETAINER
|
PA
|
| 8. |
86599418
|
[3] |
FINGER
|
PA
Middle Superseded by part number: 87355310
|
| 9. |
86621502
|
[7] |
CLIP
|
NH
|
| 10. |
86603107
|
[4] |
NUT
|
PA
Square
|
| 11. |
86626991
|
[1] |
SPACER
|
NH
|
| 12. |
133095
|
[2] |
SPACER,10.32mm ID x 15.85mm OD x 7.9mm L
|
NH
|
| 13. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 14. |
495-11034
|
[2] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| 15. |
844-10030
|
[2] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 16. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 17. |
814-8070
|
[1] |
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
|
CAS
Superseded by part number: 7120024
|
| 18. |
86511481
|
[2] |
FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
|
NH
|
| 19. |
413-636
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 88546, 72187212
|
| 20. |
811-10040
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 21. |
811-6016
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 86512439
|
| 23. |
832-46408
|
[2] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 24. |
832-46410
|
[6] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 26. |
231-4146
|
[2] |
NUT,3/8"-16, GB
|
CAS
Superseded by part number: 88902
|
| 27. |
825-2406
|
[2] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 28. |
86599424
|
[4] |
FINGER
|
PA
Outer Superseded by part number: 87355309
|
