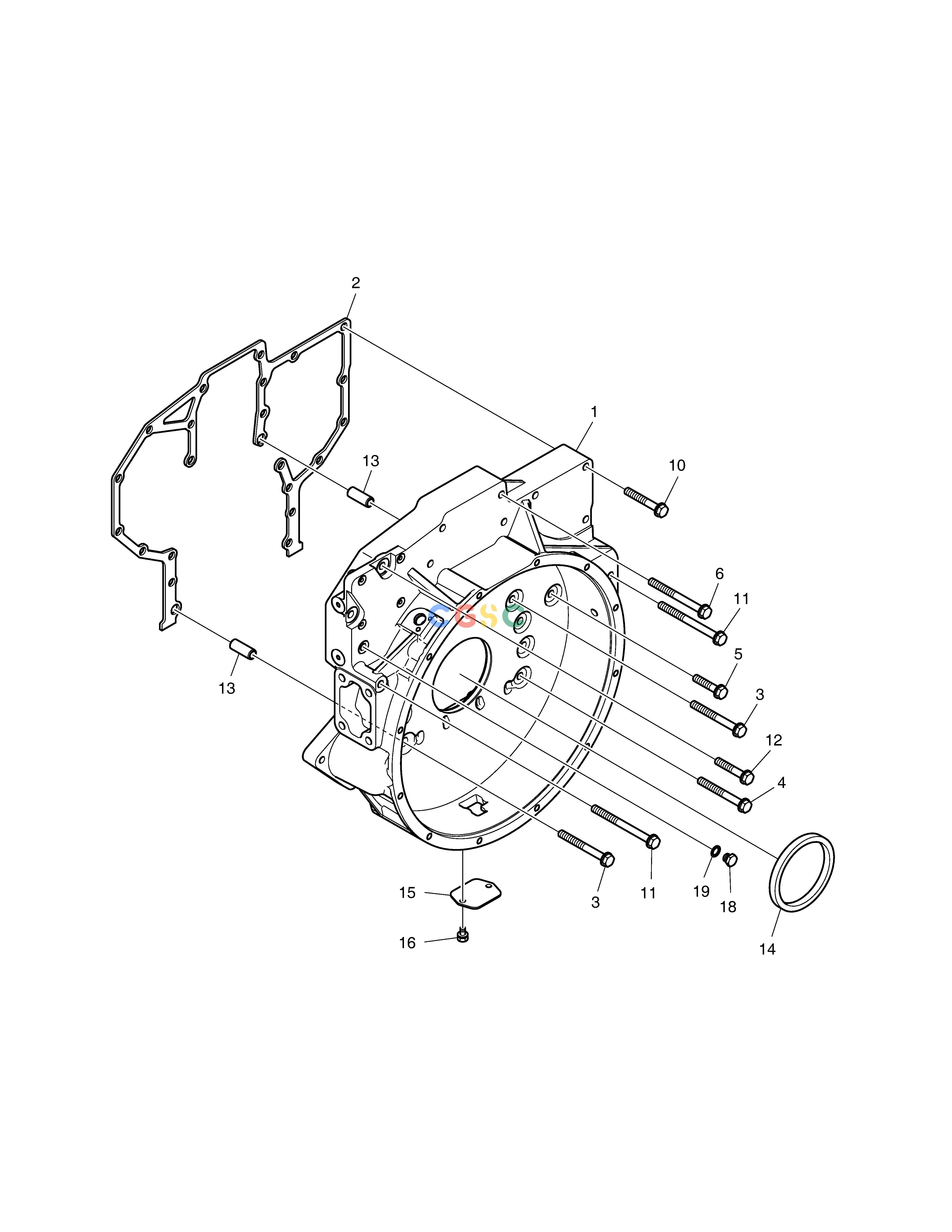

斗山零件查询FLYWHEEL HOUSING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
498 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150114-00077A
|
[1] |
HOUSING;FLYWHEEL
|
|
| 10. |
65.90020-0103
|
[3] |
BOLT, 79mm
|
|
| 11. |
65.90020-0104
|
[2] |
BOLT, 138mm
|
|
| 12. |
65.90020-0105
|
[2] |
BOLT
|
|
| 13. |
65.91710-0009
|
[2] |
RING;STOPPER
|
|
| 14. |
65.01510-0141
|
[1] |
OIL SEAL;RR
|
|
| 15. |
65.01414-0004A
|
[1] |
. COVER
|
|
| 16. |
06.01913-3110
|
[2] |
BOLT ASS`Y M8X12
|
|
| 18. |
65.90310-0135
|
[1] |
PLUG;SCREW
|
|
| 19. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 2. |
65.01904-0027A
|
[1] |
GASKET
|
|
| 3. |
65.90020-0099
|
[2] |
BOLT, 108mm
|
|
| 4. |
65.90020-0100
|
[8] |
BOLT
|
|
| 5. |
65.90020-0101
|
[2] |
BOLT
|
|
| 6. |
65.90020-0102
|
[4] |
BOLT, 125mm
|
|
