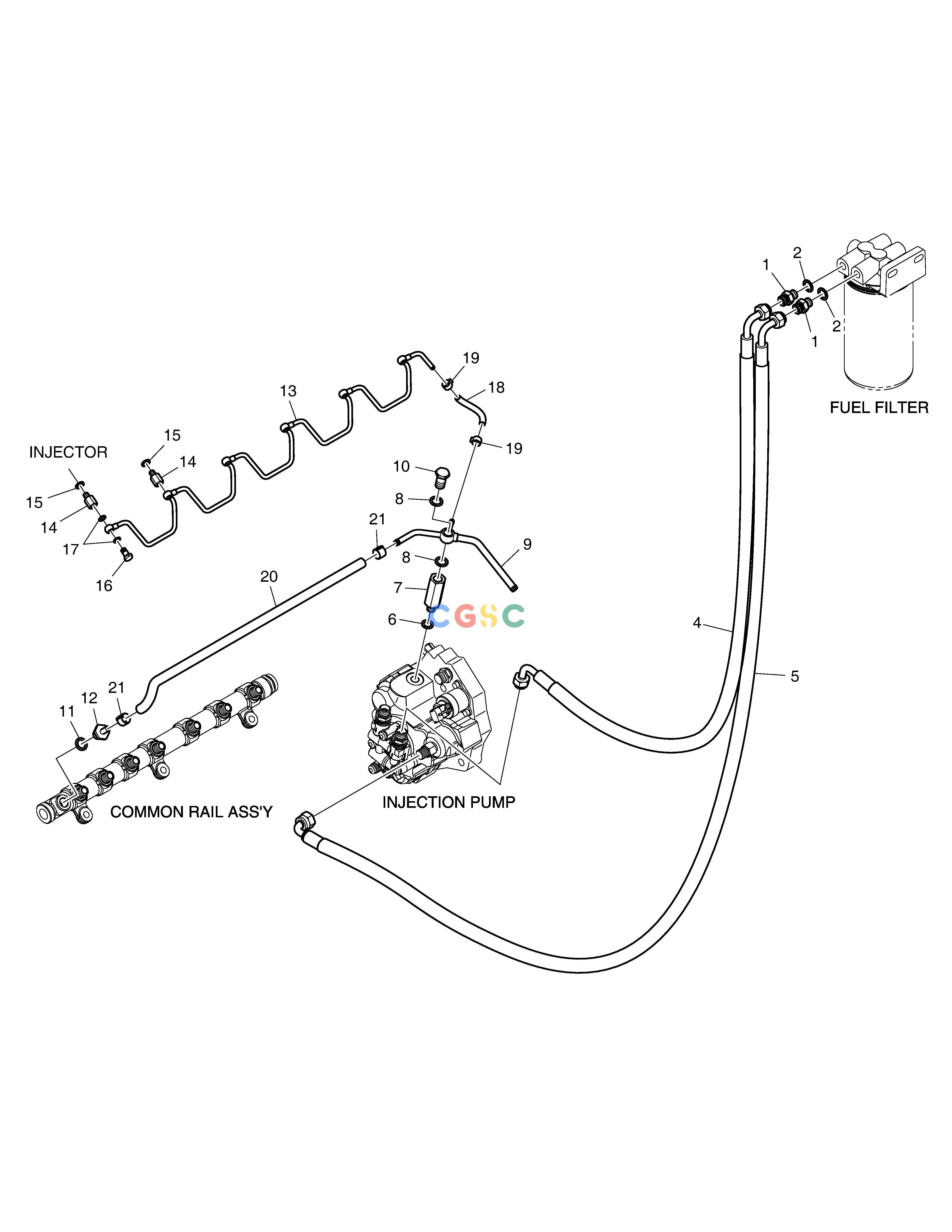

斗山零件查询FUEL PIPE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
960 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.98130-0229
|
[2] |
ADAPTER
|
|
| 10. |
65.98150-0066
|
[1] |
|
|
| 11. |
65.96507-0043
|
[1] |
. RING;SEAL
|
|
| 12. |
65.98131-0116
|
[1] |
|
|
| 13. |
65.12301-5261A
|
[1] |
PIPE;FUEL
|
|
| 14. |
430201-00844
|
[6] |
ADAPTER
|
|
| 15. |
06.56180-0712
|
[6] |
RING;SEAL
|
|
| 16. |
120703-00016
|
[6] |
SCREW,HOLLOW
|
|
| 17. |
65.96507-0001
|
[12] |
RING;SEAL
|
|
| 18. |
420103-00105
|
[1] |
|
|
| 19. |
65.97402-0006
|
[2] |
. CLAMP
|
|
| 2. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 20. |
420103-00126
|
[1] |
|
|
| 21. |
65.97402-0045
|
[2] |
|
|
| 4. |
420108-00309
|
[1] |
|
|
| 5. |
420108-00779
|
[1] |
|
|
| 6. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 7. |
430201-00337
|
[1] |
|
|
| 8. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 9. |
420204-00242
|
[1] |
|
|
