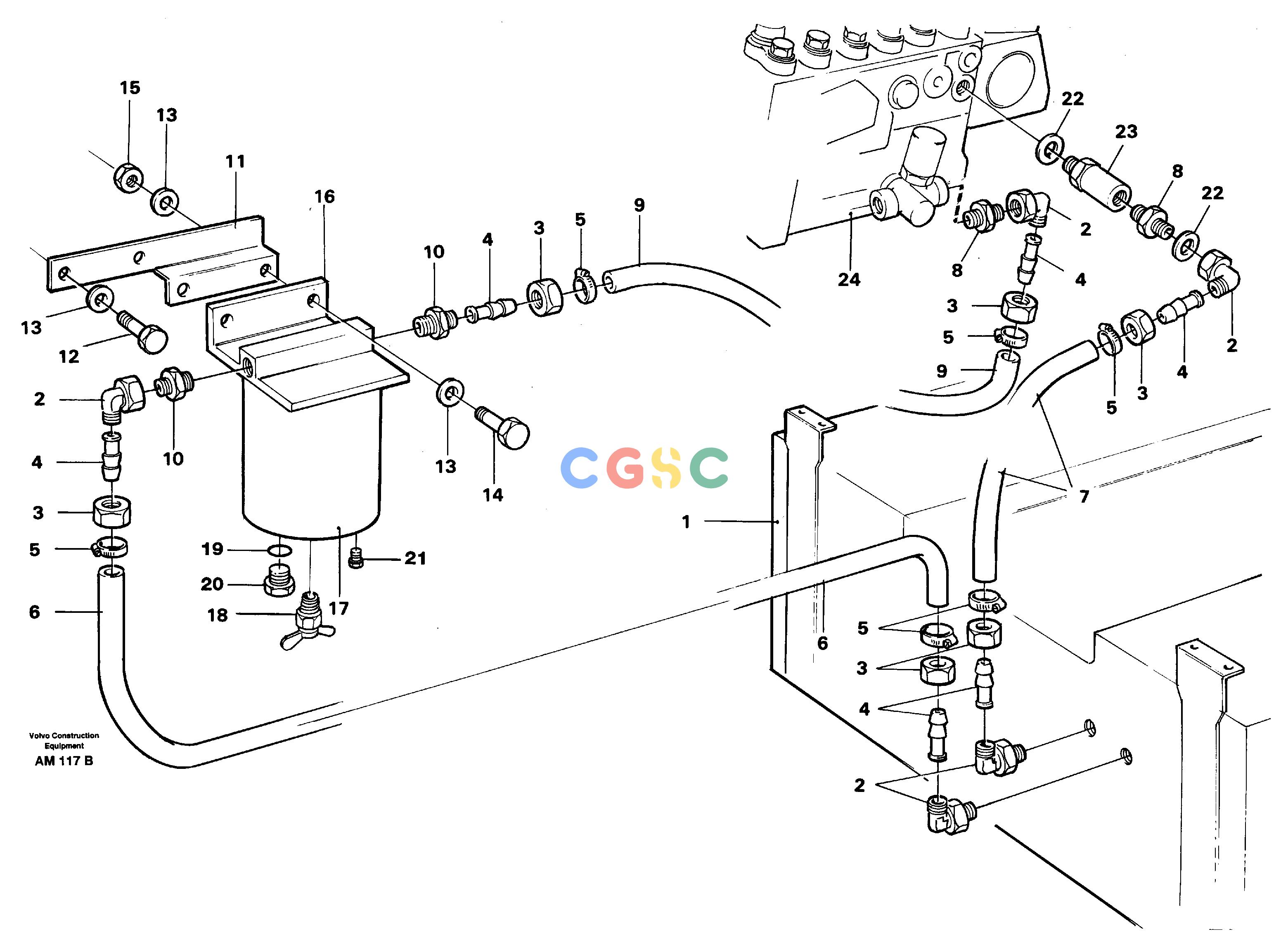

沃尔沃零件查询L330C VOLVO BM Fuel pipes: fuel tank - injection pumpVOLVO BM L330C SER NO - 60187 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1006 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel tank
|
|
| 2. |
VOE13946369
|
[5] |
Nipple
|
|
| 3. |
VOE956985
|
[6] |
Fitting nut
|
|
| 4. |
VOE13976729
|
[6] |
Nipple
|
|
| 5. |
VOE943470
|
[6] |
Hose clamp
|
|
| 6. |
VOE13980834
|
[REQ] |
Tube
|
L = 650 MM
|
| 7. |
VOE13980834
|
[REQ] |
Tube
|
L = 1120 MM
|
| 8. |
VOE11093936
|
[2] |
Nipple
|
|
| 9. |
VOE13980834
|
[REQ] |
Tube
|
L = 300 MM
|
| 10. |
VOE13944177
|
[2] |
Nipple
|
|
| 11. |
VOE11079996
|
[1] |
Bracket
|
|
| 12. |
VOE955297
|
[2] |
Hexagon screw
|
|
| 13. |
VOE13955894
|
[6] |
Washer
|
|
| 14. |
VOE940142
|
[2] |
Hexagon screw
|
|
| 15. |
VOE13945408
|
[2] |
Nut
|
|
| 16. |
VOE11109608
|
[1] |
Filter
|
(11079910)
|
| 17. |
VOE11702692
|
[1] |
Filter cartridge
|
|
| 18. |
VOE7082744
|
[1] |
Drain cock
|
|
| 19. |
VOE13807544
|
[1] |
Plug
|
0.5 IN
|
| 20. |
VOE13806936
|
[1] |
O-ring
|
|
| 21. |
VOE13812636
|
[1] |
Plug
|
0.125 IN
|
| 22. |
VOE13969011
|
[2] |
Gasket
|
|
| 23. |
VOE11996309
|
[1] |
Overflow valve
|
|
| 24. |
|
[1] |
Injection pump
|
|
