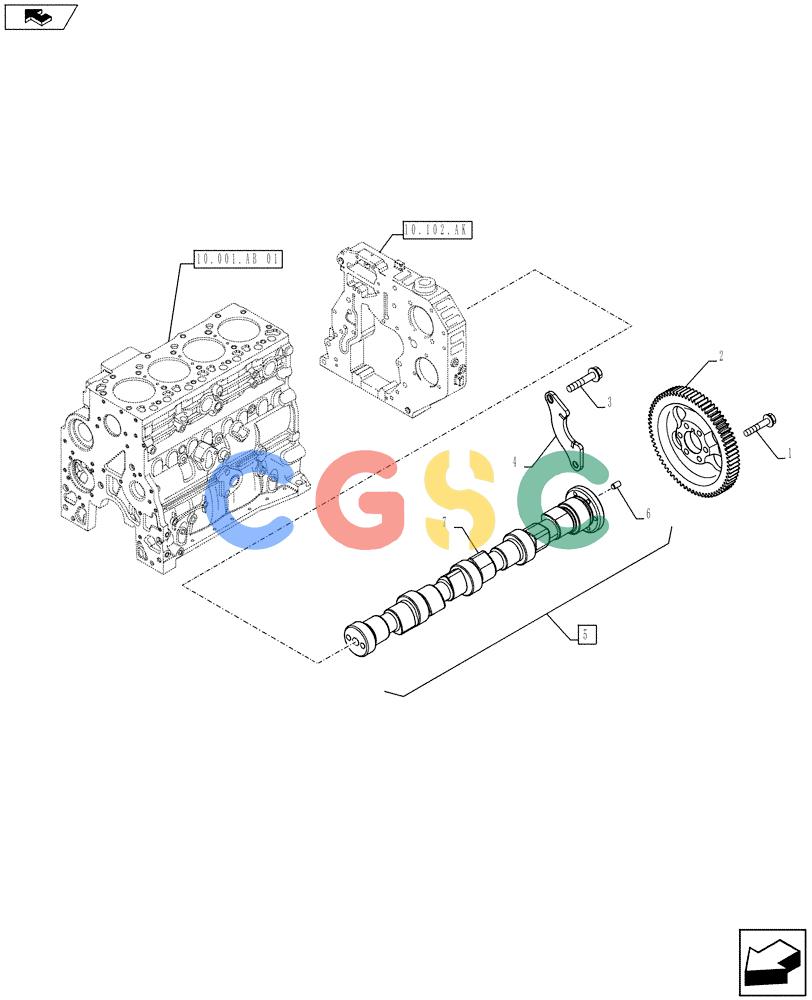

神钢零件查询(F4GE9484D J619) - ENGINE - 5801584504 - YM02P00020P1 (11/12-) (10.106.AA) - CAMSHAFT, TIMING CONTROL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4896622 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4897457 | [1] | SUPPORT | TOR |
| 5. | 2855690 | [1] | CAMSHAFT | TORASSY, Incl 6, 7 Superseded by part number: |
| 5. | 2855690R | [1] | REMAN-CAMSHAFT | RACF4GE9484D J619 ENGINE - 5801584504 - YM02P00020P1, ASSY (11/12-) |
| 5. | 2855690C | [1] | CORE-CAMSHAFT | RACReturn Number |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TOR |
| 7. | 2855691 | [1] | Camshaft, Incl in 5 | |
