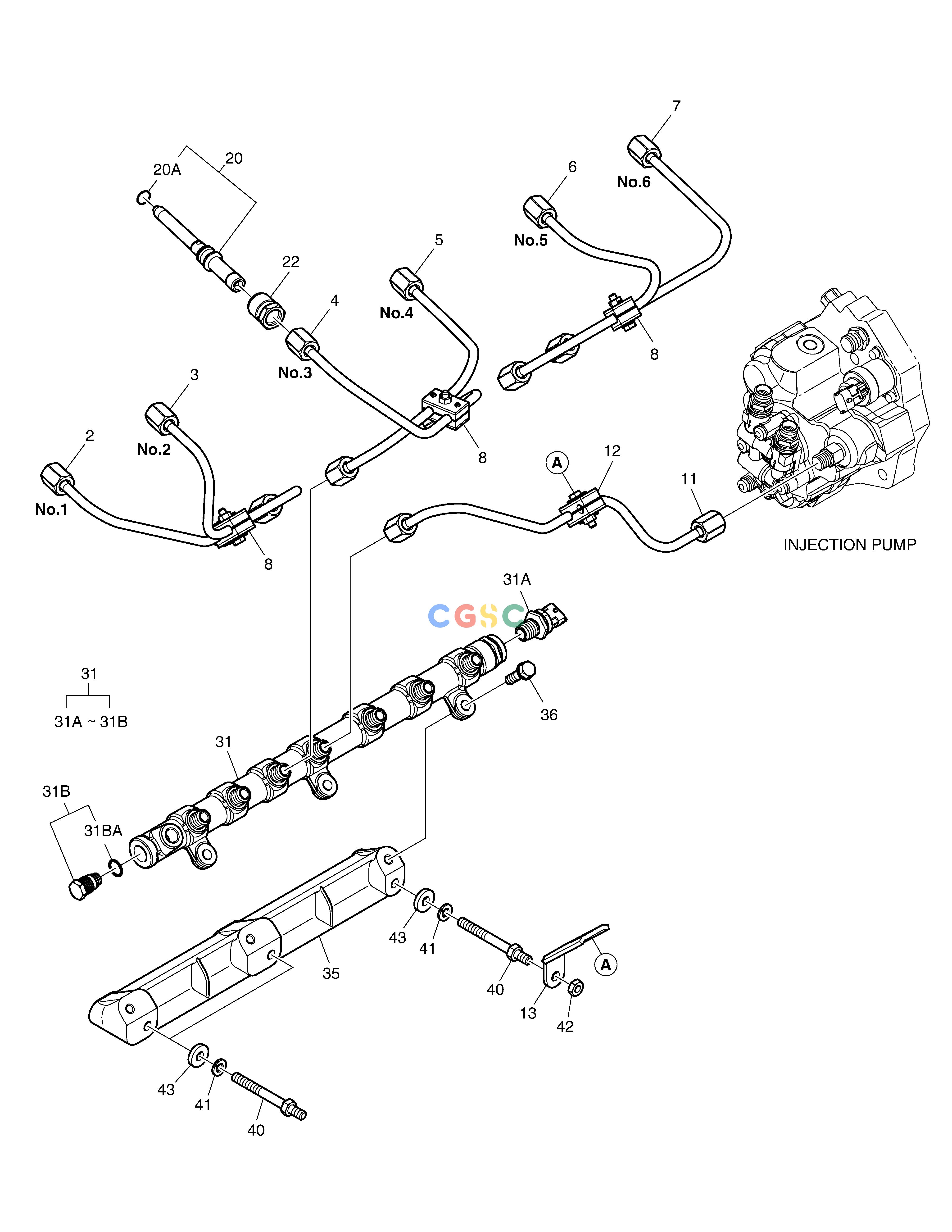

斗山零件查询INJECTION PIPE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 11. |
420208-00091
|
[1] |
|
|
| 12. |
65.97401-6036
|
[1] |
CLIP;PIPE
|
|
| 13. |
65.97480-0206A
|
[1] |
HOLDER
|
|
| 2. |
420208-00085
|
[1] |
|
|
| 20. |
430230-00009
|
[6] |
|
|
| 20A. |
65.96501-0438
|
[1] |
. O-RING
|
|
| 22. |
65.10415-0001
|
[6] |
NUT
|
|
| 3. |
420208-00086
|
[1] |
|
|
| 31. |
150120-00014
|
[1] |
|
|
| 31A. |
301309-00009
|
[1] |
|
|
| 31B. |
410126-00116
|
[1] |
|
|
| 31BA. |
65.96501-0431
|
[1] |
... O-RING
|
|
| 35. |
110442-00008
|
[1] |
|
|
| 36. |
06.01913-3117
|
[3] |
BOLT ASS`Y M8X30
|
|
| 4. |
420208-00087
|
[1] |
|
|
| 40. |
65.90201-0093
|
[3] |
BOLT;STUD
|
|
| 41. |
06.16731-2107
|
[3] |
WASHER
|
|
| 42. |
65.90535-0003
|
[1] |
NUT
|
|
| 43. |
06.15233-0105
|
[3] |
WASHER
|
|
| 5. |
420208-00088
|
[1] |
|
|
| 6. |
420208-00089
|
[1] |
|
|
| 7. |
420208-00090
|
[1] |
|
|
| 8. |
65.97401-6036
|
[3] |
CLIP;PIPE
|
|
