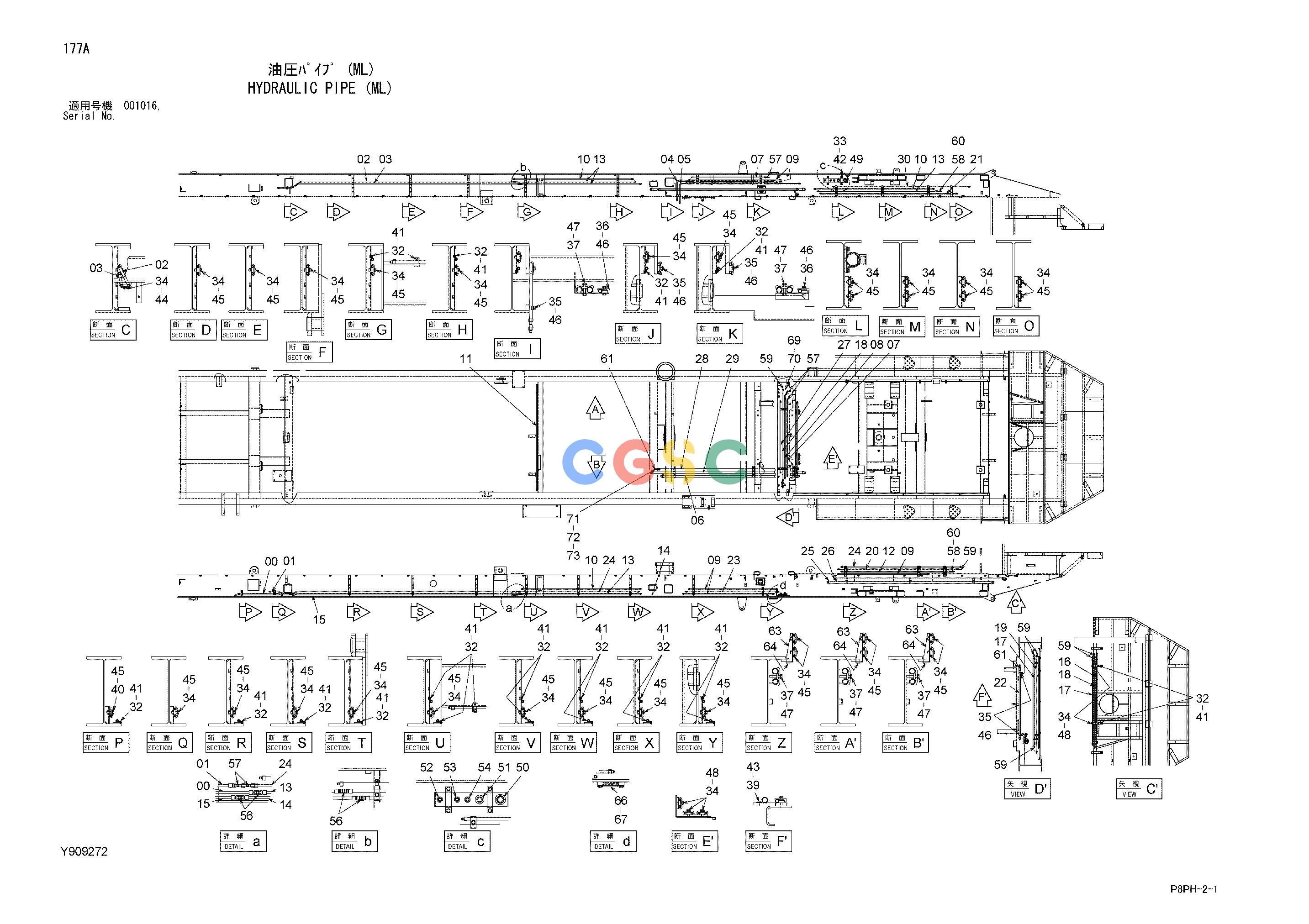

日立零件查询（AR2000）HYDRAULIC PIPE (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
855 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802187 | [1] | PIPE | |
| 01. | Y802188 | [1] | PIPE | |
| 02. | Y802189 | [1] | PIPE | |
| 03. | Y802190 | [1] | PIPE | |
| 04. | Y802191 | [1] | PIPE | |
| 05. | Y802192 | [1] | PIPE | |
| 06. | Y971352 | [1] | PIPE | |
| 07. | Y971436 | [2] | PIPE | |
| 08. | Y971437 | [1] | PIPE | |
| 09. | Y971438 | [5] | PIPE | |
| 10. | Y971439 | [3] | PIPE | |
| 11. | Y971440 | [1] | PIPE | |
| 12. | Y971441 | [1] | PIPE | |
| 13. | Y971442 | [4] | PIPE | |
| 14. | Y971443 | [1] | PIPE | |
| 15. | Y971444 | [1] | PIPE | |
| 16. | Y971445 | [1] | PIPE | |
| 17. | Y971446 | [2] | PIPE | |
| 18. | Y971447 | [2] | PIPE | |
| 19. | Y971448 | [1] | PIPE | |
| 20. | Y971449 | [1] | PIPE | |
| 21. | Y971450 | [1] | PIPE | |
| 22. | Y971451 | [1] | PIPE | |
| 23. | Y971452 | [1] | PIPE | |
| 24. | Y971453 | [2] | PIPE | |
| 25. | Y971456 | [1] | PIPE | |
| 26. | Y971457 | [1] | PIPE | |
| 27. | Y971465 | [1] | PIPE | |
| 28. | Y971466 | [1] | PIPE | |
| 29. | Y971467 | [1] | PIPE | |
| 30. | Y971468 | [1] | PIPE | |
| 32. | 4000857 | [22] | CLIP;PIPE | |
| 33. | 4000909 | [2] | CLAMP;PIPE | |
| 34. | 4001156 | [39] | CLAMP;PIPE | |
| 35. | 4053593 | [5] | CLAMP;PIPE | |
| 36. | 4053594 | [2] | CLAMP;PIPE | |
| 37. | 4053599 | [5] | CLAMP;PIPE | |
| 39. | 4192035 | [1] | CLIP | |
| 40. | 4624510 | [1] | CLAMP;PIPE | |
| 41. | J260612 | [22] | BOLT;SEMS | |
| 41A. | J900612 | [1] | BOLT | |
| 41B. | A590106 | [1] | WASHER;PLANE | |
| 42. | J271016 | [4] | BOLT;SEMS | |
| 42A. | J901016 | [1] | BOLT | |
| 42B. | J222010 | [1] | WASHER | |
| 43. | J271020 | [1] | BOLT;SEMS | |
| 43A. | J901020 | [1] | BOLT | |
| 43B. | J222010 | [1] | WASHER | |
| 44. | J271030 | [1] | BOLT;SEMS | |
| 44A. | J901030 | [1] | BOLT | |
| 44B. | J222010 | [1] | WASHER | |
| 45. | J271035 | [39] | BOLT;SEMS | |
| 45A. | J901035 | [1] | BOLT | |
| 45B. | J222010 | [1] | WASHER | |
| 46. | J271045 | [7] | BOLT;SEMS | |
| 46A. | J901045 | [1] | BOLT | |
| 46B. | J222010 | [1] | WASHER | |
| 47. | J271265 | [5] | BOLT;SEMS | |
| 47A. | J901265 | [1] | BOLT | |
| 47B. | J222012 | [1] | WASHER | |
| 49. | Y802200 | [1] | PIPE | |
| 50. | 4042035 | [1] | ADAPTER;S | |
| 50A. | 970860 | [1] | O-RING | |
| 51. | 4214444 | [1] | ADAPTER;S | |
| 51A. | 4506429 | [1] | O-RING | |
| 52. | 4303003 | [1] | TEE;S | |
| 52A. | 4506418 | [1] | O-RING | |
| 53. | A852144 | [1] | ADAPTER;S | |
| 53A. | 4506418 | [1] | O-RING | |
| 54. | A852444 | [1] | TEE;S | |
| 54A. | 4506418 | [1] | O-RING | |
| 56. | 4231653 | [4] | ADAPTER;S | |
| 57. | 4246672 | [5] | UNION;M | |
| 58. | 4320056 | [2] | ADAPTER;S | |
| 59. | 4252786 | [7] | TEE;S | |
| 60. | 4401066 | [2] | UNION;M | |
| 61. | 4426339 | [2] | UNION;M | |
| 63. | Y971458 | [3] | BRACKET | |
| 64. | J271025 | [3] | BOLT;SEMS | |
| 64A. | J901025 | [1] | BOLT | |
| 64B. | J222010 | [1] | WASHER | |
| 66. | Y412666 | [2] | CLAMP;HOSE | |
| 67. | J271220 | [4] | BOLT;SEMS | |
| 67A. | J901220 | [1] | BOLT | |
| 67B. | J222012 | [1] | WASHER | |
| 69. | Y700972 | [1] | BRACKET | |
| 70. | J271220 | [4] | BOLT;SEMS | |
| 70A. | J901220 | [1] | BOLT | |
| 70B. | J222012 | [1] | WASHER | |
| 71. | 4426339 | [1] | UNION;M | |
| 72. | Y414956 | [1] | REDUCER;S | |
| 73. | Y414957 | [1] | NUT | |
