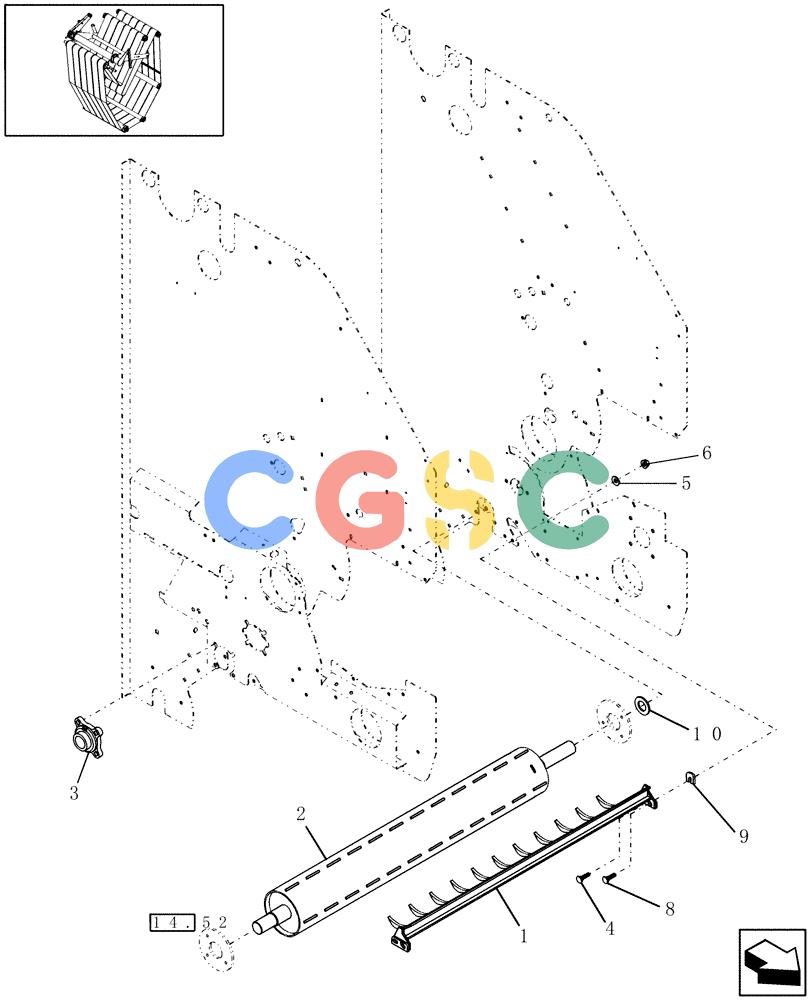

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (14.13) - STARTER ROLL & RAKE, STUFFER FEEDER, EUROPE & R.O.W. Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
511 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86836619
|
[1] |
RAKE
|
PA
Superseded by part number: 87023404
|
| 2. |
86635406
|
[1] |
ROLL
|
NH
Starter
|
| 3. |
86610638
|
[2] |
BEARING ASSY,45mm ID
|
NH
|
| 4. |
711-10030
|
[2] |
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 5. |
140045
|
[4] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 6. |
825-2410
|
[4] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 8. |
811-10040
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 9. |
122889
|
[1] |
SHIM
|
NH
.015" Superseded by part number: 87658033
|
| 10. |
86619043
|
[1] |
WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk
|
NH
|
