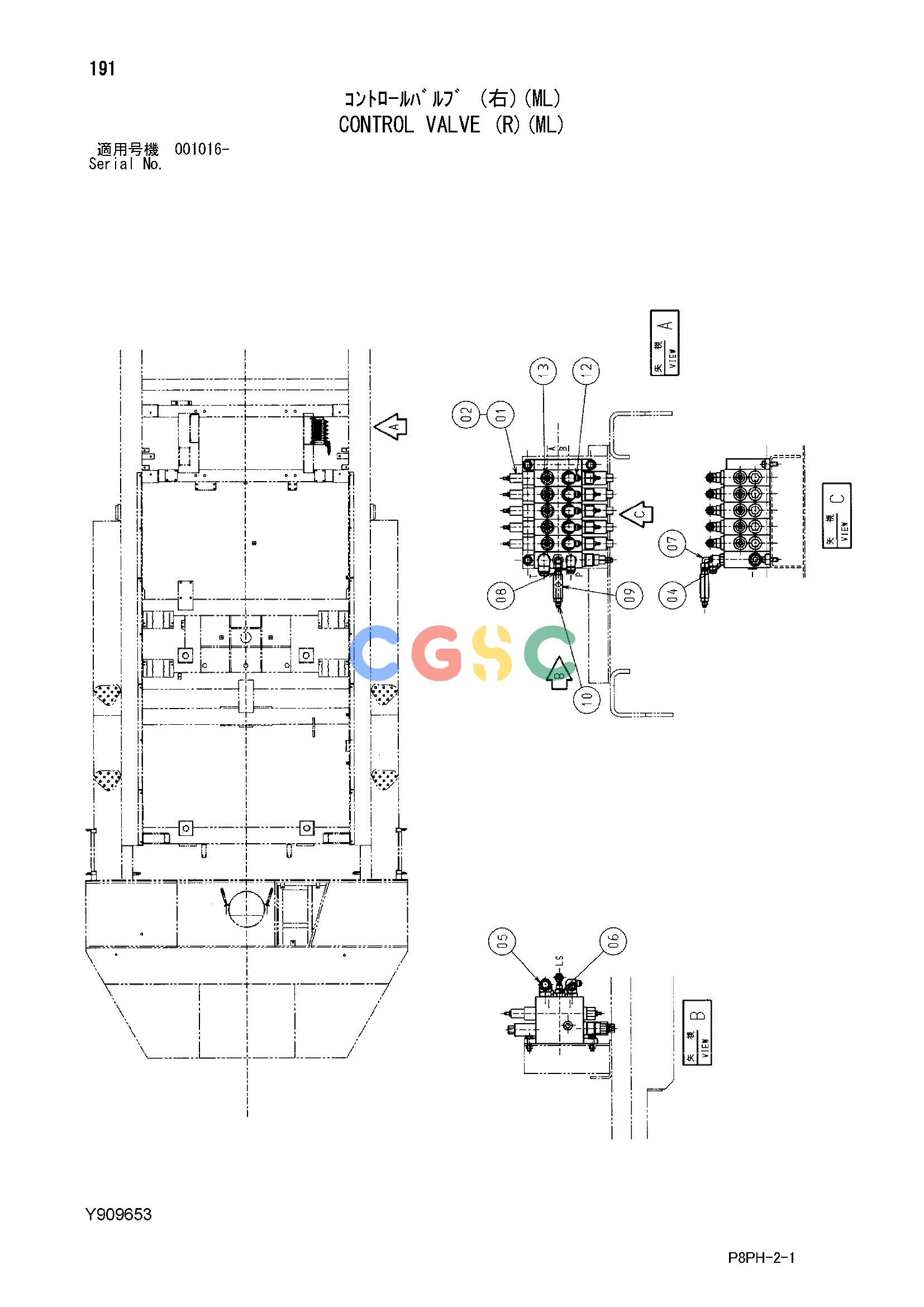

日立零件查询（AR2000）CONTROL VALVE (R)(ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
618 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411214 | [1] | VALVE;CONTROL | |
| 02. | J260830 | [3] | BOLT;SEMS | |
| 02A. | J900830 | [1] | BOLT | |
| 02B. | A590108 | [1] | WASHER;PLANE | |
| 04. | A852334 | [1] | ELBOW;S | |
| 04A. | 4509180 | [1] | O-RING | |
| 05. | 4190246 | [1] | ELBOW;S | |
| 05A. | 4506418 | [1] | O-RING | |
| 06. | A852122 | [1] | ADAPTER;S | |
| 06A. | 957366 | [1] | O-RING | |
| 07. | 4346096 | [1] | UNION;S | |
| 08. | Y411671 | [1] | ADAPTER;S | |
| 09. | Y411168 | [1] | VALVE;CHECK | |
| 10. | 4241381 | [1] | ADAPTER;S | |
| 10A. | 4510185 | [1] | O-RING | |
| 12. | A852333 | [5] | ELBOW;S | |
| 12A. | 4509180 | [1] | O-RING | |
| 13. | A852133 | [5] | ADAPTER;S | |
| 13A. | 4509180 | [1] | O-RING | |
