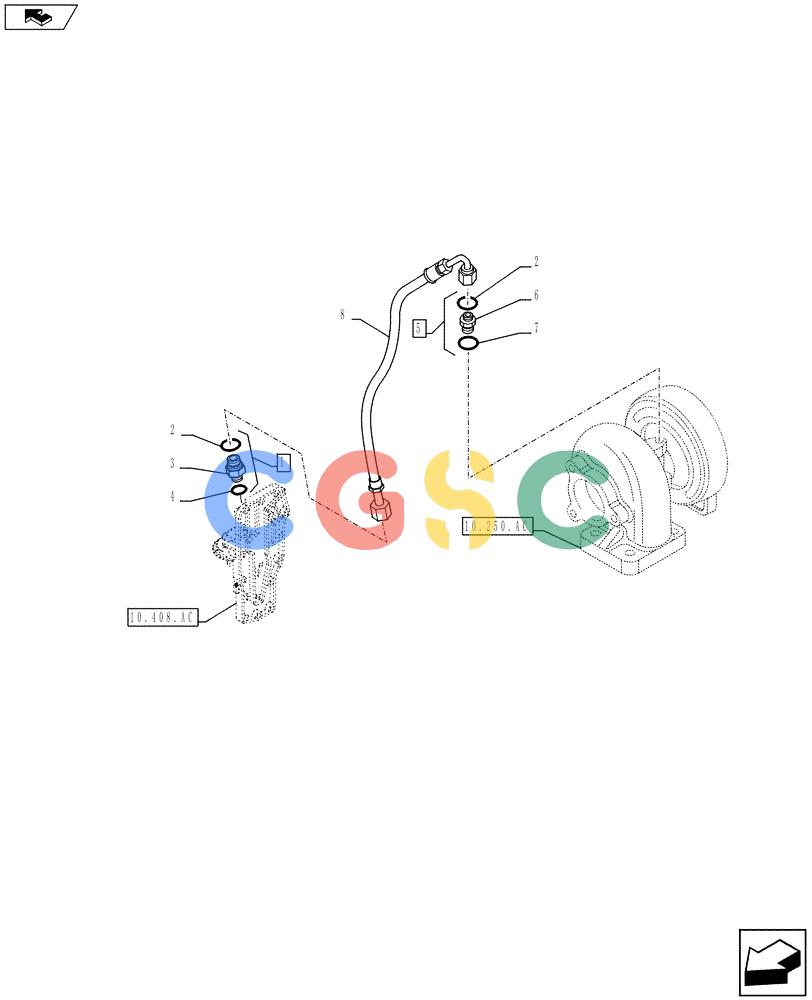

神钢零件查询(F4GE9484D J619) - ENGINE - 5801584504 - YM02P00020P1 (11/12-) (10.250.AD) - TURBOCHARGER, SUPPLY LINE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
815 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857015 | [1] | HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L | TORASSY, Incl 2 - 4, Turbo oil drain Superseded by part number: |
| 2. | 4899467 | [2] | GASKET | TOR |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONPipe, Incl in 1 |
| 4. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 5. | 4899106 | [1] | HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB | TORASSY, Incl 2, 6, 7 |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONConnector, Incl in 5 |
| 7. | 4899108 | [1] | O-RING,0.364mm ID x 0.07mm Width | TOR Superseded by part number: 17277981 |
| 7. | J932484 | [1] | WASHER | CAS Superseded by part number: J932484AM |
