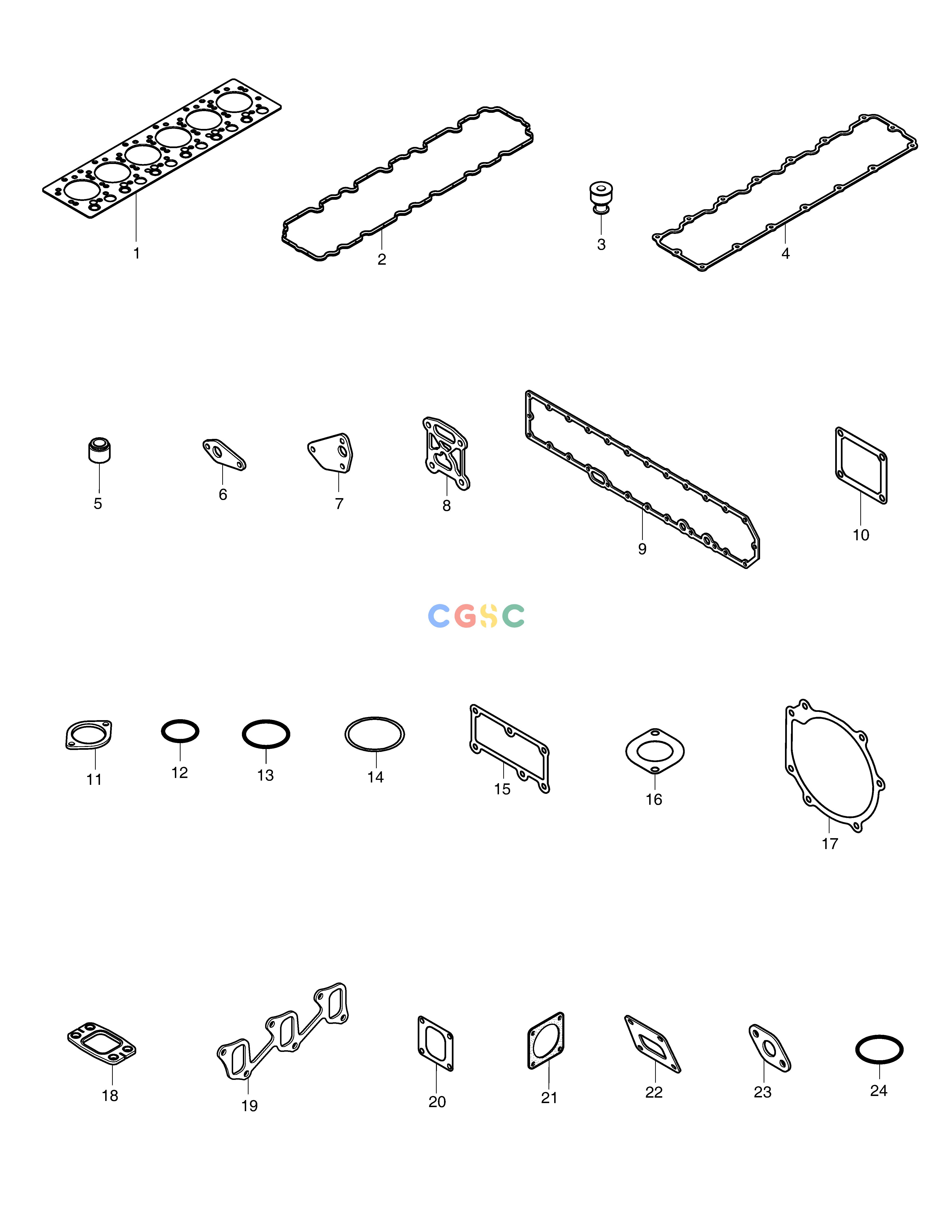

斗山零件查询OVER HAUL GASKET KIT - TOP DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400632-00046
|
[1] |
|
|
| 1. |
65.03901-0074
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 10. |
400602-00148
|
[1] |
|
|
| 11. |
400602-00132
|
[1] |
|
|
| 12. |
65.96501-0089A
|
[3] |
O-RING
|
|
| 13. |
06.56342-1208
|
[2] |
O-RING
|
|
| 14. |
65.06901A0069
|
[2] |
GASKET
|
|
| 15. |
65.06901-0040
|
[1] |
GASKET;THERMOSTAT HOUSING
|
|
| 16. |
400621-00011
|
[1] |
|
|
| 17. |
400602-00133
|
[1] |
|
|
| 18. |
65.08901-0032A
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 19. |
65.08902-0035
|
[2] |
GASKET;INTAKE MANIFOLD
|
|
| 2. |
65.03905-0032
|
[1] |
GASKET;COVER
|
|
| 20. |
400618-00003
|
[1] |
|
|
| 21. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 22. |
400629-00013
|
[1] |
|
|
| 23. |
65.96601-0052
|
[1] |
GASKET
|
|
| 24. |
401002-00226
|
[2] |
|
|
| 3. |
65.03905-5002
|
[8] |
PACKING;HEAD COVER
|
|
| 4. |
400603-00048
|
[1] |
GASKET;INTERMEDIATE COVER
|
|
| 5. |
65.04902-0020
|
[24] |
SEAL;VALVE STEAM
|
|
| 6. |
65.05902-0017
|
[1] |
GASKET;OIL COOLER
|
|
| 7. |
65.05902-0018
|
[1] |
GASKET;OIL COOLER
|
|
| 8. |
65.05901-0026
|
[1] |
GASKET;OIL FILTER
|
|
| 9. |
400621-00010
|
[2] |
|
|
