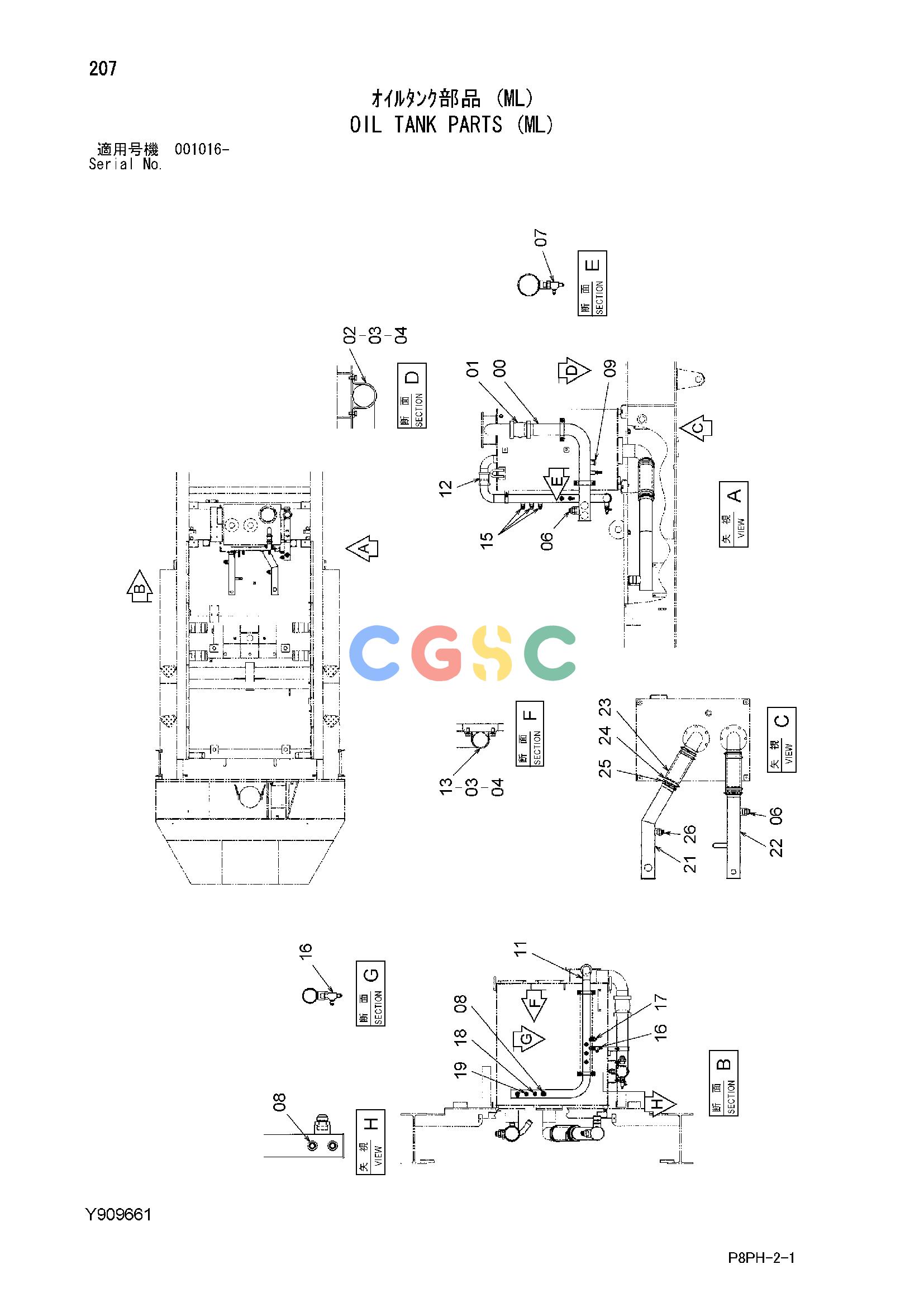

日立零件查询（AR2000）OIL TANK PARTS (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802194 | [1] | PIPE;RETURN | |
| 01. | 4071214 | [1] | COUPLING | |
| 02. | 4000910 | [2] | CLAMP;PIPE | |
| 03. | J901020 | [8] | BOLT | |
| 04. | A590910 | [8] | WASHER;SPRING | |
| 06. | 4250083 | [2] | ADAPTER;S | |
| 06A. | 970860 | [1] | O-RING | |
| 07. | 4217345 | [1] | TEE;S | |
| 07A. | 4506418 | [1] | O-RING | |
| 08. | A852166 | [3] | ADAPTER;S | |
| 08A. | 4506424 | [1] | O-RING | |
| 09. | A885006 | [1] | PLUG | |
| 09A. | 4506424 | [1] | O-RING | |
| 11. | Y802195 | [1] | PIPE;DRAIN | |
| 12. | 4067833 | [1] | COUPLING | |
| 13. | 4053865 | [2] | CLAMP;PIPE | |
| 15. | 4207916 | [3] | ADAPTER;S | |
| 15A. | 4506418 | [1] | O-RING | |
| 16. | 4222016 | [2] | TEE;S | |
| 16A. | 4506418 | [1] | O-RING | |
| 17. | A852143 | [1] | ADAPTER;S | |
| 17A. | 4506418 | [1] | O-RING | |
| 18. | 4288001 | [1] | ADAPTER;S | |
| 18A. | 4506418 | [1] | O-RING | |
| 19. | 4296066 | [1] | TEE;S | |
| 19A. | 4506418 | [1] | O-RING | |
| 21. | Y802164 | [1] | PIPE;SUCTION | |
| 22. | Y802149 | [1] | PIPE;SUCTION | |
| 23. | 4307669 | [2] | HOSE;RUBBER | |
| 24. | 4282488 | [4] | CLAMP;HOSE | |
| 25. | 4512716 | [4] | CLAMP;HOSE | |
| 26. | 4314094 | [1] | ADAPTER;S | |
| 26A. | 970860 | [1] | O-RING | |
