斗山零件查询ROCKER ARM DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
361 次

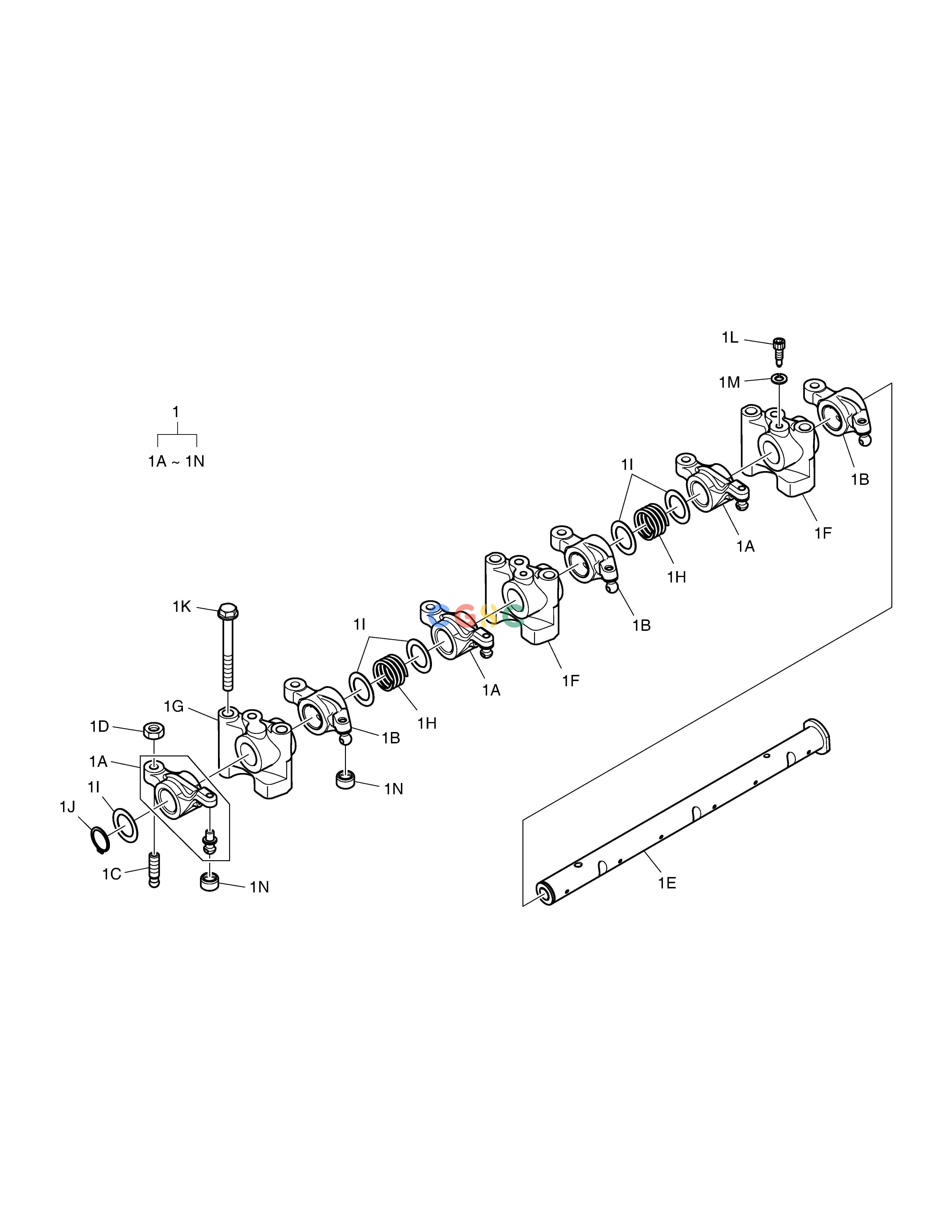

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.04200-6030E
|
[2] |
ROCKER ARM SHAFT ASS'Y
|
|
| 1A. |
65.04201-5025
|
[3] |
ARM;ROCKER
|
|
| 1B. |
65.04201-5026
|
[3] |
ARM;ROCKER
|
|
| 1C. |
65.04205-0012
|
[6] |
SCREW;ADJUST
|
|
| 1D. |
65.90501-0031
|
[6] |
NUT;HEX.
|
|
| 1E. |
65.04203-5017A
|
[1] |
SHAFT;ROCKER ARM
|
|
| 1F. |
65.04202-0026
|
[2] |
BRACKET;ROCKER ARM
|
|
| 1G. |
65.04202-0027
|
[1] |
BRACKET;ROCKER ARM
|
|
| 1H. |
65.97601-0118
|
[2] |
SPRING;COMPRESSION
|
|
| 1I. |
65.90701-0136B
|
[5] |
. WASHER
|
|
| 1J. |
06.29010-0120
|
[1] |
. RING;SNAP
|
|
| 1K. |
65.90020-0093
|
[6] |
BOLT;COLLARED HEX.
|
|
| 1L. |
65.90030-0020
|
[1] |
BOLT;SOCKET HEAD
|
|
| 1M. |
06.16110-0106
|
[1] |
. WASHER
|
|
| 1N. |
65.04209-0002A
|
[6] |
CAP;ADJUST SCREW
|
|
