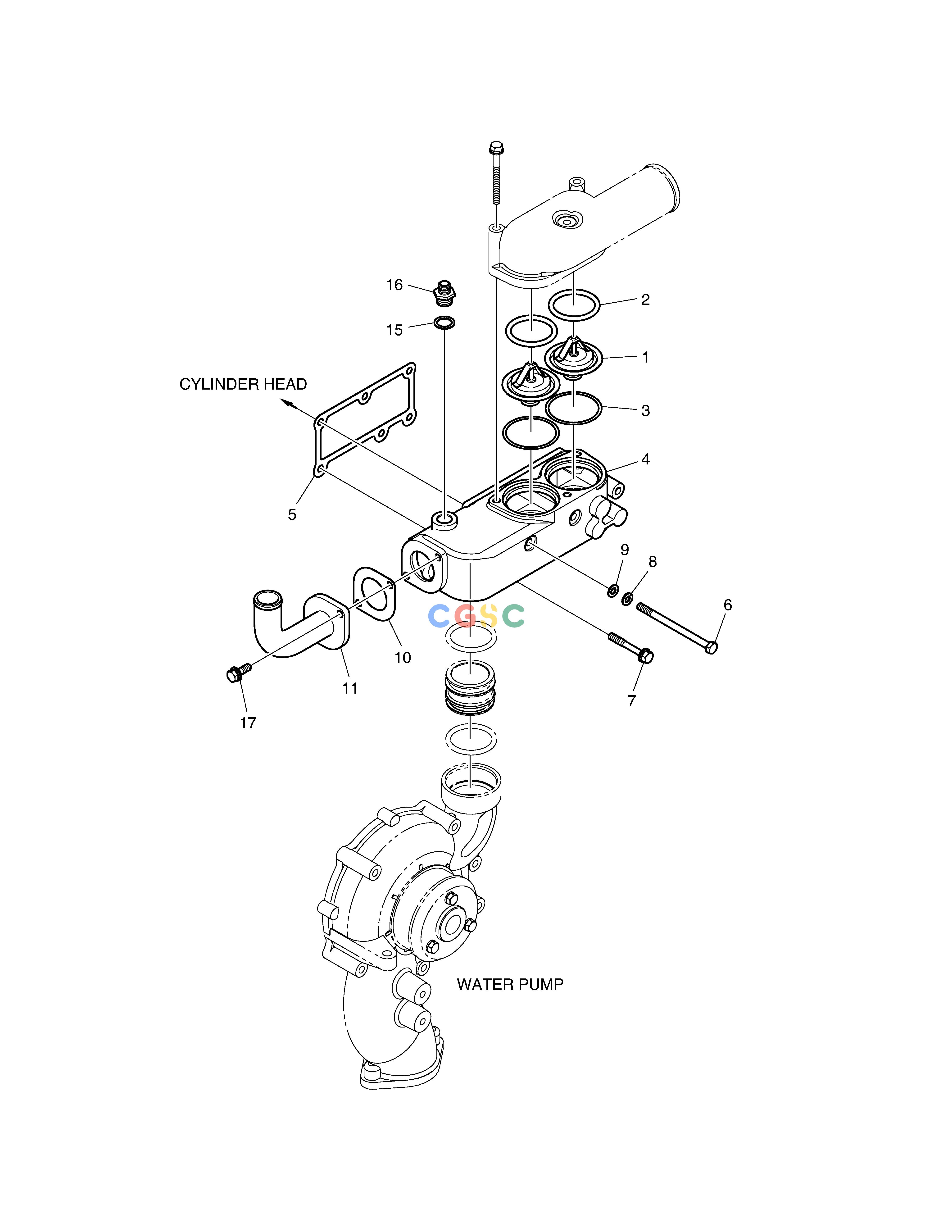

斗山零件查询THERMOSTAT DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06402-0006
|
[2] |
THERMOSTAT
|
|
| 10. |
400621-00011
|
[1] |
|
|
| 11. |
420211-00132
|
[1] |
|
|
| 15. |
06.56190-0713
|
[1] |
RING;SEAL
|
|
| 16. |
430201-00153
|
[1] |
|
|
| 17. |
06.01923-3115
|
[2] |
BOLT ASS`Y M8X25
|
|
| 2. |
06.56342-1208
|
[2] |
O-RING
|
|
| 3. |
65.06901A0069
|
[2] |
GASKET
|
|
| 4. |
110980-00034
|
[1] |
|
|
| 5. |
65.06901-0040
|
[1] |
GASKET;THERMOSTAT HOUSING
|
|
| 6. |
06.01013-9127
|
[3] |
BOLT M8X120
|
|
| 7. |
06.01923-3123
|
[3] |
. BOLT ASS`Y M8X60
|
|
| 8. |
06.16731-2107
|
[3] |
WASHER
|
|
| 9. |
06.15010-2311
|
[3] |
WASHER
|
|
