| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |

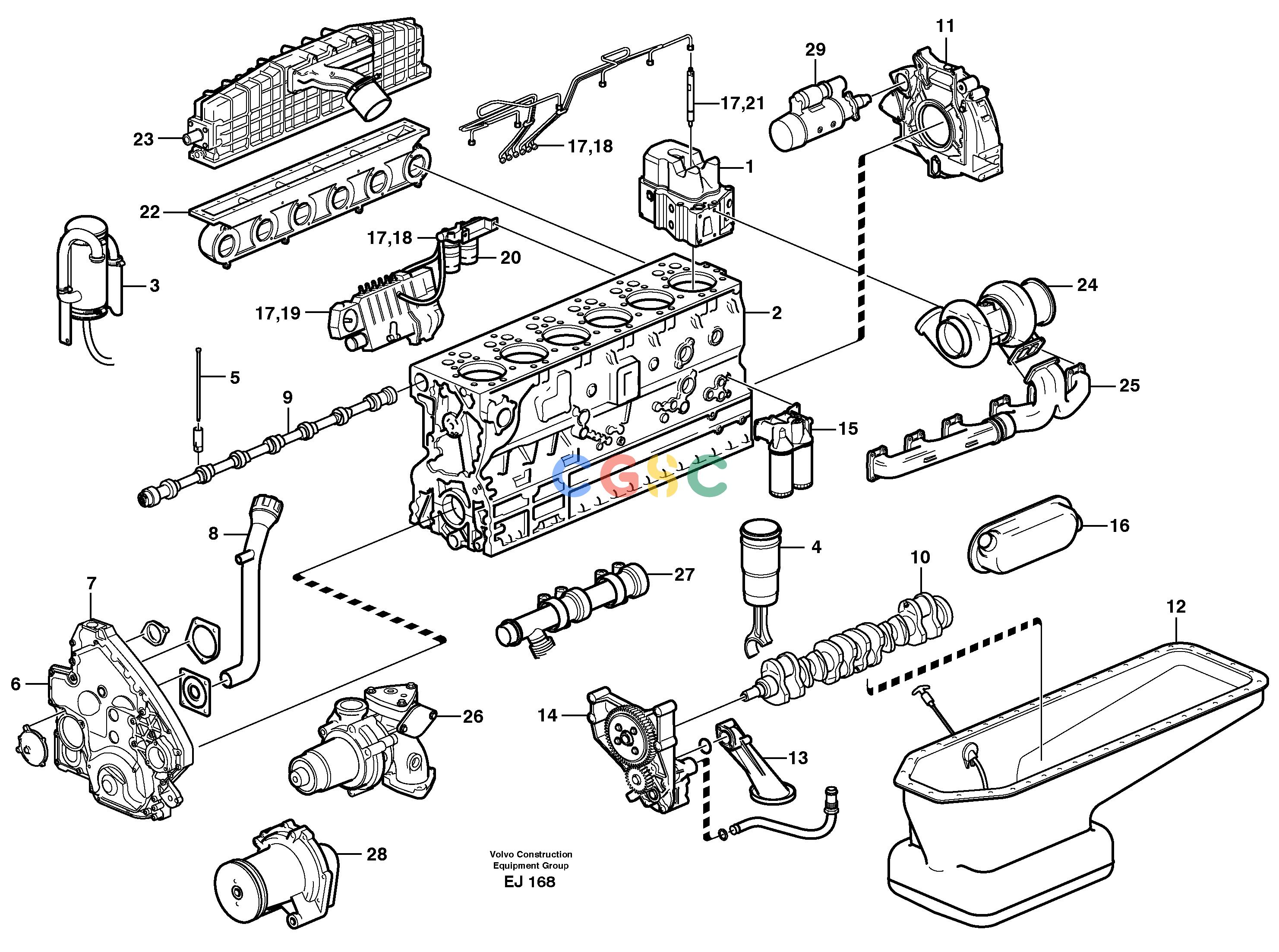

VOE15004535
|
[1] |
Engine
|
TD 164 KAE
|
| 1. |
|
[6] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[1] |
Crankcase ventilation
|
|
| 4. |
|
[1] |
Cylinder liner
|
|
| 5. |
|
[1] |
Valve mechanism
|
|
| 6. |
|
[1] |
Timing gear casing
|
|
| |
|
|
and gears
|
|
| 7. |
|
[1] |
Timing gear casing
|
|
| |
|
|
and covers
|
|
| 8. |
|
[1] |
Filler pipe
|
|
| 9. |
|
[1] |
Camshaft
|
|
| 10. |
|
[1] |
Crankshaft
|
|
| 11. |
|
[1] |
Flywheel housing
|
|
| 12. |
|
[1] |
Oil sump
|
|
| 13. |
|
[1] |
Lubricating system
|
|
| 14. |
|
[1] |
Oil pump
|
|
| 15. |
|
[1] |
Oil filter
|
|
| 16. |
|
[1] |
Oil cooler
|
|
| 17. |
|
[1] |
Fuel system
|
|
| 18. |
|
[1] |
Fuel pipes
|
|
| |
|
[1] |
Fuel pipe
|
|
| 19. |
|
[1] |
Injection pump
|
|
| 20. |
|
[1] |
Fuel filter
|
|
| 21. |
|
[6] |
Injector
|
|
| 22. |
|
[1] |
Inlet pipe
|
|
| 23. |
|
[1] |
Charge air cooler
|
|
| 24. |
|
[1] |
Turbocharger
|
|
| 25. |
|
[1] |
Exhaust pipe
|
|
| 26. |
|
[1] |
Water pump
|
|
| 27. |
|
[1] |
Tube assembly
|
|
| 28. |
|
[1] |
Extra water pump
|
|
| 29. |
|
[1] |
Starter motor
|
|
