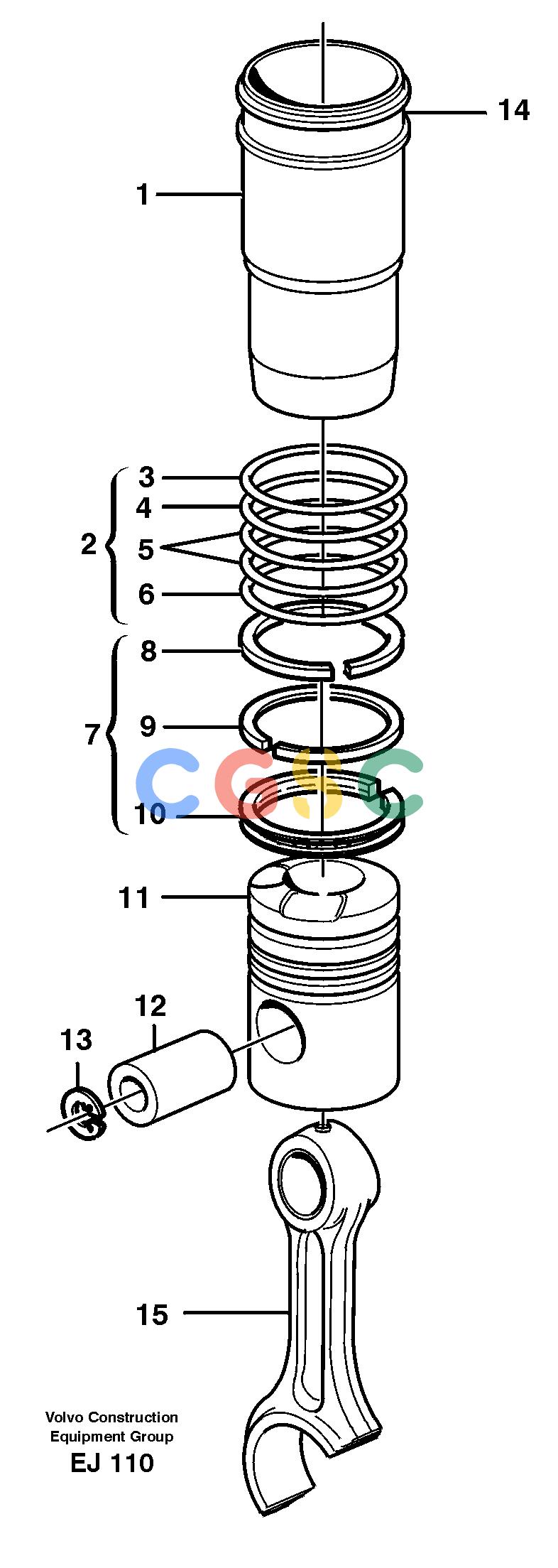

沃尔沃零件查询L330D Cylinder liner and pistonNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
219 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11703762
|
[6] |
Cylinder liner kit
|
|
| 1. |
VOE1556533
|
[6] |
Cylinder Liner
|
|
| 2. |
VOE270935
|
[6] |
Sealing kit
|
|
| 3. |
VOE1543507
|
[6] |
Sealing ring
|
|
| 4. |
VOE1543501
|
[6] |
Sealing ring
|
|
| 5. |
VOE1543568
|
[12] |
Sealing ring
|
|
| 6. |
VOE1543373
|
[6] |
Sealing ring
|
|
| 7. |
VOE276840
|
[6] |
Piston ring kit
|
|
| 8. |
VOE1556578
|
[6] |
Compression ring
|
|
| 9. |
VOE1556566
|
[6] |
Compression ring
|
|
| 10. |
VOE1556580
|
[6] |
Compression ring
|
|
| 11. |
VOE1556963
|
[6] |
Piston
|
|
| 12. |
VOE1556939
|
[6] |
Gudgeon pin
|
|
| 13. |
VOE914532
|
[12] |
Retaining ring
|
|
| 14. |
VOE1548125
|
[REQ] |
Shim
|
THICK = 1,2 MM
|
| |
VOE1548126
|
[REQ] |
Shim
|
THICK = 0,3 MM
|
| |
VOE1548127
|
[REQ] |
Shim
|
THICK = 0,5 MM
|
| 15. |
|
[1] |
Connecting rod
|
|
