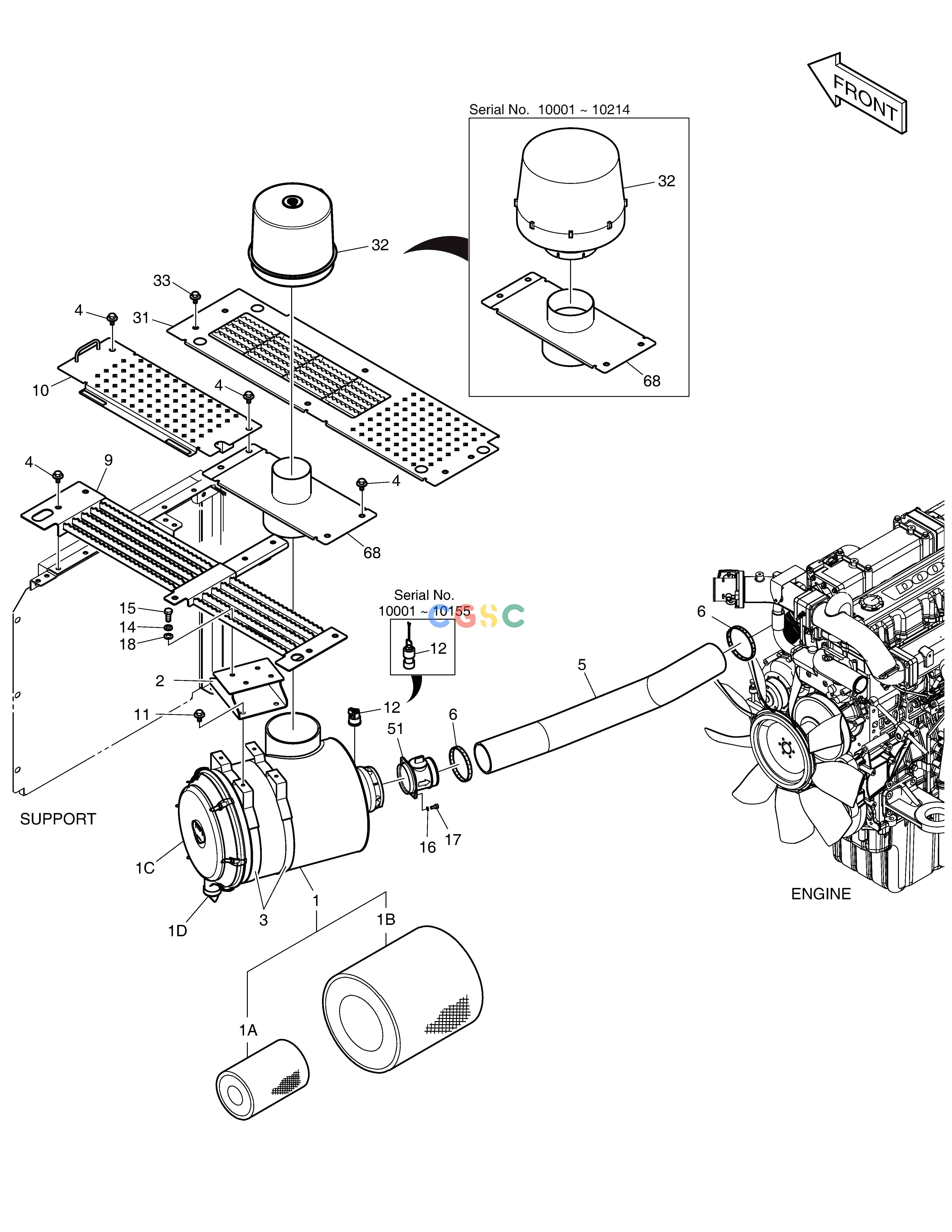

斗山零件查询AIR CLEANER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
933 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00090
|
[-] |
|
|
| 1. |
400414-00152
|
[1] |
|
|
| 10. |
110508-00340C
|
[1] |
|
|
| 11. |
DS0025017
|
[4] |
BOLT
|
|
| 12. |
170-00004
|
[1] |
INDICATOR
|
|
| 12. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 14. |
S5102703
|
[4] |
WASHER
|
|
| 15. |
S0515266
|
[4] |
BOLT
|
|
| 16. |
S5110303
|
[2] |
WASHER;SPRING M6
|
|
| 17. |
S2204466
|
[2] |
BOLT
|
|
| 18. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 1A. |
474-00037
|
[1] |
ELEMENT;INNER
|
|
| 1B. |
474-00038
|
[1] |
ELEMENT;OUTER
|
|
| 1C. |
204-00069
|
[1] |
COVER
|
|
| 1D. |
204-00070
|
[1] |
VALVE
|
|
| 2. |
110401-00012A
|
[1] |
|
|
| 3. |
124-00297A
|
[2] |
BAND
|
|
| 31. |
110508-00341B
|
[1] |
|
|
| 32. |
K1043471
|
[1] |
PRE CLEANER
|
|
| 32. |
400415-00043
|
[1] |
|
|
| 33. |
DS0025015
|
[6] |
BOLT
|
|
| 4. |
DS0025015
|
[10] |
BOLT
|
|
| 5. |
420101-00291A
|
[1] |
|
|
| 51. |
301308-00036
|
[1] |
|
|
| 6. |
S8510118
|
[2] |
CLAMP
|
|
| 68. |
110508-00338A
|
[1] |
|
|
| 68. |
110508-23837
|
[1] |
|
|
| 9. |
110508-00339B
|
[1] |
|
|
