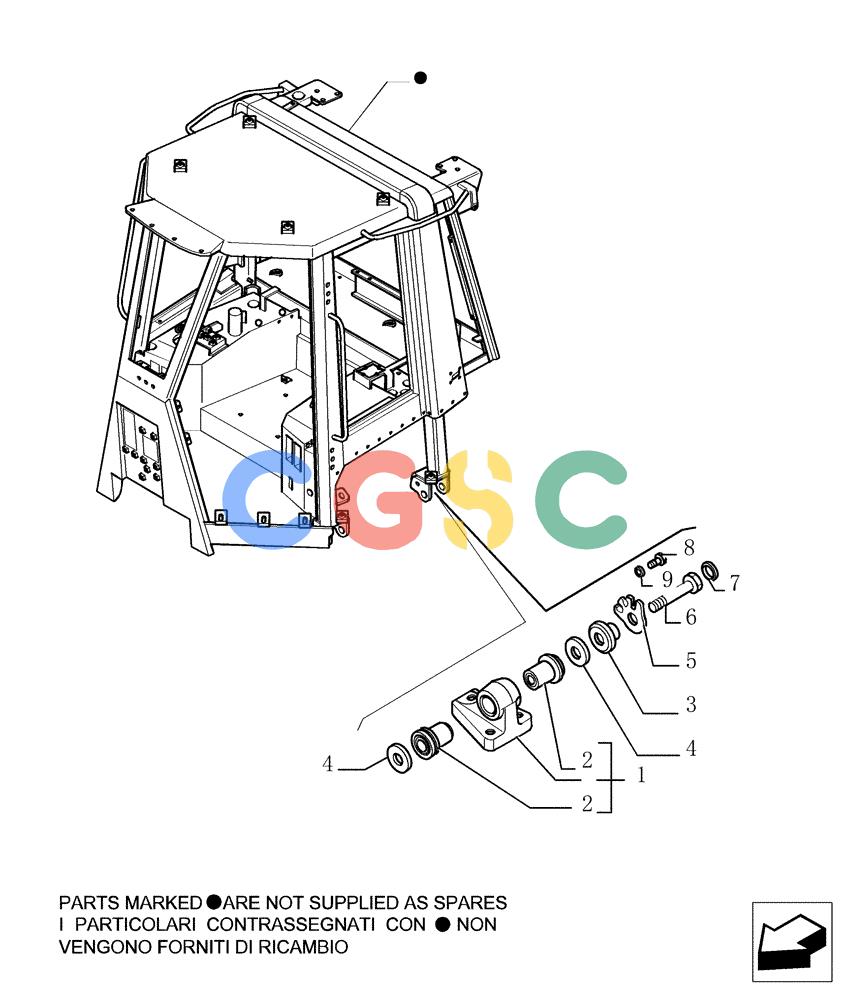

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[02A]) - ROPS CAB WITH CONDITIONER - COMPONENTS - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
722 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067987 | [4] | SUPPORT | LEC- ASSY |
| 2. | 79060730 | [2] | BUSHING | LEC |
| 3. | 79084966 | [4] | BUSHING | LEC |
| 4. | 79085441 | [8] | WASHER,24.6mm ID x 90mm OD x 5mm Thk | LEC |
| 5. | 79093828 | [4] | PLATE | LEC |
| 6. | 79093830 | [4] | SCREW,Hex, M24 x 2 x 150mm | LEC |
| 7. | 13398976 | [4] | SNAP RING,M40, Int | JES |
| 8. | 14420124 | [4] | HEX SOC SCREW,M10 x 25mm, Cl 8.8 | LEC Superseded by part number: 14420121 |
| 9. | 76067743 | [4] | WASHER,M10 | LEC |
