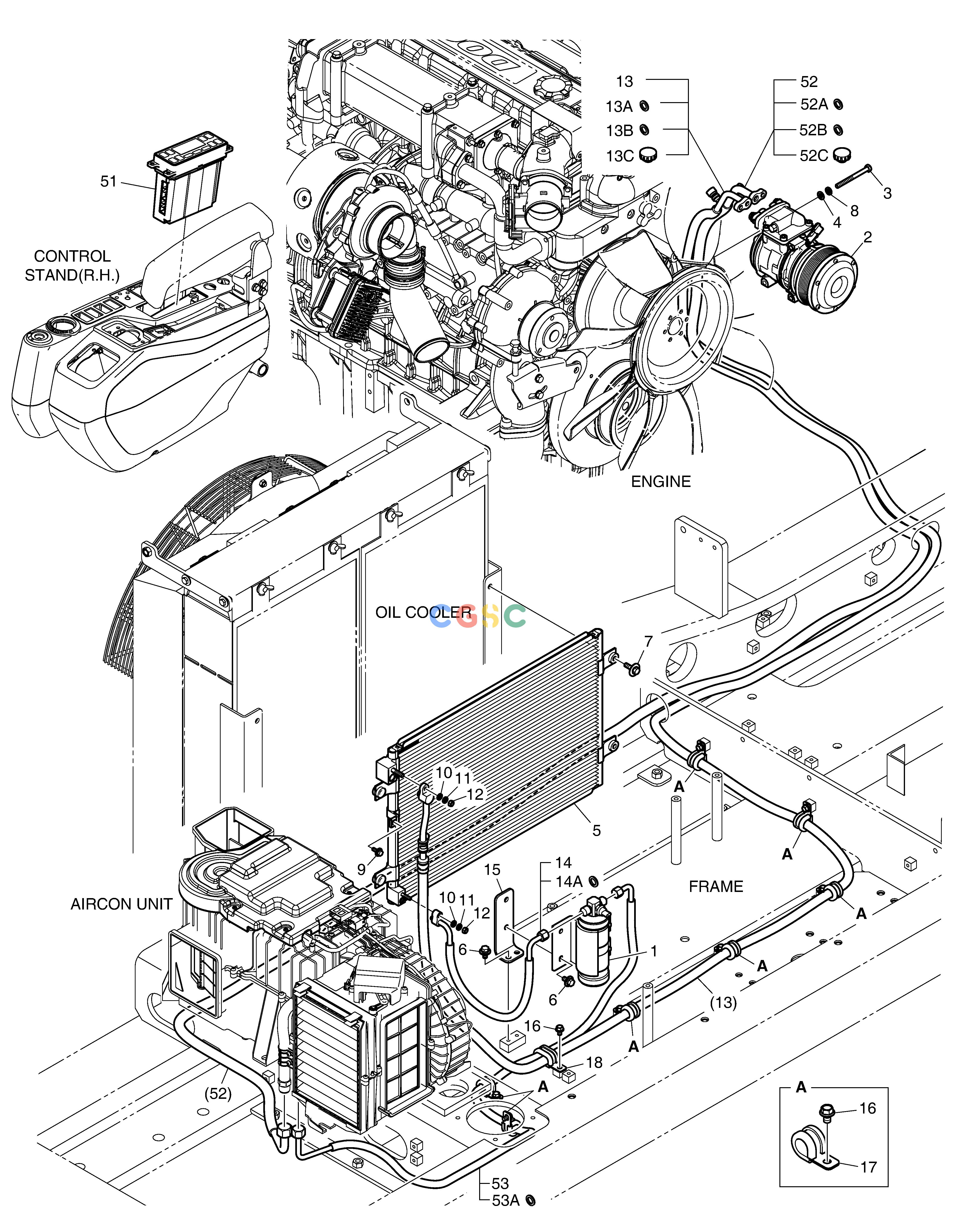

斗山零件查询AIRCONDITIONER(2) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00199
|
[-] |
|
|
| 1. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
300720-00003
|
| 1. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 10. |
S5000313
|
[2] |
WASHER
|
|
| 11. |
S5102303
|
[2] |
. WASHER
|
|
| 12. |
S4012303
|
[2] |
NUT
|
|
| 13. |
420102-00050A
|
[1] |
|
|
| 13A. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 13B. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 13C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 14. |
K1044194A
|
[1] |
|
|
| 14A. |
K1011388
|
[2] |
O-RING
|
|
| 15. |
110406-00930
|
[1] |
|
|
| 16. |
K1001029
|
[8] |
BOLT
|
|
| 17. |
124-00208D3
|
[7] |
CLIP
|
|
| 18. |
124-00209D1
|
[1] |
CLIP
|
|
| 2. |
K1057338
|
[1] |
|
400102-00381
|
| 2. |
400102-00381
|
[1] |
|
|
| 3. |
S0557166
|
[3] |
BOLT
|
|
| 4. |
S5010513
|
[3] |
WASHER
|
|
| 5. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 51. |
543-00107
|
[1] |
CONTROL PANEL,AIR CON
|
|
| 52. |
420102-00049B
|
[1] |
|
|
| 52A. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 52B. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 52C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 53. |
420102-00214
|
[1] |
|
|
| 53A. |
K1011388
|
[2] |
O-RING
|
|
| 6. |
DS0025033
|
[4] |
BOLT
|
|
| 7. |
DS0025047
|
[4] |
|
|
| 8. |
S5102503
|
[3] |
. WASHER
|
|
| 9. |
DS0025056
|
[1] |
BOLT
|
|
