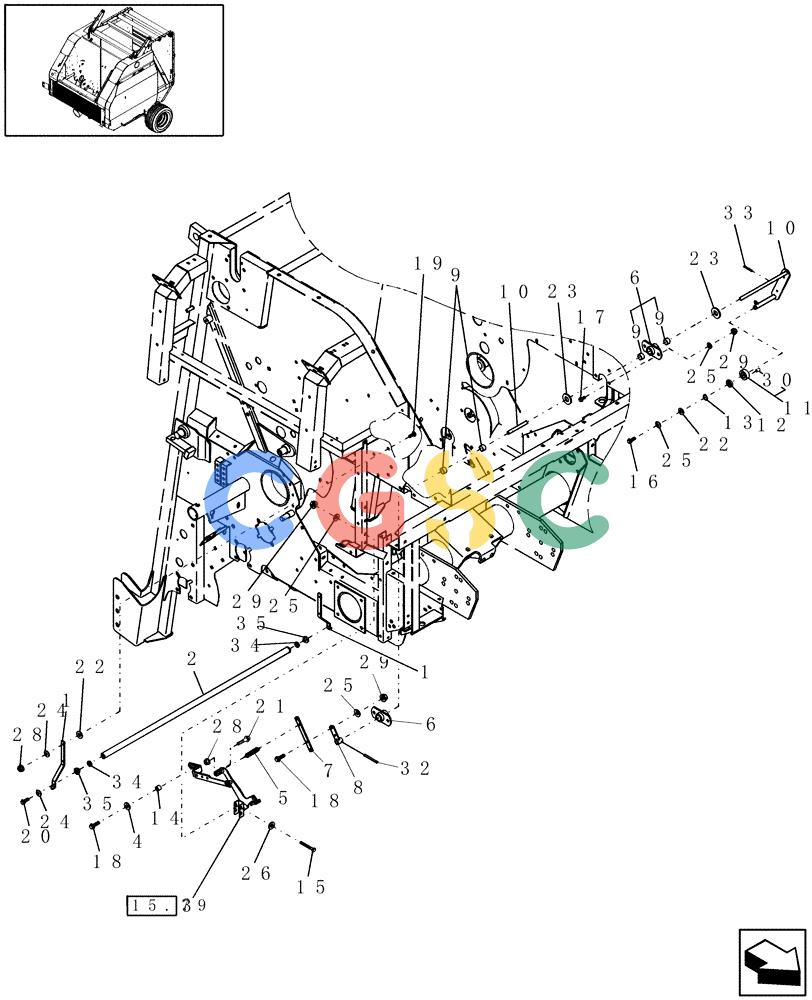

| 1. |
86627446
|
[2] |
BRACKET
|
NH
|
| 2. |
86627399
|
[1] |
ROLL
|
NH
|
| 3. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Net Brake
|
| 4. |
678235
|
[1] |
WASHER
|
NH
Hardened, 1-1/4" OD
|
| 5. |
36267
|
[1] |
SPRING
|
HIT
Superseded by part number: 86640785
|
| 6. |
87025919
|
[2] |
HUB
|
PA
Superseded by part number: 87034973
|
| 7. |
86627686
|
[1] |
PLATE
|
NH
|
| 8. |
86627393
|
[1] |
ARM
|
PLO
|
| 9. |
84024585
|
[4] |
BUSHING,20mm ID x 23mm OD x 15mm Thk
|
PA
|
| 10. |
86613988
|
[1] |
SHAFT
|
NH
|
| 11. |
86609716
|
[1] |
HUB
|
NH
Aluminum, Includes: Ref. 30. Also Required is Ref. 12 & 13. Superseded by part number: 87050433
|
| 11. |
87050433
|
[1] |
HUB
|
NH
Plastic, Ref. 12 & 30 is Included & NSS. Ref. 13 is Not Required.
|
| 12. |
214122
|
[1] |
BALL BEARING,19.04mm ID x 41.27mm OD x 12.7mm W
|
NH
|
| 13. |
100-21162
|
[1] |
SNAP RING,1.625", Int, #162
|
CAS
Superseded by part number: 81821513
|
| 14. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 15. |
814-10070
|
[2] |
BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8
|
CAS
Superseded by part number: 43144
|
| 16. |
844-10020
|
[1] |
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86050286
|
| 17. |
844-10025
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 9804261
|
| 18. |
844-10030
|
[3] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 19. |
308761
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 20. |
614-8025
|
[2] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| 21. |
844-8020
|
[1] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 22. |
495-21044
|
[3] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 23. |
140021
|
[2] |
WASHER,22mm ID x 37mm OD x 3mm Thk
|
NH
|
| 24. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 25. |
140045
|
[9] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 26. |
86511323
|
[2] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 28. |
825-2408
|
[3] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 29. |
825-2410
|
[8] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 30. |
9615611
|
[1] |
MAGNET
|
PA
|
| 32. |
333960
|
[1] |
LOCK PIN,6mm OD x 50mm L, Slotted
|
NH
|
| 33. |
432-820
|
[2] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
Superseded by part number: 87395, 87778232
|
| 34. |
86629503
|
[2] |
BALL BEARING,17mm ID x 35mm OD x 10mm W
|
NH
|
| 35. |
86582989
|
[2] |
SUPPORT
|
NH
|
