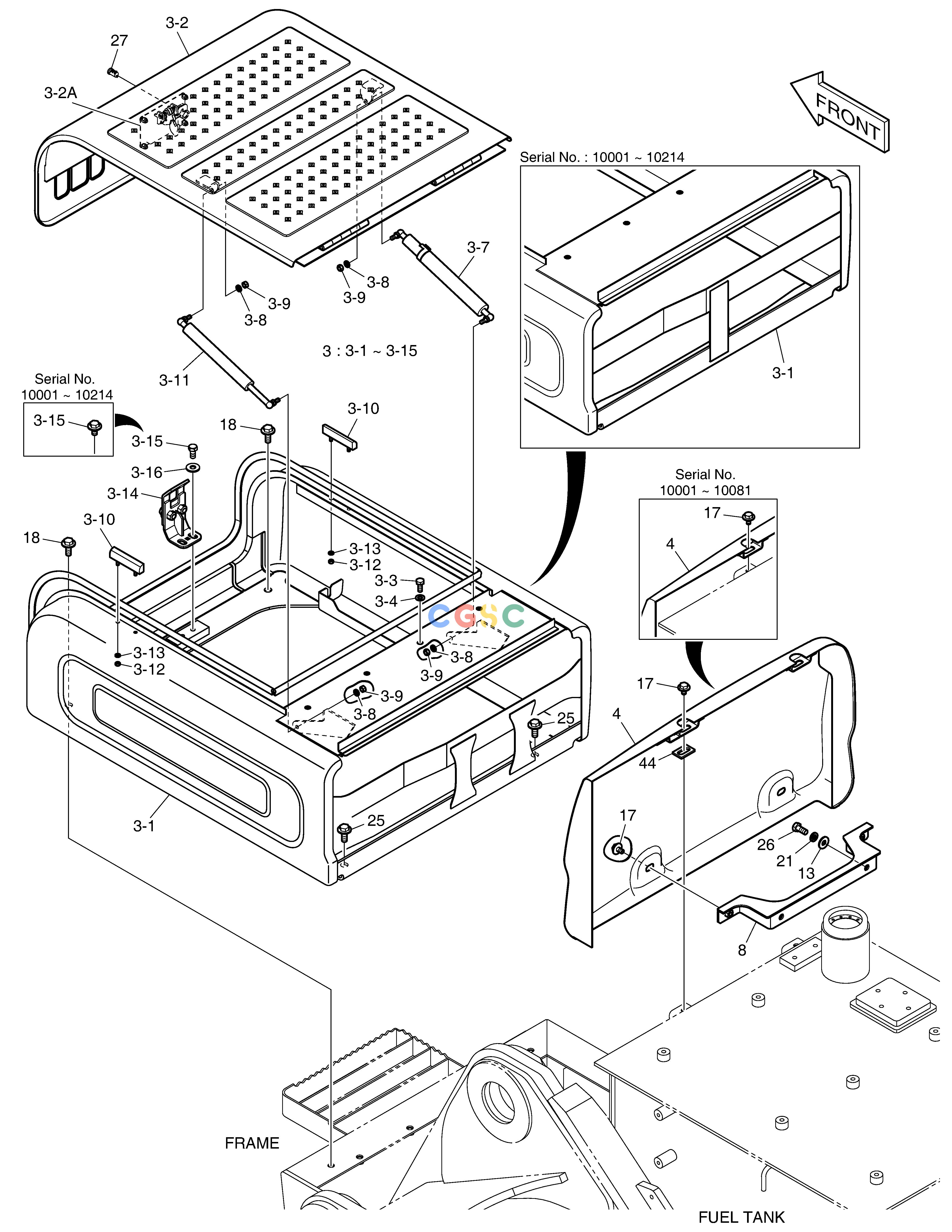

斗山零件查询BATTERY COVER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-17363
|
[-] |
|
|
| 13. |
2114-1154
|
[2] |
WASHER
|
|
| 17. |
DS0025014
|
[4] |
BOLT
|
|
| 18. |
DS0025027
|
[4] |
BOLT
|
|
| 21. |
S5102703
|
[2] |
WASHER
|
|
| 25. |
DS0025015
|
[2] |
BOLT
|
|
| 26. |
S0515166
|
[2] |
BOLT
|
|
| 27. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 3. |
110503-00115C
|
[1] |
|
110503-00115G
|
| 3. |
110503-00115G
|
[1] |
|
110503-00115H
|
| 3. |
110503-00115H
|
[1] |
|
|
| 3. |
110503-00115B
|
[1] |
|
110503-00115C
|
| 3-1. |
110503-00116A
|
[1] |
|
|
| 3-10. |
110956-00362
|
[2] |
|
|
| 3-10. |
K1005305A
|
[2] |
. STOPPER;RUBBER
|
110956-00362
|
| 3-11. |
DS1001060
|
[1] |
SPRING;GAS
|
|
| 3-12. |
S4012333
|
[4] |
NUT
|
|
| 3-13. |
S5102303
|
[4] |
. WASHER
|
|
| 3-14. |
110406-01255
|
[1] |
. BRACKET,CATCH
|
|
| 3-15. |
S0515066
|
[2] |
BOLT
|
|
| 3-15. |
DS0025015
|
[2] |
BOLT
|
|
| 3-16. |
120804-00079
|
[2] |
WASHER
|
|
| 3-2. |
110503-00117
|
[1] |
|
|
| 3-2A. |
125-00071B
|
[1] |
LATCH;FRONT
|
|
| 3-3. |
S0512066
|
[4] |
. BOLT
|
|
| 3-4. |
120804-00076
|
[4] |
WASHER
|
|
| 3-4. |
S5010613
|
[4] |
WASHER
|
|
| 3-7. |
400315-00026
|
[1] |
. CYLINDER,GAS
|
|
| 3-8. |
S5102503
|
[4] |
. WASHER
|
|
| 3-9. |
S4012533
|
[4] |
NUT
|
|
| 4. |
110508-18008
|
[1] |
|
|
| 4. |
621-02681B
|
[1] |
COVER;TANK
|
110508-18008
|
| 44. |
130702-00165
|
[2] |
|
|
| 8. |
K1002613A
|
[1] |
BRACKET
|
|
