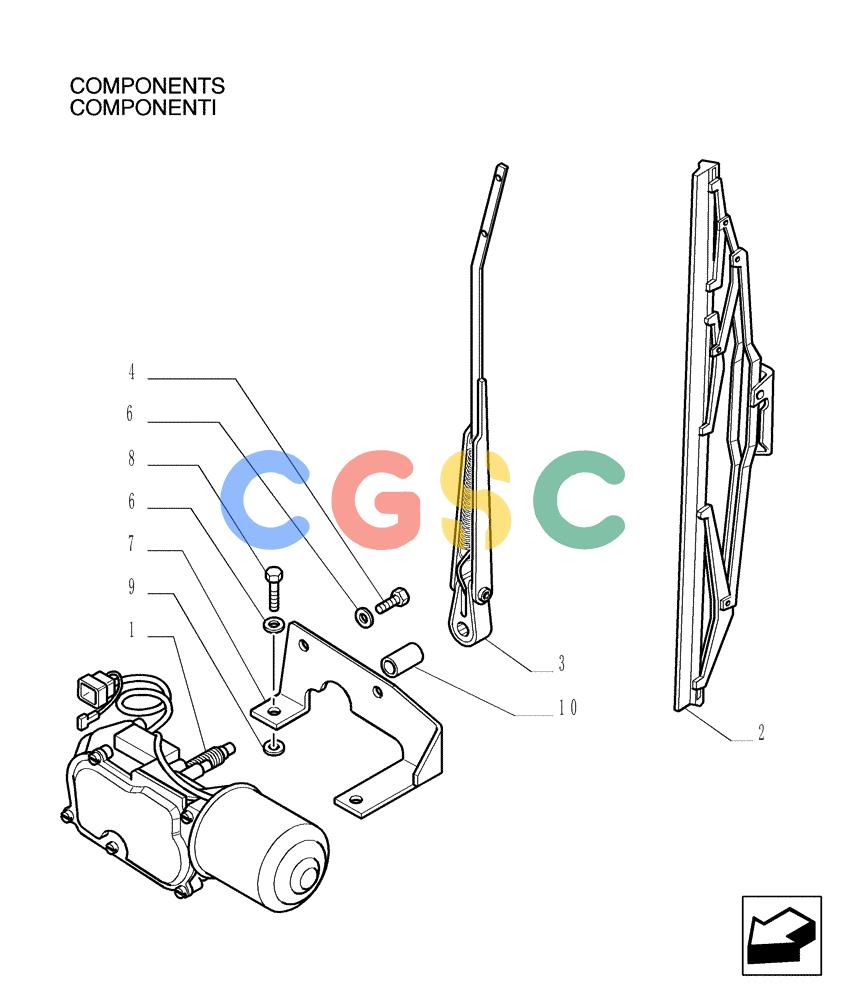

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[13]) - ROPS CAB - REAR WINDSHIELD WIPER - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
493 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067671 | [1] | WIPER MOTOR | LEC24V |
| 2. | 76045506 | [1] | WIPER BLADE | LECL=550 |
| 3. | 76067637 | [1] | WIPER ARM | LECL=425 |
| 4. | 13276211 | [2] | SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd | LEC Superseded by part number: 190003820005 |
| 6. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 7. | 76067232 | [1] | BRACKET | LEC |
| 8. | 16043431 | [2] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 9. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 10. | 76067233 | [1] | SPACER | LEC |
