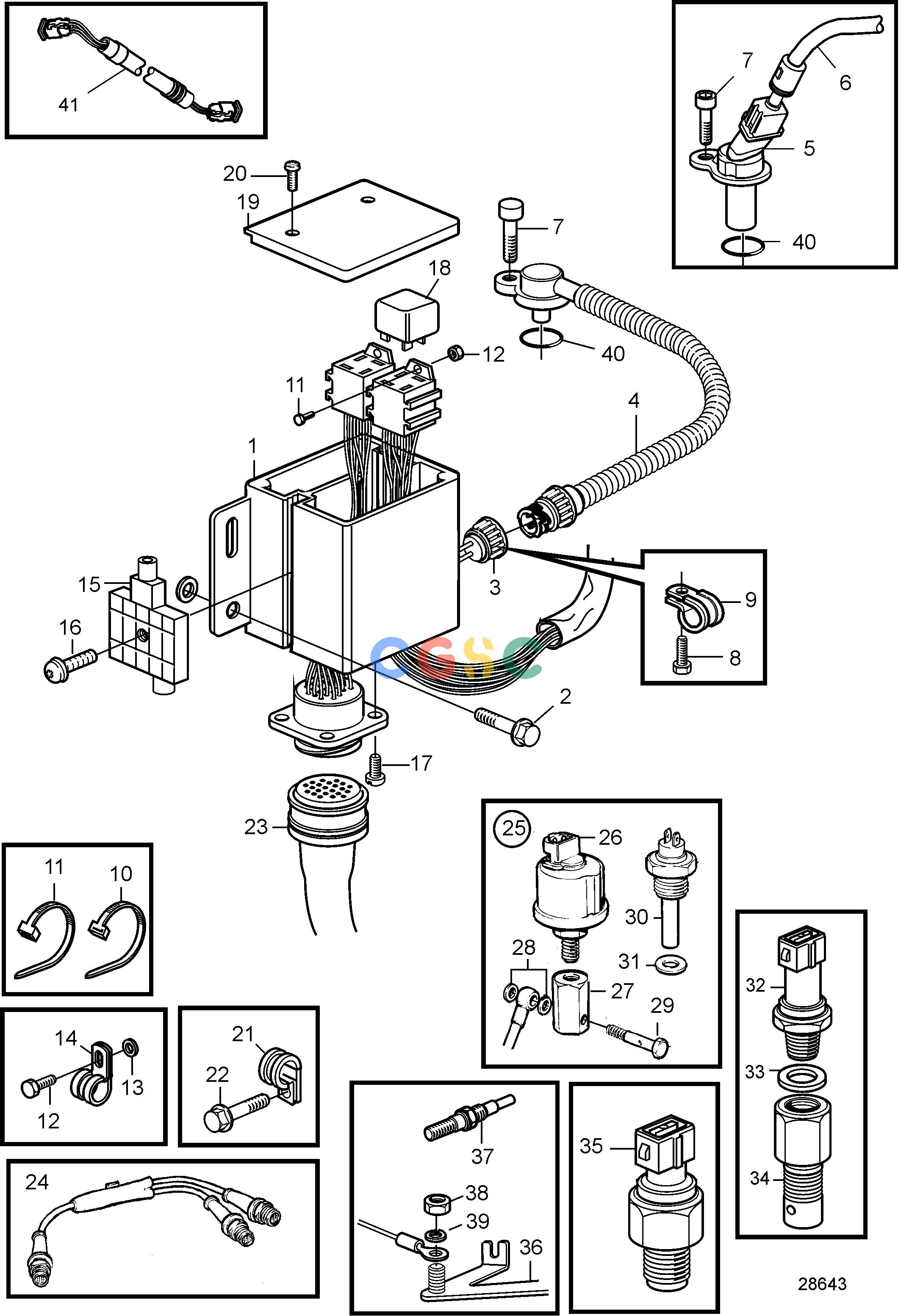

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
413 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861648
|
[1] |
Electrical distribut
|
|
| 2. |
3580269
|
[2] |
Screw
|
|
| 3. |
874442
|
[1] |
Cable harness
|
|
| 4. |
3944124
|
[1] |
Sensor
|
Speed Sensor Ø24mm
|
| 5. |
21426987
|
[1] |
Speed monitor
|
Speed Sensor Ø20mm
|
| 6. |
21644180
|
[1] |
Cable harness
|
|
| 7. |
963684
|
[1] |
Hex. socket screw
|
|
| 8. |
968476
|
[1] |
Flange screw
|
|
| 9. |
952639
|
[1] |
Clamp
|
|
| 10. |
948211
|
[1] |
Cable tie
|
L=170mm
|
| 11. |
948616
|
[1] |
Cable tie
|
L=375mm
|
| 12. |
948663
|
[3] |
Flange screw
|
|
| 13. |
955780
|
[3] |
Hexagon nut
|
|
| 14. |
952627
|
[1] |
Clamp
|
|
| 15. |
873566
|
[1] |
Fuse box
|
|
| 16. |
955142
|
[1] |
Cross recessed screw
|
|
| 17. |
955119
|
[4] |
Cross recessed screw
|
|
| 18. |
873765
|
[2] |
Relay
|
|
| 19. |
861681
|
[1] |
Cap
|
|
| 20. |
955142
|
[2] |
Cross recessed screw
|
|
| 21. |
947191
|
[1] |
Clamp
|
For cabel to glow plug
|
| 22. |
947107
|
[1] |
Flange screw
|
|
| 23. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 23. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 23. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 23. |
873838
|
[1] |
Extension cable
|
L=9.0m
|
| 23. |
873839
|
[1] |
Extension cable
|
L=11,0m
|
| 24. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 25. |
873569
|
[1] |
Sensor kit
|
|
| 26. |
366906
|
[1] |
Pressure sensor
|
|
| 27. |
861388
|
[1] |
Adapter
|
|
| 28. |
947620
|
[3] |
Gasket
|
|
| 29. |
861389
|
[1] |
Hollow screw
|
|
| 30. |
827151
|
[1] |
Temperature sensor
|
|
| 31. |
11998
|
[1] |
Gasket
|
|
| 32. |
3583569
|
[1] |
Temperature sensor
|
|
| 33. |
11992
|
[2] |
Gasket
|
|
| 34. |
3583575
|
[1] |
Hollow screw
|
|
| 35. |
3583570
|
[1] |
Pressure monitor
|
|
| 36. |
3583571
|
[1] |
Current bar
|
|
| 37. |
3583025
|
[4] |
Glow plug
|
|
| 38. |
|
|
|
|
| 39. |
|
|
|
|
| 40. |
974673
|
[1] |
O-ring
|
|
| 41. |
21138239
|
[1] |
Cable harness
|
|
