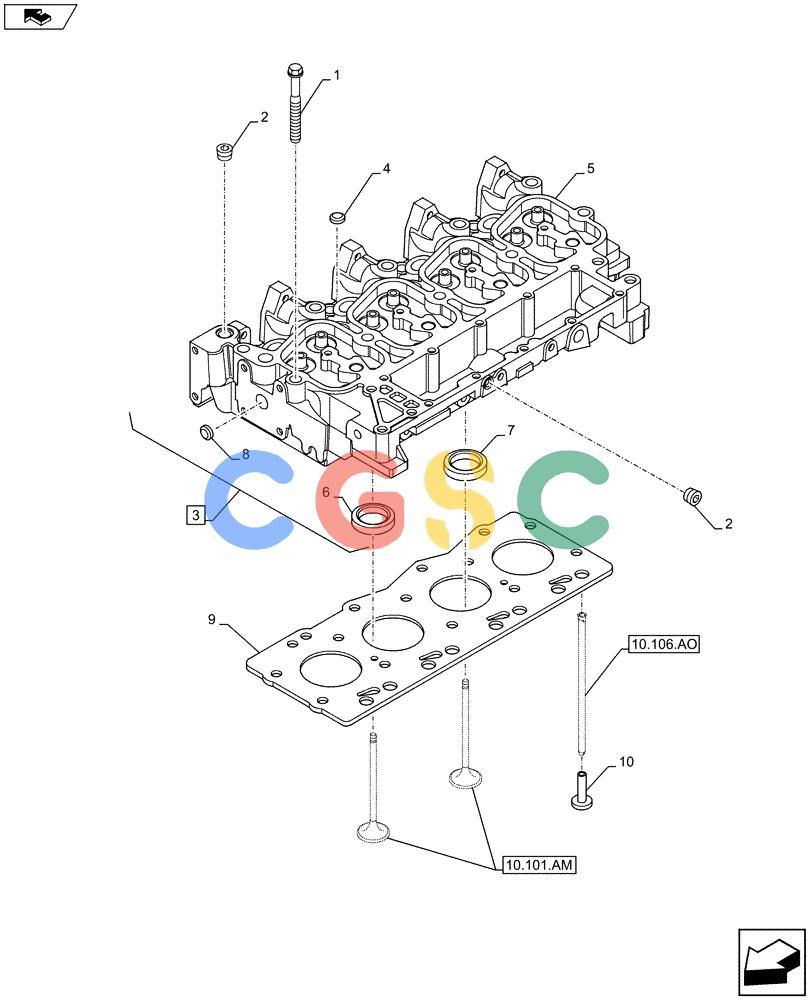

神钢零件查询(F4GE9484D J620) - ENGINE - 5801590401 - YM02P00016P1 (1/07-12/10) (10.101.AA) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
342 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892861 | [4] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TOR |
| 1. | 4892859 | [10] | BOLT,Flng, M12 x 1.75 x 143mm | TOR |
| 2. | 4895078 | [3] | PIPE PLUG,1/2"-14 | TOR |
| 3. | 2856259 | [1] | CYLINDER HEAD | TORASSY, Incl 4 - 8 Superseded by part number: |
| 4. | 4895179 | [3] | EXPANSION PLUG,M20.93 | TOR |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONBody, Incl in 3 |
| 6. | 4897178 | [4] | VALVE SEAT,36mm ID x 43mm OD x 6.7mm L | TOR |
| 7. | 4897179 | [4] | VALVE SEAT,38 mmID x 47mm OD x 6.9mm L | TOR |
| 8. | 4895085 | [1] | EXPANSION PLUG,25.74mm | TOR |
| 9. | 2830919 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TOR |
| 9. | 2830920 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR |
| 10. | J931623 | [8] | TAPPET | CAS Superseded by part number: 4895180 |
