沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FElectrical SystemEVC Electrical System D2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
279 次

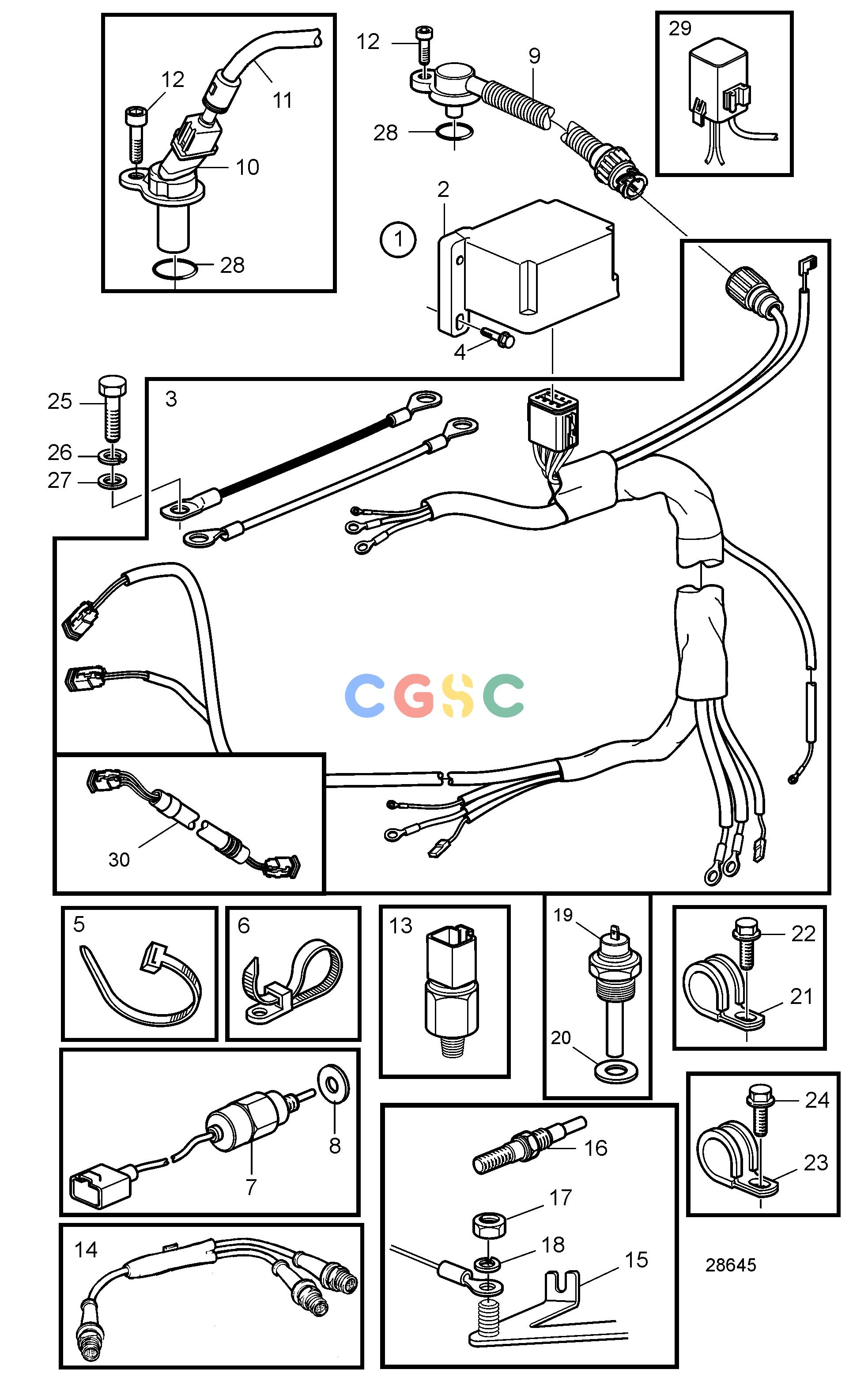

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21120710
|
[1] |
Control unit
|
Replaced by 21261871
|
| 2. |
21261871
|
[1] |
Control unit
|
MDI, Replaced by 21511215
|
| 2. |
21511215
|
[1] |
Electronic unit
|
Replaced by 21558939
|
| 2. |
21558939
|
[1] |
Electronic unit
|
Replaced by 22594274
|
| 2. |
22594274
|
[1] |
Electronic unit
|
|
| 3. |
3843674
|
[1] |
Cable harness
|
D2-55D, D2-55E, D2-75B, D2-75C
|
| 3. |
21273764
|
[1] |
Cable harness
|
D2-55F, D2-75F
|
| 4. |
948356
|
[2] |
Flange screw
|
|
| 5. |
948211
|
[8] |
Cable tie
|
|
| 6. |
948616
|
[1] |
Cable tie
|
|
| 7. |
3584127
|
[1] |
Stop solenoid
|
|
| 8. |
3580092
|
[1] |
Sealing ring
|
|
| 9. |
3944124
|
[1] |
Sensor
|
Speed Sensor Ø24mm
|
| 10. |
21426987
|
[1] |
Speed monitor
|
Speed Sensor Ø20mm
|
| 11. |
21644180
|
[1] |
Cable harness
|
|
| 12. |
942001
|
[1] |
Hex. socket screw
|
|
| 13. |
21250645
|
[1] |
Pressure switch
|
For oil
|
| 14. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 15. |
3583571
|
[1] |
Current bar
|
|
| 16. |
3583025
|
[1] |
Glow plug
|
|
| 17. |
955779
|
[1] |
Hexagon nut
|
|
| 18. |
3809677
|
[1] |
Washer
|
|
| 19. |
827151
|
[1] |
Temperature sensor
|
|
| 20. |
11998
|
[1] |
Gasket
|
|
| 21. |
947191
|
[1] |
Clamp
|
|
| 22. |
947107
|
[1] |
Flange screw
|
|
| 23. |
945081
|
[1] |
Clamp
|
|
| 24. |
947107
|
[1] |
Flange screw
|
|
| 25. |
946502
|
[1] |
Flange screw
|
Ground (hull)
|
| 26. |
955898
|
[1] |
Washer
|
0,2mm
|
| 27. |
940280
|
[1] |
Spring washer
|
1.2mm
|
| 28. |
974673
|
[1] |
O-ring
|
|
| 29. |
3594745
|
[1] |
Cable harness
|
|
| 30. |
21138239
|
[1] |
Cable harness
|
|
