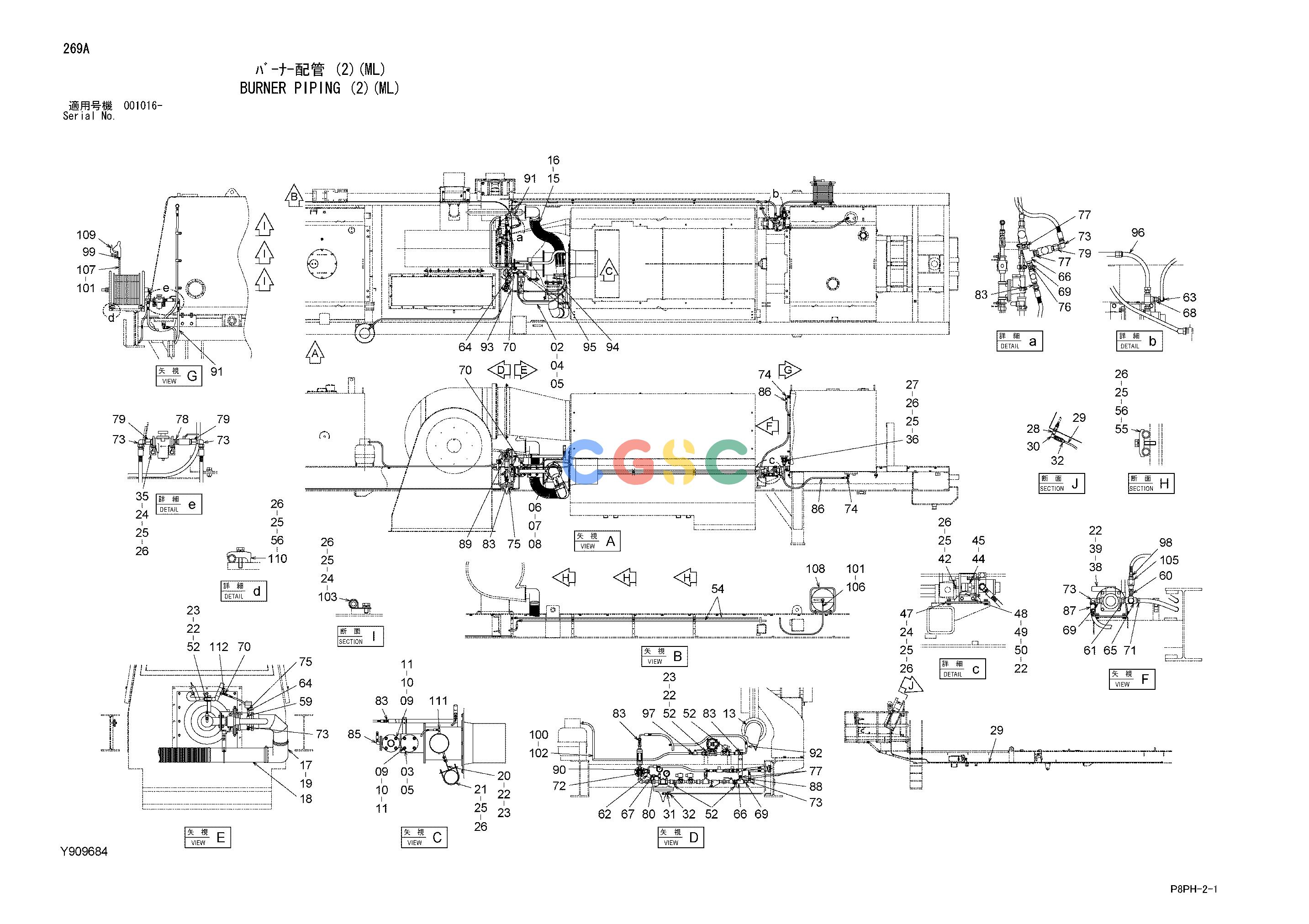

日立零件查询（AR2000）BURNER PIPING (2)(ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y700948 | [1] | TUBE | |
| 03. | Y409688 | [1] | PLUG | |
| 04. | Y301451 | [1] | WASHER | |
| 05. | Y409681 | [2] | WASHER | |
| 06. | J901245 | [8] | BOLT | |
| 07. | A590912 | [8] | WASHER;SPRING | |
| 08. | J950012 | [8] | NUT | |
| 09. | J931845 | [8] | BOLT | |
| 10. | J257218 | [8] | WASHER;SPRING | |
| 11. | J950018 | [8] | NUT | |
| 13. | Y971204 | [1] | PIPE;FLANGE | |
| 15. | Y410685 | [1] | HOSE;AIR | |
| 16. | Y412414 | [2] | BAND;HOSE | |
| 17. | 4221469 | [1] | HOSE;RUBBER | |
| 18. | Y410180 | [1] | TUBE | |
| 19. | 4420354 | [2] | CLAMP;HOSE | |
| 20. | Y802019 | [1] | HANGER | |
| 21. | Y409680 | [1] | BOLT;U | |
| 22. | A590908 | [22] | WASHER;SPRING | |
| 23. | J950008 | [14] | NUT | |
| 24. | J901025 | [9] | BOLT | |
| 25. | A590910 | [25] | WASHER;SPRING | |
| 26. | A590110 | [25] | WASHER;PLANE | |
| 27. | J950010 | [4] | NUT | |
| 28. | Y410715 | [1] | UNION | |
| 29. | Y411478 | [1] | TUBE | |
| 30. | Y411479 | [1] | ELBOW;S | |
| 31. | Y411480 | [1] | ADAPTER;S | |
| 32. | Y411481 | [2] | CAP | |
| 35. | Y411472 | [2] | BRACKET | |
| 36. | Y411030 | [2] | BOLT;U | |
| 38. | Y411212 | [1] | PUMP;FUEL | |
| 39. | J900825 | [4] | BOLT | |
| 42. | J901030 | [2] | BOLT | |
| 44. | Y411471 | [1] | COUPLING | |
| 45. | M450616 | [1] | SCREW;SET | |
| 47. | Y802421 | [1] | BRACKET | |
| 48. | Y411470 | [1] | COVER | |
| 49. | J900812 | [4] | BOLT | |
| 50. | A590108 | [4] | WASHER;PLANE | |
| 52. | Y409679 | [6] | BOLT;U | |
| 54. | Y971404 | [2] | PIPE | |
| 55. | 4053593 | [5] | CLAMP;PIPE | |
| 56. | J901050 | [9] | BOLT | |
| 59. | 94-1701 | [1] | ADAPTER;S | |
| 60. | 94-1702 | [1] | ADAPTER;S | |
| 61. | 94-1903 | [1] | ADAPTER;S | |
| 62. | 94-0616 | [1] | ELBOW;S | |
| 63. | 94-0631 | [1] | ELBOW;S | |
| 64. | 94-0660 | [2] | TEE;S | |
| 65. | 94-0662 | [1] | TEE;S | |
| 66. | 94-0663 | [2] | TEE;S | |
| 67. | 94-1601 | [1] | REDUCER | |
| 68. | 94-1602 | [1] | REDUCER | |
| 69. | 94-1603 | [3] | REDUCER | |
| 70. | 4154651 | [3] | ADAPTER;S | |
| 71. | 4221287 | [1] | ADAPTER;S | |
| 72. | 4182732 | [1] | ADAPTER;S | |
| 73. | 4154658 | [6] | ELBOW;S | |
| 74. | 4353073 | [2] | ELBOW;S | |
| 74A. | 4506424 | [1] | O-RING | |
| 75. | 4351271 | [2] | ADAPTER;S | |
| 76. | 4189320 | [1] | ADAPTER;S | |
| 77. | 4191645 | [4] | ADAPTER;S | |
| 78. | Y411987 | [1] | ADAPTER;S | |
| 79. | Y411988 | [3] | REDUCER;S | |
| 80. | 4140673 | [1] | REDUCER;S | |
| 83. | Y411985 | [5] | ADAPTER;S | |
| 85. | Y410343 | [1] | ELBOW;S | |
| 86. | Y413424 | [2] | HOSE | |
| 87. | Y413481 | [1] | HOSE | |
| 88. | Y413482 | [1] | HOSE | |
| 89. | Y413483 | [1] | HOSE | |
| 90. | Y413422 | [1] | HOSE | |
| 91. | Y413484 | [1] | HOSE | |
| 92. | Y413485 | [1] | HOSE | |
| 93. | Y413486 | [1] | HOSE | |
| 94. | Y413426 | [1] | HOSE | |
| 95. | Y413487 | [2] | HOSE | |
| 96. | Y413272 | [1] | HOSE | |
| 97. | Y411990 | [1] | FITTING;HOSE | |
| 98. | Y402305 | [1] | FITTING;HOSE | |
| 99. | Y402910 | [1] | FITTING;HOSE | |
| 100. | Y412007 | [2] | BAND;HOSE | |
| 101. | 4514700 | [2] | CLIP;HOSE | |
| 102. | Y412439 | [1] | HOSE;RUBBER | |
| 103. | 4190277 | [3] | CLIP | |
| 105. | Y410681 | [1] | COUPLER | |
| 106. | Y410690 | [1] | HOSE | |
| 107. | Y410676 | [1] | HOSE | |
| 108. | Y410682 | [1] | REEL;HOSE | |
| 109. | Y410683 | [1] | GUN | |
| 110. | 4190125 | [4] | CLAMP;PIPE | |
| 111. | 4154656 | [1] | ELBOW;S | |
| 112. | Y412662 | [1] | REDUCER;S | |
