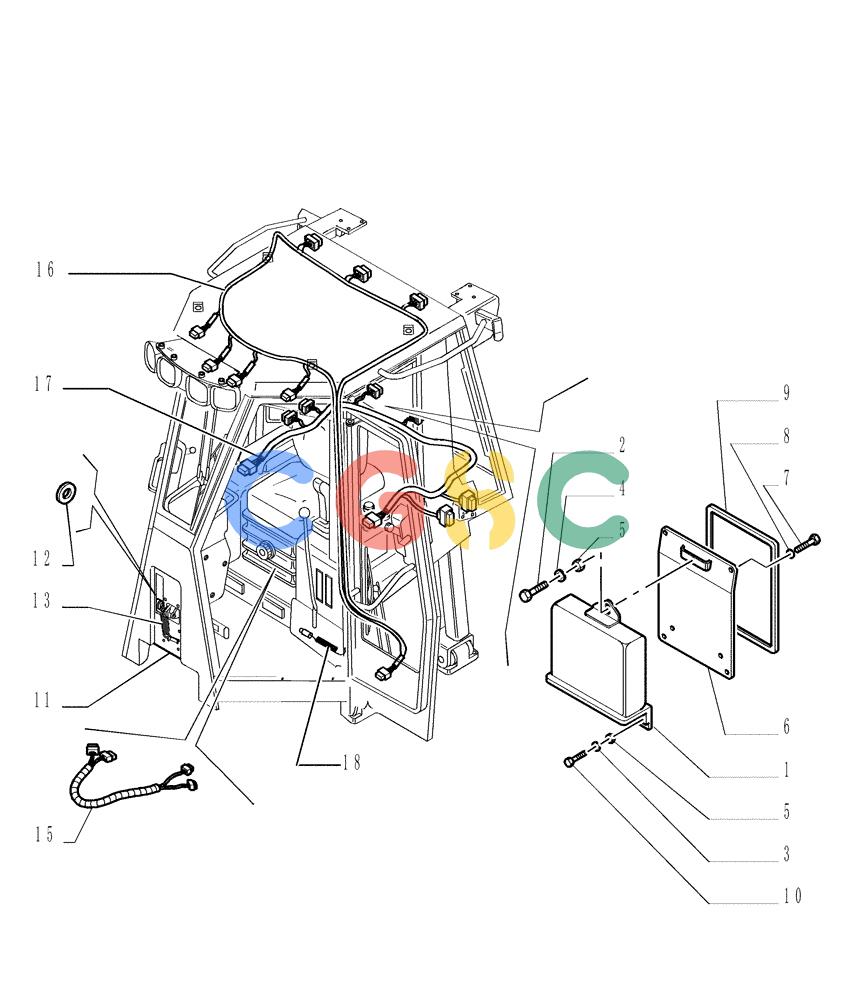

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[19]) - ROPS CAB - ELECTRIC COMPONENTS - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
540 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092397 | [1] | CONTROLLER | LEC |
| 1. | 76092397R | [1] | REMAN-ELECTRONIC CONTROL UNIT | RACDC150.B CRAWLER DOZER TIER 2 (3/03-) |
| 1. | 76092397C | [1] | CORE-ELECTRONIC CONTROL UNIT | RACReturn Number |
| 3. | 14496431 | [6] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 4. | 10571574 | [3] | LOCK WASHER | LEC6,1X1,6 Superseded by part number: 17798174 |
| 5. | 15896221 | [3] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 6. | 76067481 | [1] | SUPPORT | LEC |
| 7. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 8. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 9. | 76067456 | [1] | SEAL | LEC |
| 10. | 14303931 | [2] | HEX SOC SCREW,M6 x 70mm, Cl 10.9 | TOR Superseded by part number: 14303930 |
| 11. | 76067318 | [1] | PLATE | LEC |
| 12. | 11069476 | [2] | SNAP RING,M52, Ext | LEC |
| 13. | 9434187 | [3] | SPRING | LEC |
| 15. | 76301008 | [1] | ELECTRIC CABLE | LEC |
| 16. | 76068161 | [1] | ELECTRIC CABLE | LEC- RIGHT Superseded by part number: 76067781 |
| 17. | 76301102 | [1] | WIRE HARNESS | LEC- CAB |
| 18. | 76301126 | [1] | ELECTRIC CABLE | LEC Superseded by part number: 326845A1, 76095140, 76095144, 76095139 |
| 2. | 14305221 | [1] | HEX SOC SCREW,M6 x 16mm, Cl 12.9 | IMO |
