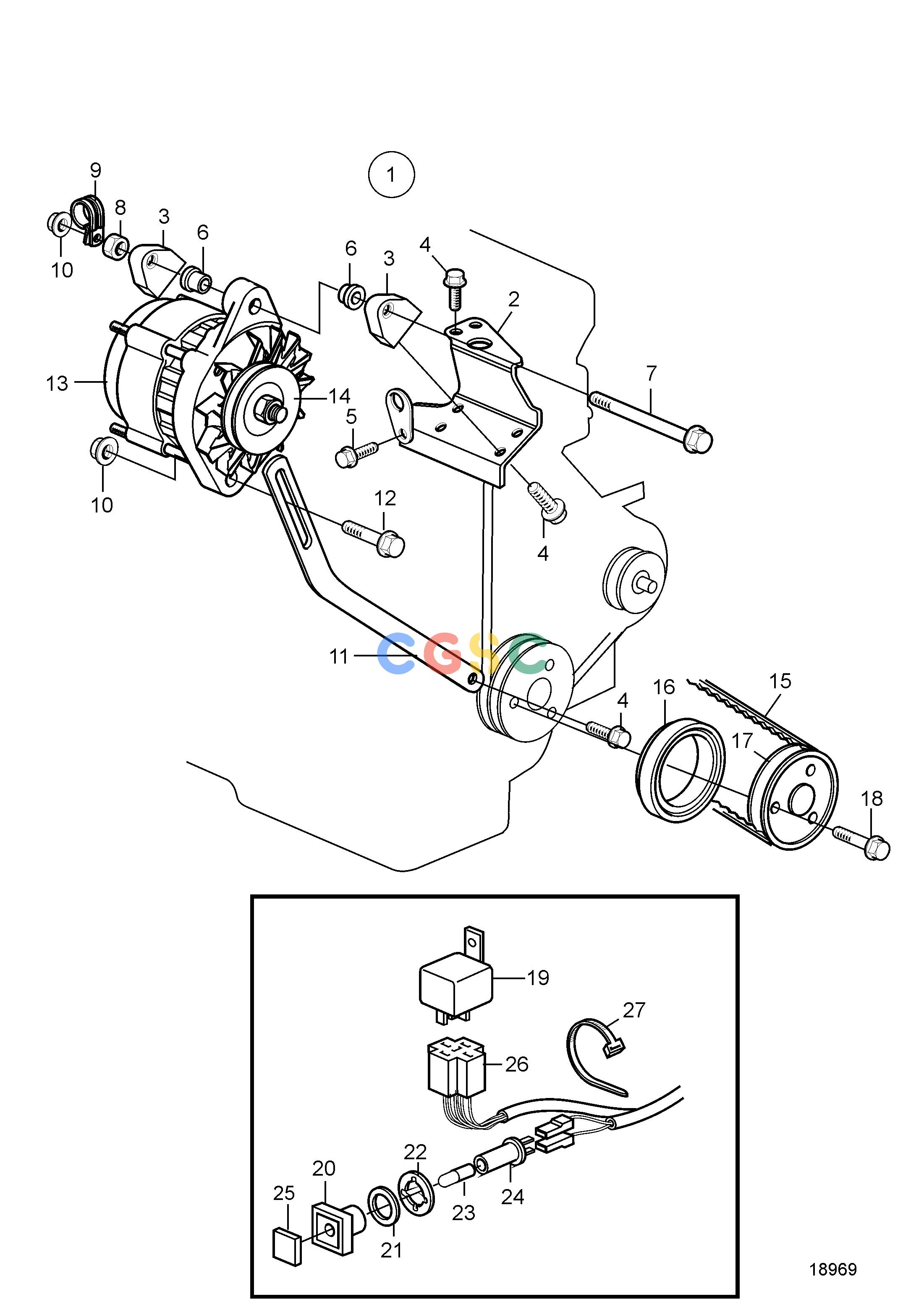

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FElectrical SystemExtra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583573
|
[1] |
Bracket
|
|
| 2. |
3583062
|
[1] |
Bracket
|
|
| 3. |
3580749
|
[2] |
Anchorage
|
|
| 4. |
946440
|
[7] |
Flange screw
|
|
| 5. |
946173
|
[1] |
Flange screw
|
|
| 6. |
859274
|
[2] |
Washer
|
|
| 7. |
968553
|
[1] |
Flange screw
|
|
| 8. |
955782
|
[1] |
Hexagon nut
|
|
| 9. |
949746
|
[1] |
Clamp
|
|
| 10. |
945408
|
[2] |
Flange nut
|
|
| 11. |
845021
|
[1] |
Tensioner
|
|
| 12. |
947760
|
[1] |
Flange screw
|
|
| 13. |
872235
|
[1] |
Alternator
|
12V, 60A
|
| 13. |
3803260
|
[1] |
Alternator, exch
|
12V, 60A
|
| 13. |
872927
|
[1] |
Alternator
|
24V, 40A
|
| 13. |
3803619
|
[1] |
Alternator, exch
|
24V, 40A
|
| 14. |
841813
|
[1] |
Pulley
|
|
| 15. |
978710
|
[1] |
V-belt
|
|
| 16. |
3583572
|
[1] |
Spacer
|
|
| 17. |
3581036
|
[1] |
Pulley
|
|
| 18. |
965227
|
[3] |
Flange screw
|
|
| 19. |
1324492
|
[1] |
Relay
|
|
| 20. |
838455
|
[1] |
Retainer
|
|
| 21. |
829714
|
[1] |
Sealing ring
|
|
| 22. |
967583
|
[1] |
Retainer
|
|
| 23. |
19923
|
[1] |
Bulb
|
|
| 24. |
808175
|
[1] |
Bulb socket
|
|
| 25. |
838457
|
[1] |
Symbol strip
|
|
| 26. |
838542
|
[1] |
Cable block
|
|
| 27. |
948211
|
[10] |
Cable tie
|
|
