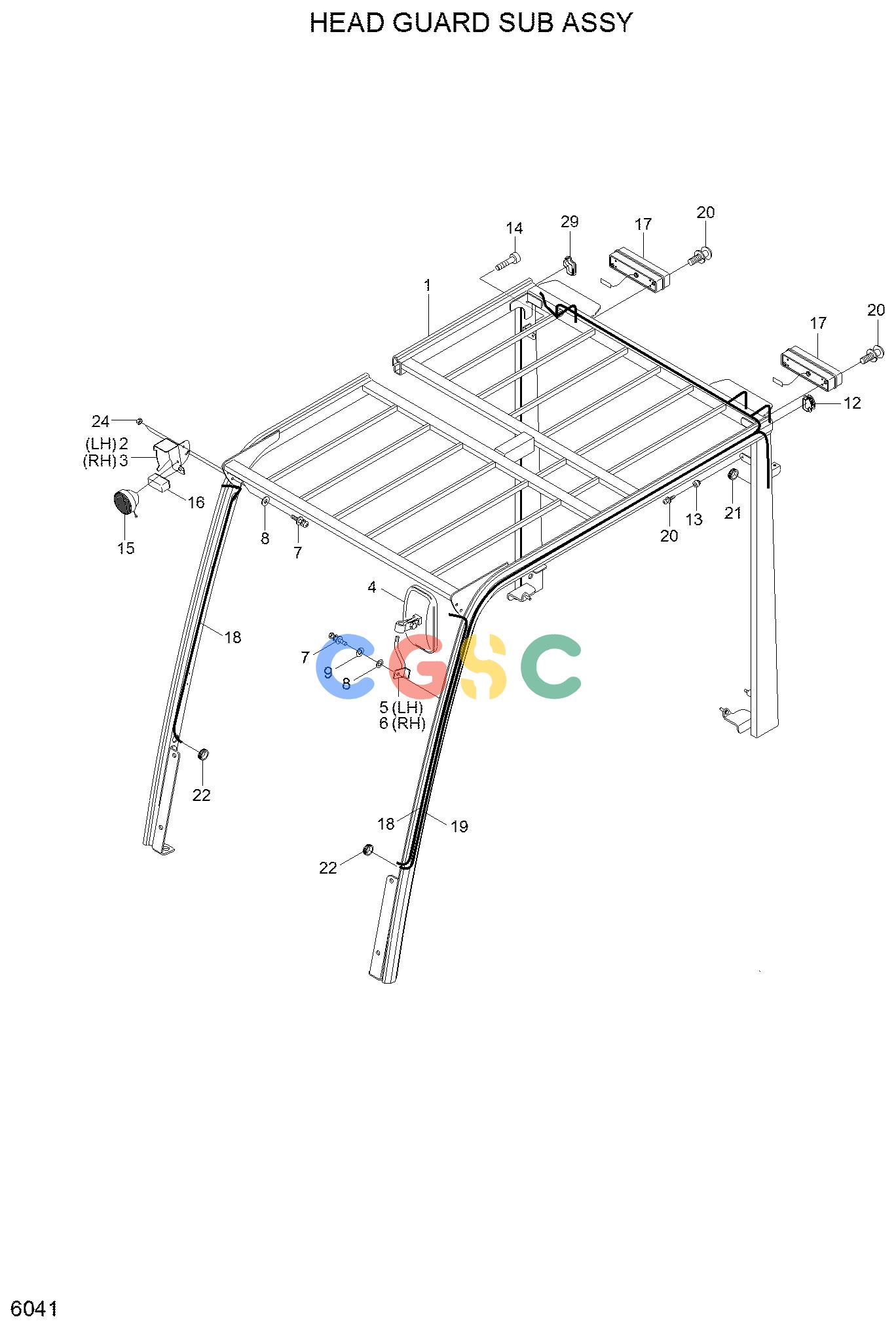

现代零件查询22/25/30BHA-7 HEAD GUARD SUB ASSYEPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
71FH-37001
|
[1] |
HEAD GUARD SUB ASSY
|
|
| . |
71FH-37002
|
[1] |
HEAD GUARD SUB ASSY
|
|
| . |
71FH-37001
|
[1] |
HEAD GUARD SUB ASSY
|
|
| . |
71FH-37002
|
[1] |
HEAD GUARD SUB ASSY
|
|
| . |
71FH-38001
|
[1] |
HEAD GUARD SUB ASSY
|
|
| . |
71FH-38002
|
[1] |
HEAD GUARD SUB ASSY
|
|
| 1. |
71FH-37011
|
[1] |
HEAD GUARD WA
|
|
| 2. |
71FH-38011
|
[1] |
HEAD GUARD WA
|
|
| 3. |
71HE-30202
|
[1] |
LH BRACKET-LAMP
|
|
| 3. |
71HE-30212
|
[1] |
RH BRACKET-LAMP
|
|
| 4. |
71FG-30220
|
[2] |
MIRROR-BACK
|
|
| 4. |
71HA-59900
|
[2] |
MIRROR-BACK
|
|
| 4. |
71FG-30220
|
[2] |
MIRROR-BACK
|
|
| 4. |
71HA-59900
|
[2] |
MIRROR-BACK
|
|
| 4. |
71FG-30220
|
[2] |
MIRROR-BACK
|
|
| 4. |
71HA-59900
|
[2] |
MIRROR-BACK
|
|
| 5. |
71FG-30360
|
[1] |
BRACKET-MIRROR,LH
|
|
| 6. |
71FG-30370
|
[1] |
BRACKET-MIRROR,RH
|
|
| 7. |
S132-082026
|
[6] |
SCREW-W/WASHER
|
|
| 8. |
S403-081006
|
[4] |
WASHER-PLAIN
|
|
| 9. |
71HD-31030
|
[2] |
CAP-RUBBER
|
|
| 10. |
71HD-31040
|
[2] |
CAP-RUBBER
|
|
| 11. |
S275-080006
|
[4] |
NUT-SELF LOCKING
|
|
| 12. |
S681-290400
|
[2] |
GROMMET
|
|
| 13. |
2636050800
|
[2] |
RUBBER CUSHION
|
|
| 14. |
S179-080206
|
[2] |
SCREW-SOCKET RD HD
|
|
| 15. |
F12840010
|
[3] |
LAMP SUB ASSY-WORK
|
|
| 15-1. |
S866-120550
|
[1] |
BULB
|
|
| 16. |
21FH-77030
|
[2] |
LAMP-TURN SIGNAL
|
|
| 16-1. |
S861-072100
|
[1] |
BULB-12V/21W
|
|
| 17. |
21FH-77020
|
[2] |
LAMP-COMBINATION
|
|
| 17-1. |
S863-072105
|
[1] |
BULB(12V 21/5W)
|
|
| 17-2. |
S861-072100
|
[1] |
BULB-12V/21W
|
|
| 17-3. |
S861-021000
|
[1] |
BULB(12V 10W)
|
|
| 18. |
21HD-75060
|
[2] |
HARNESS-FRONT
|
|
| 19. |
21HD-75080
|
[1] |
HARNESS-REAR
|
|
| 20. |
S131-051546
|
[6] |
SCREW-W/WASHER
|
|
| 21. |
S681-190400
|
[2] |
GROMMET
|
|
