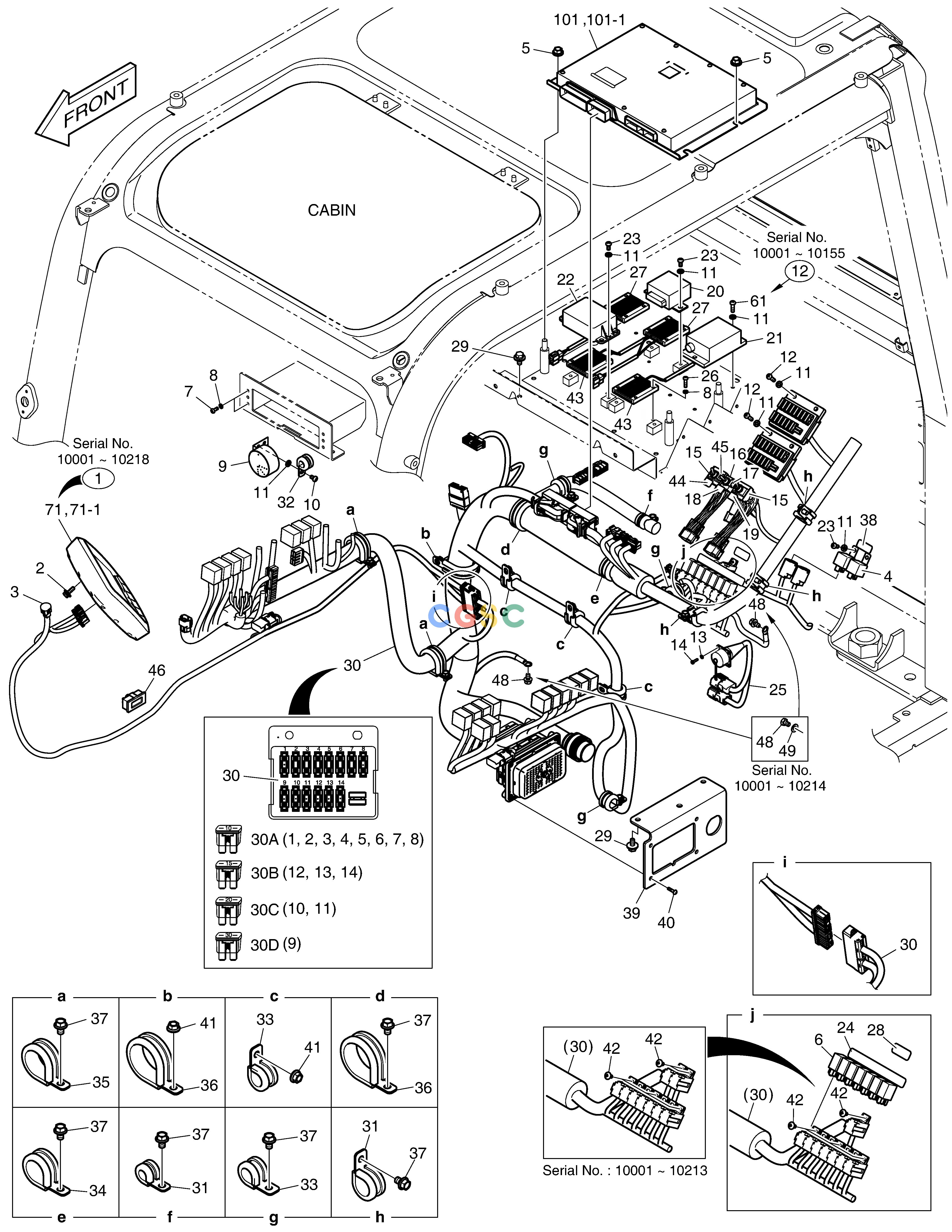

斗山零件查询ELECTRIC PARTS - CABIN DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02457C
|
[-] |
|
|
| -. |
300619-02457G
|
[-] |
|
|
| -. |
300619-02457
|
[-] |
|
|
| -. |
300619-02457A
|
[-] |
|
|
| -. |
300619-02457B
|
[-] |
|
|
| -. |
300619-02457E
|
[-] |
|
|
| -. |
300619-02457H
|
[-] |
|
|
| 1. |
300426-00089
|
[1] |
|
300426-00089A
|
| 1. |
300426-00089A
|
[1] |
|
|
| 10. |
S3450943
|
[2] |
SCREW
|
|
| 101. |
300611-00522A
|
[1] |
|
|
| 101. |
300611-00522B
|
[1] |
|
|
| 101. |
300611-00522C
|
[1] |
|
|
| 101. |
300611-00522E
|
[1] |
|
300611-00522G
|
| 101. |
300611-00522G
|
[1] |
|
|
| 101-1. |
970306-00086
|
[1] |
|
970306-00184
|
| 101-1. |
970306-00184
|
[1] |
|
|
| 11. |
S5102303
|
[14] |
. WASHER
|
|
| 12. |
S3450983
|
[6] |
SCREW
|
|
| 12. |
S3450983
|
[4] |
SCREW
|
|
| 13. |
S5100003
|
[4] |
WASHER
|
|
| 14. |
S3450343
|
[4] |
SCREW
|
|
| 15. |
301421-00004
|
[2] |
|
|
| 16. |
K1001702A
|
[1] |
SWITCH;TOGGLE
|
|
| 17. |
K1004427
|
[1] |
PLATE,NAME
|
|
| 18. |
K1004425
|
[1] |
PLATE;NAME
|
|
| 19. |
K1004426
|
[1] |
PLATE,NAME
|
|
| 2. |
DS0025056
|
[4] |
BOLT
|
|
| 20. |
300611-00271
|
[1] |
CONTROLLER;WIPER MOTOR
|
|
| 20. |
300611-00271A
|
[1] |
CONTROLLER,WIPER
|
|
| 21. |
300612-00001A
|
[1] |
|
300612-00001B
|
| 21. |
300612-00001B
|
[1] |
|
|
| 22. |
2543-9015
|
[1] |
CONTROLLER;STARTER
|
|
| 23. |
S3450953
|
[6] |
SCREW
|
|
| 24. |
K1052850D35
|
[1] |
|
|
| 25. |
310207-00708
|
[1] |
HARNESS
|
|
| 26. |
S3450863
|
[8] |
SCREW
|
|
| 27. |
300645-00017
|
[2] |
|
|
| 28. |
K1052850D21
|
[1] |
|
|
| 28. |
950209-06306
|
[1] |
|
|
| 29. |
DS0025033
|
[7] |
BOLT
|
|
| 3. |
547-00023
|
[1] |
SENSOR
|
|
| 30. |
310207-02939E
|
[1] |
|
|
| 30. |
310207-02939
|
[1] |
|
|
| 30. |
310207-02939A
|
[1] |
|
|
| 30. |
310207-02939B
|
[1] |
|
|
| 30. |
310207-02939C
|
[1] |
|
310207-02939E
|
| 30A. |
2527-1016
|
[16] |
FUSE,BLADE 10A
|
|
| 30B. |
2527-1017
|
[6] |
FUSE,BLADE 15A
|
|
| 30C. |
2527-1018
|
[4] |
FUSE,BLADE 20A
|
|
| 30D. |
2527-1025
|
[2] |
FUSE,BLADE 30A
|
|
| 31. |
124-00208D4
|
[3] |
CLIP
|
|
| 32. |
124-00208D2
|
[2] |
CLAMP
|
|
| 33. |
124-00208D3
|
[6] |
CLIP
|
|
| 34. |
124-00208D5
|
[1] |
CLIP
|
|
| 35. |
124-00208D6
|
[2] |
CLIP
|
|
| 36. |
124-00208D11
|
[2] |
CLIP
|
|
| 37. |
K1001029
|
[11] |
BOLT
|
|
| 38. |
190-01192D26
|
[1] |
|
|
| 39. |
110433-00005
|
[1] |
|
|
| 4. |
301202-00042
|
[2] |
RELAY
|
|
| 40. |
S3641563
|
[4] |
SCREW
|
|
| 41. |
2121-1305
|
[4] |
NUT
|
|
| 42. |
2120-2166D53
|
[5] |
. SCREW
|
|
| 42. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 43. |
300645-00018
|
[2] |
|
|
| 44. |
950209-01576
|
[1] |
|
|
| 45. |
950209-01577
|
[1] |
|
|
| 46. |
2528-9040
|
[1] |
METER;HOUR
|
800224-00011
|
| 46. |
800224-00011
|
[1] |
METER,HOUR
|
|
| 48. |
120106-00702
|
[2] |
BOLT
|
|
| 48. |
S0508453
|
[2] |
BOLT
|
|
| 49. |
S5010513
|
[2] |
WASHER
|
|
| 5. |
D913109
|
[4] |
|
|
| 6. |
K1053326
|
[7] |
RELAY
|
|
| 61. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 7. |
S3450833
|
[4] |
BOLT
|
|
| 71. |
300426-00089B
|
[1] |
|
|
| 71-1. |
970304-00007
|
[1] |
|
|
| 8. |
S5100203
|
[12] |
WASHER
|
|
| 9. |
2516-1116
|
[1] |
BUZZER
|
|
