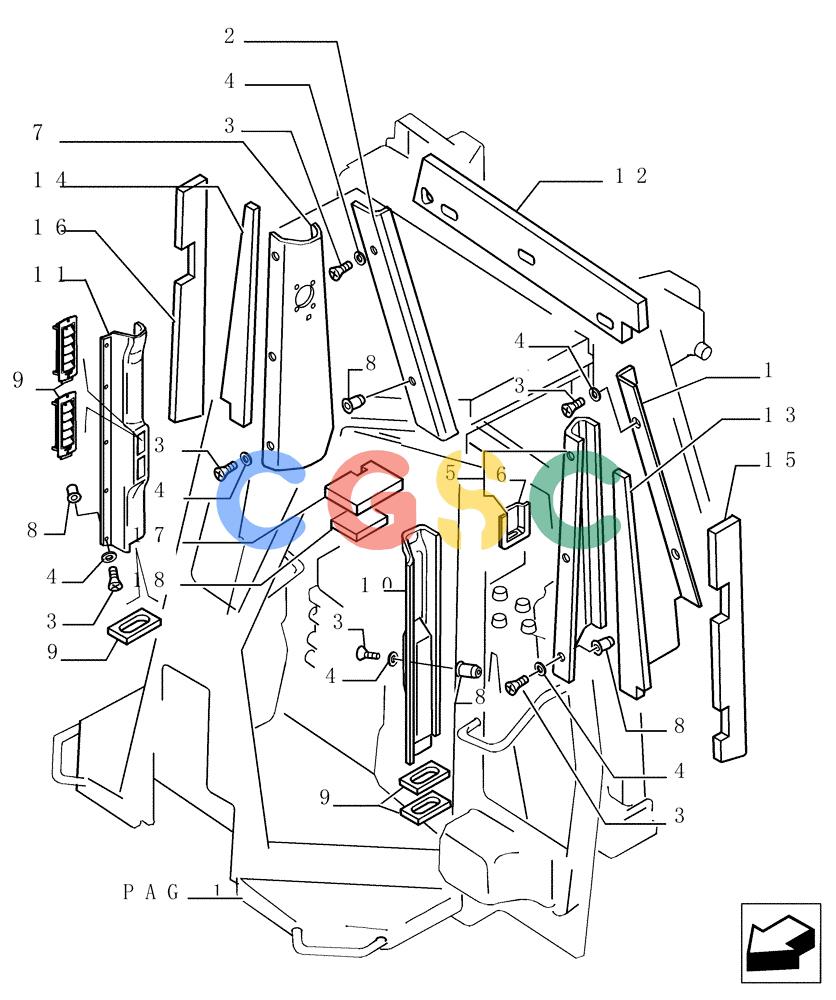

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (9.653[22]) - ROPS CAB - COVERING - OPTIONAL CODE 784110171 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067333 | [1] | SOFT TRIM | LEC- REAR LEFT |
| 2. | 76067334 | [1] | SOFT TRIM | LEC- REAR RIGHT |
| 3. | 79105220 | [35] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 4. | 76067309 | [35] | CUP WASHER | LECNylon |
| 5. | 76301147 | [1] | SOFT TRIM | LEC- LEFT ASSY |
| 6. | 76067344 | [1] | HOLDER | LEC- TELEPHON SUPPORT Superseded by part number: 76067467 |
| 7. | 76301149 | [1] | SOFT TRIM | LEC- CENTER RIGHT |
| 8. | 15629711 | [27] | THREADED INSERT | BURM6 x 9.5 |
| 9. | 87400788 | [4] | SEAL | LEC |
| 10. | 76301142 | [1] | SOFT TRIM | LEC- FRONT LEFT |
| 11. | 76301143 | [1] | SOFT TRIM | LEC- FRONT RIGHT |
| 12. | 76067501 | [1] | INSULATING PANEL | LEC- UPPER REAR |
| 13. | 76067502 | [1] | INSULATING PANEL | LEC- REAR LEFT |
| 14. | 76067503 | [1] | INSULATING PANEL | LEC- REAR RIGHT |
| 15. | 76067504 | [1] | INSULATING PANEL | LEC- CENTER LEFT |
| 16. | 76067505 | [1] | INSULATING PANEL | LEC- CENTER RIGHT |
| 17. | 76067507 | [1] | INSULATING PANEL | LEC- CENTER RIGHT |
| 18. | 76067508 | [1] | INSULATING PANEL | LEC- CENTER RIGHT |
| 19. | 76079036 | [4] | VENT | LEC |
