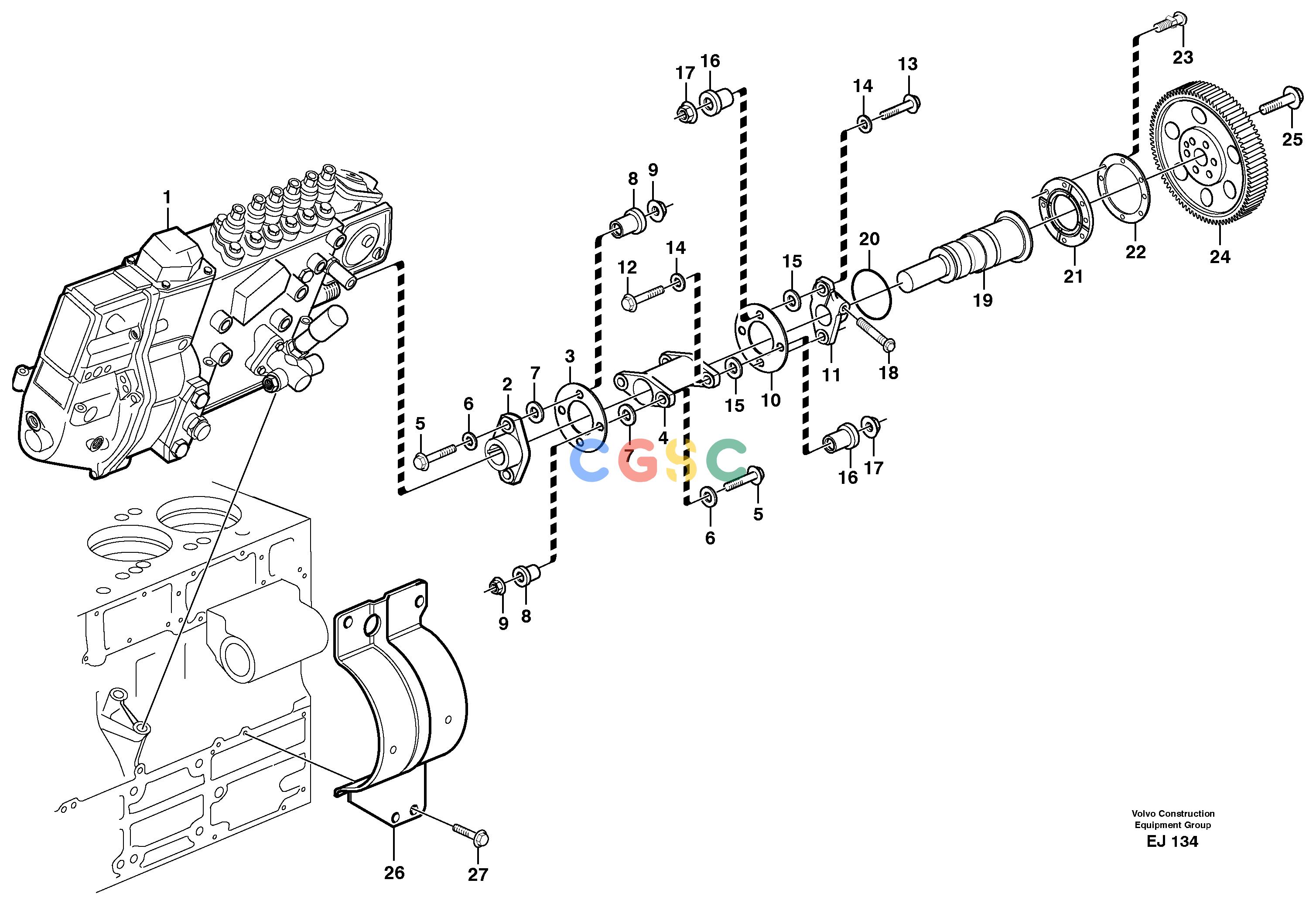

沃尔沃零件查询L330D Pump driveNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
636 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Injection pump
|
|
| 2. |
VOE1556188
|
[1] |
Companion flange
|
|
| 3. |
VOE479458
|
[4] |
Companion disc
|
|
| 4. |
VOE1556175
|
[1] |
Intmd Section
|
|
| 5. |
VOE13965185
|
[4] |
Screw
|
|
| 6. |
VOE976945
|
[4] |
Washer
|
|
| 7. |
VOE479399
|
[4] |
Washer
|
|
| 8. |
VOE478897
|
[4] |
Sleeve
|
|
| 9. |
VOE13971095
|
[4] |
Flange nut
|
|
| 10. |
VOE479458
|
[4] |
Companion disc
|
|
| 11. |
VOE1556186
|
[1] |
Companion flange
|
|
| 12. |
VOE13965185
|
[2] |
Screw
|
|
| 13. |
VOE13965220
|
[2] |
Screw
|
|
| 14. |
VOE976945
|
[4] |
Washer
|
|
| 15. |
VOE479399
|
[4] |
Washer
|
|
| 16. |
VOE478897
|
[4] |
Sleeve
|
|
| 17. |
VOE13971095
|
[4] |
Flange nut
|
|
| 18. |
VOE1556285
|
[1] |
Screw
|
|
| 19. |
VOE1638201
|
[1] |
Injection timing device
|
|
| 20. |
VOE13980236
|
[1] |
O-ring
|
|
| 21. |
VOE1556992
|
[1] |
Thrust Washer
|
|
| 22. |
VOE11999824
|
[1] |
Washer
|
|
| 23. |
VOE1556747
|
[8] |
Screw
|
|
| 24. |
VOE1556635
|
[1] |
Gear
|
|
| 25. |
VOE13975204
|
[6] |
Flange screw
|
|
| 26. |
VOE849284
|
[1] |
Protection
|
|
| 27. |
VOE13946173
|
[2] |
Screw
|
L = 20 MM
|
| |
VOE13947760
|
[2] |
Screw
|
L = 40 MM
|
