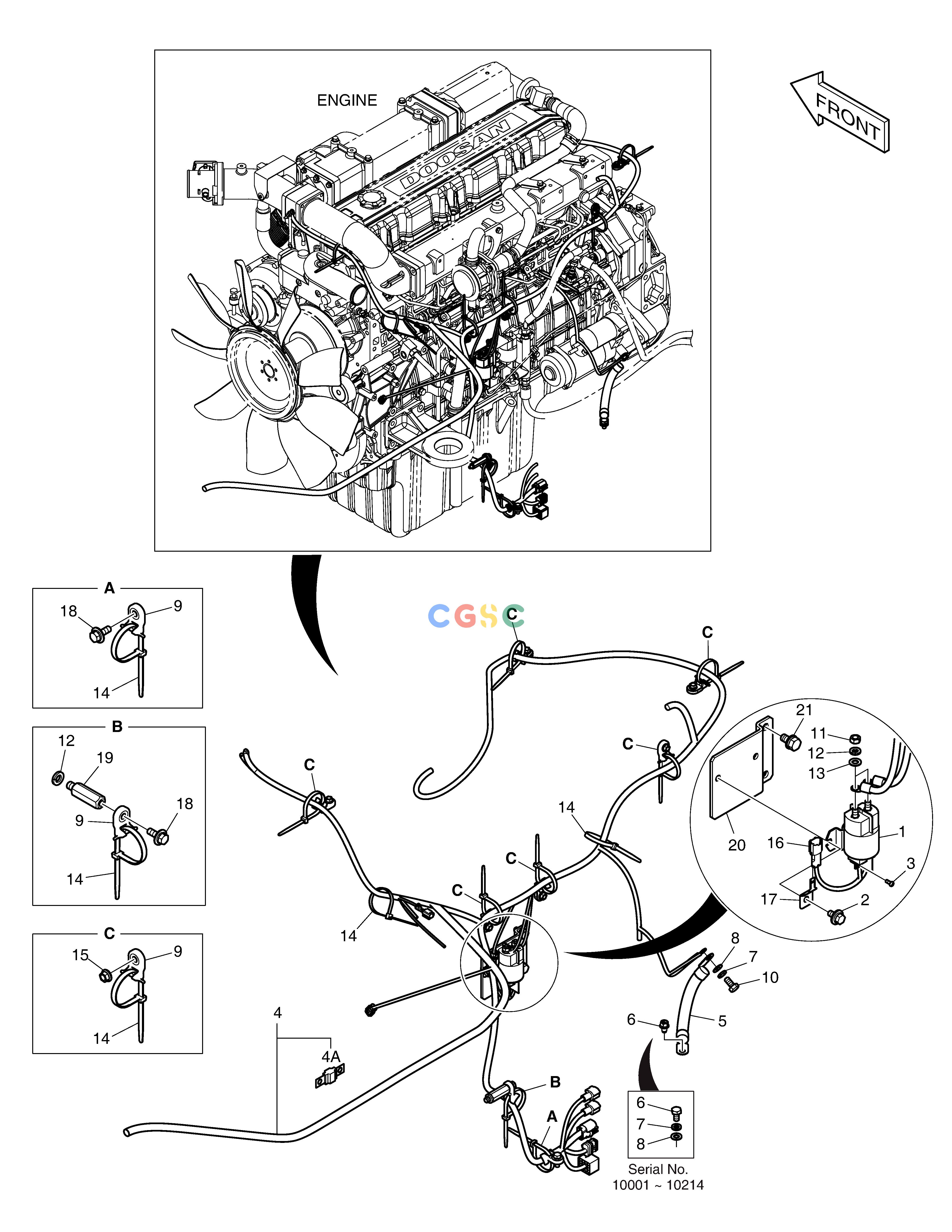

斗山零件查询ELECTRIC PARTS - ENGINE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
538 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02021
|
[-] |
|
|
| 1. |
301202-00067
|
[1] |
RELAY,PRE HEATER
|
|
| 10. |
S0511953
|
[1] |
BOLT
|
|
| 11. |
S4012533
|
[2] |
NUT
|
|
| 12. |
S5102503
|
[3] |
. WASHER
|
|
| 13. |
S5010513
|
[2] |
WASHER
|
|
| 14. |
310101-00035
|
[10] |
TIE,CABLE
|
|
| 15. |
2121-1305
|
[6] |
NUT
|
|
| 16. |
310207-01067
|
[1] |
|
|
| 17. |
2197-1661
|
[1] |
BRACKET
|
|
| 18. |
DS0025049
|
[2] |
BOLT M8x1.25x25
|
|
| 19. |
2120-2187
|
[1] |
BOLT
|
|
| 2. |
DS0025033
|
[2] |
BOLT
|
|
| 20. |
110406-02627
|
[1] |
|
|
| 21. |
DS0025042
|
[2] |
BOLT
|
|
| 3. |
S3450573
|
[2] |
SCREW
|
|
| 4. |
310207-02511A
|
[1] |
|
|
| 4. |
310207-02511B
|
[1] |
|
|
| 4A. |
300803-00086
|
[1] |
|
|
| 5. |
553-00001D2
|
[1] |
CABLE;ENGINE EARTH
|
|
| 6. |
S0511853
|
[1] |
BOLT
|
|
| 6. |
120106-00701
|
[1] |
BOLT
|
|
| 7. |
S5102603
|
[2] |
. WASHER
|
|
| 8. |
S5010613
|
[2] |
WASHER
|
|
| 9. |
110420-00330
|
[8] |
BRACKET
|
|
