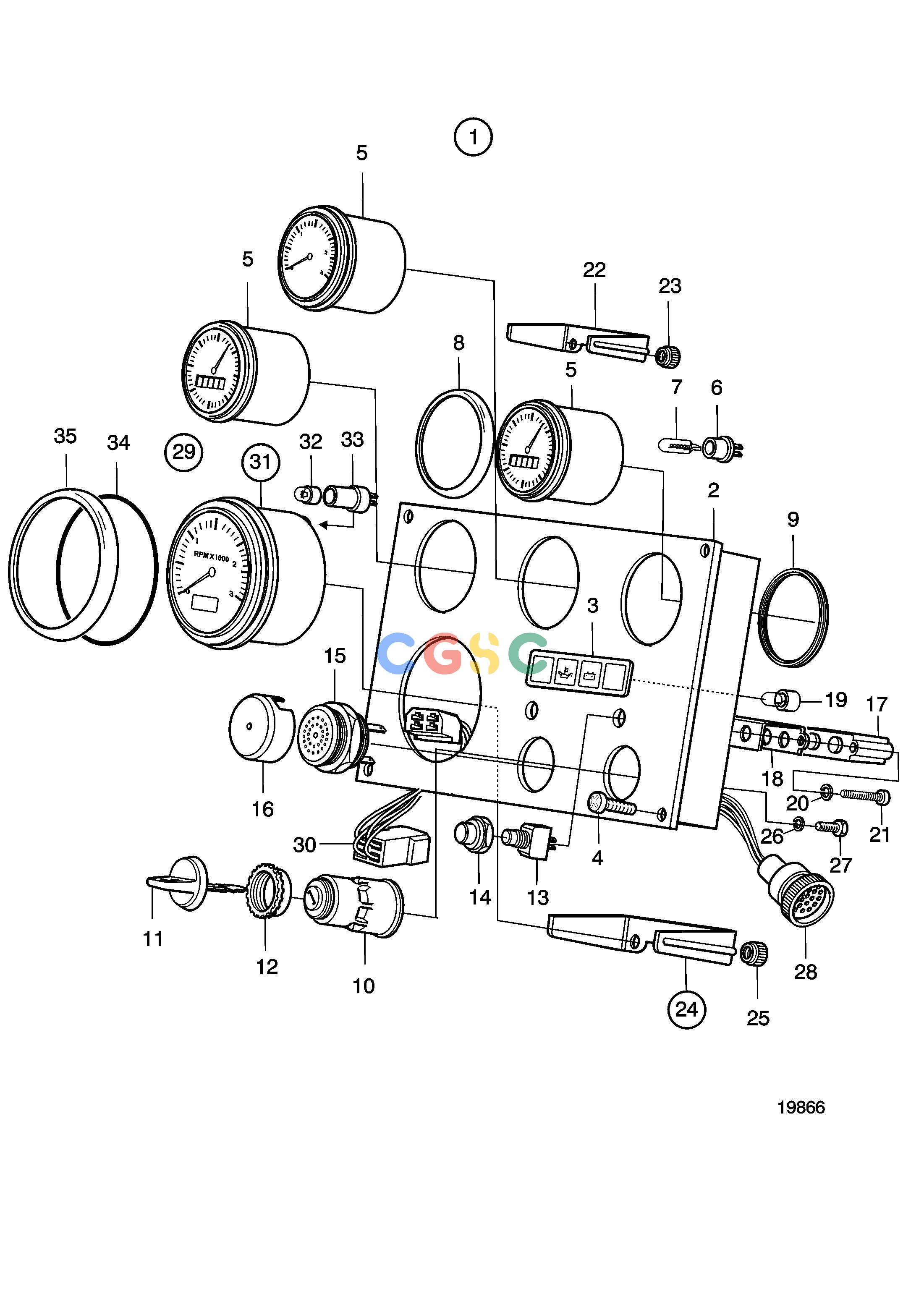

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FElectrical SystemInstrument Panel 24VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3587075
|
[1] |
Instrument panel
|
(873591)
|
| 2. |
860182
|
[1] |
Instrument panel
|
|
| 3. |
858645
|
[1] |
Symbol strip
|
|
| 4. |
828647
|
[4] |
Screw
|
|
| 5. |
873196
|
[1] |
Thermometer
|
|
| 5. |
873198
|
[1] |
Oil pressure gauge
|
|
| 5. |
873200
|
[1] |
Voltmeter
|
|
| 6. |
863945
|
[3] |
Bulb socket
|
|
| 7. |
863947
|
[3] |
Bulb
|
|
| 8. |
858643
|
[3] |
Front ring
|
D=52mm
|
| 9. |
828803
|
[3] |
Guide ring
|
|
| 10. |
3587072
|
[1] |
Starter switch
|
(864277)
|
| 11. |
859953
|
[2] |
Key
|
State key code when ordering
|
| 12. |
859955
|
[1] |
Plastic nut
|
|
| 13. |
828584
|
[1] |
Toggle switch
|
Test alarm
|
| 13. |
828585
|
[1] |
Toggle switch
|
Instr. light
|
| 14. |
828586
|
[2] |
Nut
|
|
| 15. |
828587
|
[1] |
Buzzer
|
|
| 16. |
858795
|
[1] |
Protecting casing
|
|
| 17. |
873737
|
[1] |
Electronic unit
|
(873209)
|
| 18. |
828784
|
[1] |
Reflector
|
|
| 19. |
828818
|
[4] |
Bulb
|
24V
|
| 20. |
941904
|
[2] |
Spring washer
|
|
| 21. |
941615
|
[2] |
Cross recessed screw
|
|
| 22. |
873207
|
[3] |
Brace kit
|
|
| 23. |
|
|
|
|
| 24. |
873208
|
[1] |
Brace kit
|
|
| 25. |
|
|
|
|
| 26. |
941904
|
[1] |
Spring washer
|
|
| 27. |
949947
|
[1] |
Cross recessed screw
|
|
| 28. |
828646
|
[1] |
Cable block
|
|
| 29. |
874496
|
[1] |
Tachometer kit
|
|
| 30. |
874096
|
[1] |
Cable
|
|
| 31. |
874496
|
[1] |
Tachometer kit
|
2600 rpm
|
| 32. |
863947
|
[1] |
Bulb
|
24V
|
| 33. |
863945
|
[1] |
Bulb socket
|
|
| 34. |
873232
|
[1] |
O-ring
|
|
| 34. |
883232
|
[1] |
Carton
|
|
| 35. |
873683
|
[1] |
Ring
|
|
